1. Premium Core Technology
Adopts German packaging technology, paired with Beckhoff PLC System & Siemens Motor—high-end components ensure stable, precise operation.
2. Provide Formula Technology Support
FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective HMPSA Packaging machine line, but also offers formula technical support,such as Hygiene Adhesive,Elastic Adhesive,High Viscosity Structural Adhesive,Hydrogenated Petroleum Hydrocarbon Resins Based Low Temperature Structural Adhesive,Adhesive of Complex Film,Positioning Adhesive,etc.
3. High Efficiency
Delivers 500-3000KG/H output, covering small-to-large production needs. Reduces equipment failure rate by 35% vs ordinary models.
4. Prodide Formula Support
FLEX machinery offers a range of services according to the customer's needs, including adhesive formula technical support, full-process production guidance, as well as overseas machine installation and commissioning services.
5. Precision Control & Flexible Specs
Beckhoff PLC + metering module: ±1% weight error. Switches 500g/600g/1000g specs without mold adjustments, saves 30% setup time.
6. Durable SS304 Build
Food-grade SS304 frame: corrosion-resistant & easy to clean. Blade lasts 100,000+ cuts; sealed structure cuts maintenance by 25%.
7. Wide Industry Compatibility
Fits hygiene/shoemaking/labeling industries (5000-20000 CPS viscosity). Adjustable 80-150℃ sealing temp protects adhesive properties.
| Product Parameter | ||

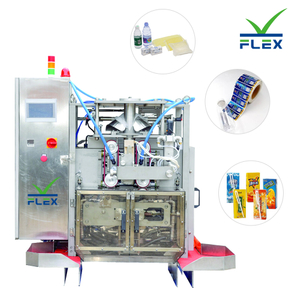

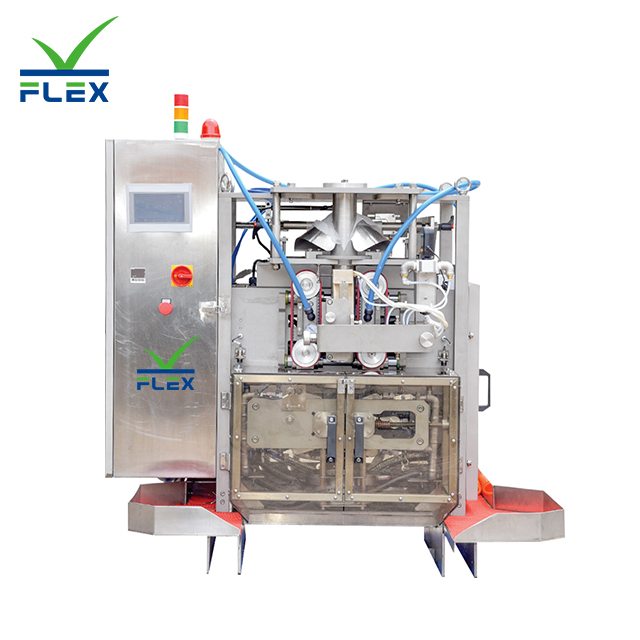

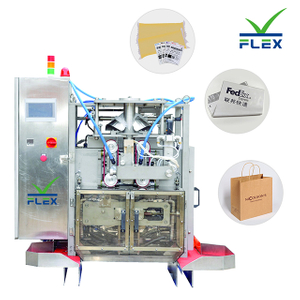

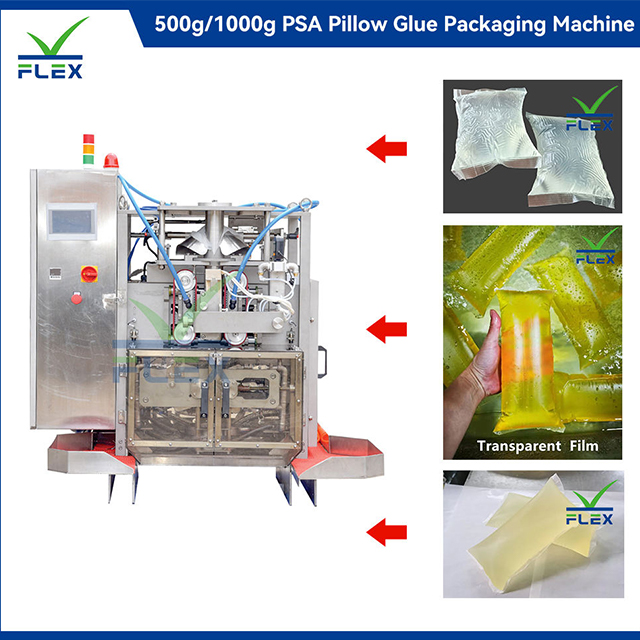

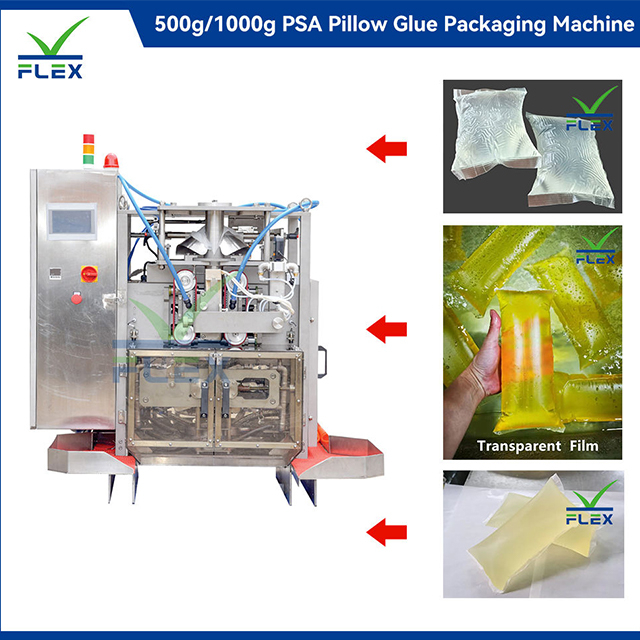

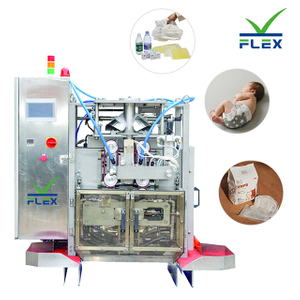

| 1 | Product name | HMPSA Machine-PLC automation PSA Packaging machine |
| 2 | Production Capacity | 1000kg/h, 2000kg/h, 3000kg/h |
| 3 | Motor Power | 15KW-18KW-22KW-37KW-45KW |
| 4 | Motor Brand | Siemens Drive Motor |
| 5 | Bearing Brand | Japan NSK |
| 6 | PSA Machine Packaging Size | 500g, 600g, 1000g |
| 7 | Machine Materiel | SS304 |
| 8 | Machine Size | 1500*1600*2200mm |

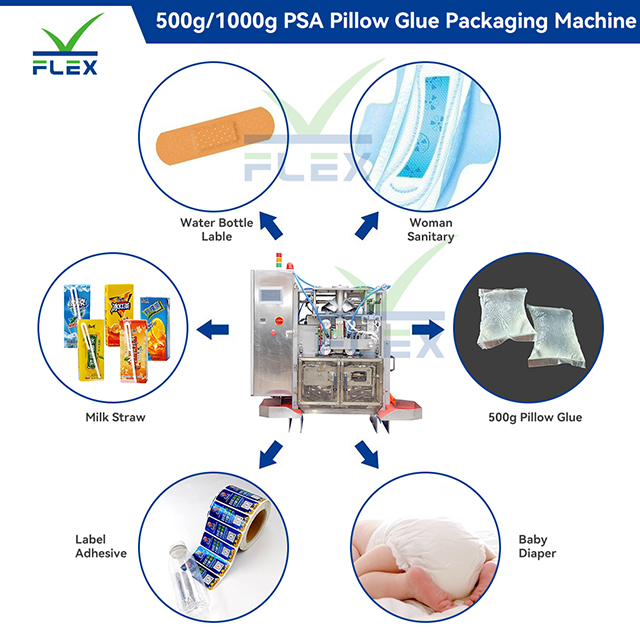

| 9 | Application | 1）Hygiene Adhesive: For baby diapers, women's sanitary pads, pet mats, etc. 2）Packaging industry: For sealing courier bags,packaging bags, and sealing tape adhesion and fixation. 3)PET water bottle label adhesive,Milk strawing adhesive, etc. 4)Elastic Adhesive:High resistance of creep deformation, high resistance of rebound resilience. |
● Hygiene Products Industry
Ideal for packaging hot melt adhesive used in diapers, sanitary napkins, and wet wipes. The sealed pillow packs preserve adhesive viscosity, matching the high-volume, standardized production needs of hygiene product. manufacturers.
● High Viscosity Structural Adhesive
Non-toxic, stable performance, strong and lasting adhesion, low adhesive consumes.
● Hydrogenated Petroleum Hydrocarbon Resins Based Low Temperature Structural Adhesive
Non-toxic, Low operation temperature, strong and lasting adhesion, white color, almost odorless, non-fluorescence.
● Hydrogenated Petroleum Hydrocarbon Resins based Structural Adhesive
Non-toxic, odor free, non-fluorescence, good carbonized resistance, high stability.
● Adhesive of Complex Film
Non-toxic, the unique formula makes the bond strength between non-woven cloth and breathable film maintain in good condition instead of losing bond strength as time goes by.
● Positioning Adhesive
Non-toxic, high weather resistance, high transfer resistance, maintain proper adhesive strength, high stability performance.
● Elastic Adhesive
Non-toxic, high resistance of creep deformation, high resistance of rebound resilience.
● Absorptive Core Adhesive
Non-toxic, almost odorless, excellent wet-strengthened grade, highly ensures the stability of absorptive core and prevents it from splitting into layers.
Low Apply Temperature Adhesive for Carton Sealing
Apply at low temperature, energy-saving and cost-reducing
Base Material | Color | Soft Point | Viscosity | Suggest Apply Temperature |
EVA | Yellow, White | 75–90℃ | 700–1800cps/130℃ | 125–145℃ |
General Adhesive for Carton Sealing
Strong adhesion, high weather resistance, fit for packaging lines with different speeds
Base Material | Color | Soft Point | Viscosity | Suggest Apply Temperature |
EVA, PO, SBC | Yellow, White | 80–120℃ | 1000–2500cps/160℃ | 150–175℃ |
High Temperature Resistance Adhesive for Carton Sealing
High temperature resistance under 75℃, fit for both high and low packaging speed
Base Material | Color | Soft Point | Viscosity | Suggest Apply Temperature |
EVA, PO | Yellow, White | 100–120℃ | 1500–3000cps/160℃ | 160–175℃ |

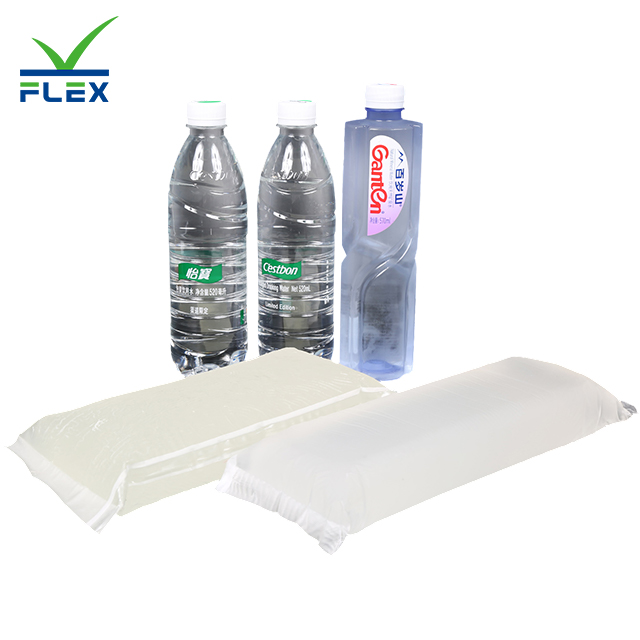

Adhesive for Bottle Label
Great initial adhesion, strong adhesion, satisfy high processing speed as 60,000 bottles per hour
Base Material | Color | Soft Point | Viscosity | Suggest Apply Temperature |
EVA, PO, SBC | Yellow, White | 65–95℃ | 500–1500cps/160℃ | 125–145℃ |
Adhesive for Straw Positioning on Package
Strong adhesion, satisfy high processing speed as 30,000 packages per hour
Base Material | Color | Soft Point | Viscosity | Suggest Apply Temperature |
EVA, PO, SBC | Yellow, White | 80–105℃ | 500–2000cps/160℃ | 135–160℃ |
Adhesive for Cap Positioning on Package
Strong adhesion, satisfy high processing speed as 20,000 packages per hour
Base Material | Color | Soft Point | Viscosity | Suggest Apply Temperature |
SBC, PO | White | 95–110℃ | 4000–20000cps/160℃ | 135–160℃ |

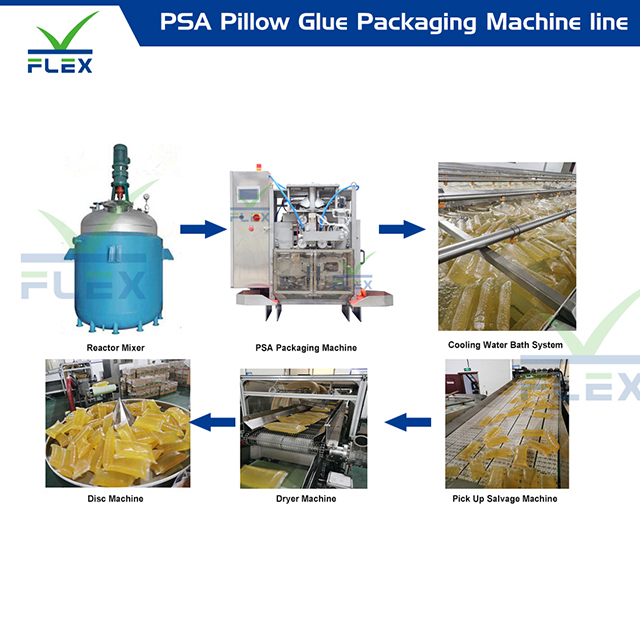

PSA Pillow-Style Hot Melt Adhesive Packaging Machine - Operation Guide
● Preparation Stage
Confirm stable power and air supply connection, then turn on the main switch. Load 500g/600g/1000g packaging film as required and secure it to the film holder. Add hot melt adhesive raw materials to the feeding hopper. Download the detailed operation PDF manual for standard parameter values and safety precautions.
● Parameter Setting
StageNavigate the Beckhoff PLC panel to select the target packaging weight. Adjust sealing temperature (80–150℃) and running speed based on adhesive viscosity. Save the configured parameters for one-click reuse in subsequent production runs.
● Operation & Shutdown Stage
Press the start button to initiate automatic packaging (forming, sealing, cutting). During operation, check package integrity periodically. After production, press stop, cut off power and air supply, then clean residual adhesive with the dedicated tool in the accessory kit.
Q: In addition to equipment supply, does your factory provide other services?
A: FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective machines, but also offers a range of services according to the customer's needs, including adhesive formula technical support, full-process production guidance, as well as overseas machine installation and commissioning services.
Q: What is the weight error range of the machine?
A: The machine has a weight error rate of less than ±1% thanks to its Beckhoff PLC control system and high-precision metering module, ensuring consistent package weights for 500g, 600g, and 1000g specs.
Q: Does the machine support overseas installation and commissioning?
A: Yes, we provide full overseas services including on-site installation, commissioning, and operation training. We also offer adhesive formula guidance to ensure smooth production startup.
Q: In addition to equipment supply, does your factory provide other services?
A: FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective machines, but also offers a range of services according to the customer's needs, including adhesive formula technical support, full-process production guidance, as well as overseas machine installation and commissioning services.
Q: How long is the service life of the cutting tool?
A: The wear-resistant cutting blade has a service life of over 100,000 cuts. The SS304 stainless steel structure reduces maintenance frequency by 25% and extends overall equipment lifespan.
Q: What industries is this machine suitable for?
A: It is widely applicable to hygiene products, shoemaking, label & tape, woodworking, and automotive interior industries, adapting to adhesive viscosities from 5000 to 20000 CPS.
 |  |  |  |
 |  |  |  |
|
