1. High-precision PLC intelligent control system
Adopts advanced Beckhoff PLC System with touch screen control, realizing fully automatic operation of feeding, forming, sealing, cutting and coding. With stable running performance, the error rate is controlled below 0.3%. It supports fast parameter switching for different sizes of HMPSA blocks, greatly improving production efficiency and reducing manual operation.
2. German packaging technology & Siemens Motor
Integrates German packaging technology and Siemens Motor for stable power output and long service life. The core components ensure consistent performance, low maintenance, and reliable operation even under high-intensity production conditions, meeting the strict demands of the adhesive industry.
3. Provide Formula Technology Support
FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective HMPSA Packaging machine line, but also offers formula technical support,such as Hygiene Adhesive,Elastic Adhesive,High Viscosity Structural Adhesive,Hydrogenated Petroleum Hydrocarbon Resins Based Low Temperature Structural Adhesive,Adhesive of Complex Film,Positioning Adhesive,etc.
4. Stable and reliable constant temperature sealing system
Equipped with independent PID temperature control module, temperature control accuracy reaches ±0.1℃. It ensures firm, flat and beautiful sealing for hot melt adhesive products. The sealing failure rate is less than 0.1%, effectively avoiding package breakage, glue leakage and contamination during packaging and transportation.
5. High-speed and efficient automatic production
This automatic HMPSA pillow packaging machine can reach a working speed of 500KG/H–3000KG/H according to product size. It can run continuously for more than 24 hours, greatly improving production capacity. Compared with traditional packaging methods, it saves more than 60% labor cost and reduces overall production cost.
| Product Parameter | ||

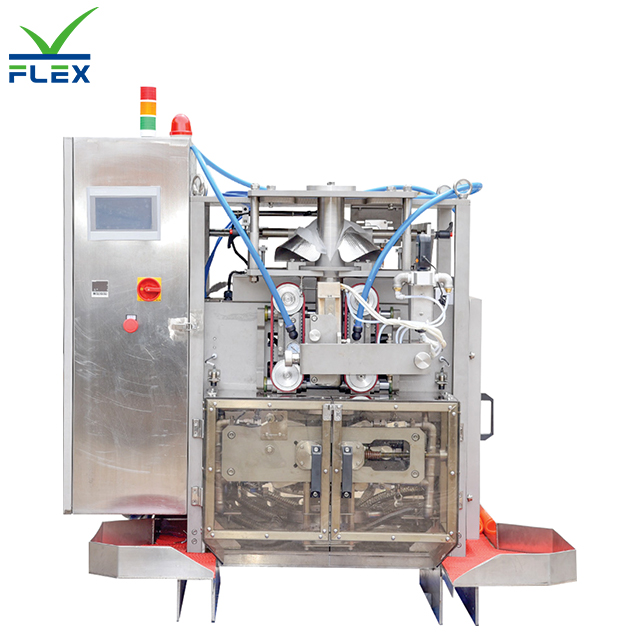

| 1 | Product name | HMPSA Machine-PLC automation PSA Packaging machine |
| 2 | Production Capacity | 1000kg/h, 2000kg/h, 3000kg/h |
| 3 | Motor Power | 15KW-18KW-22KW-37KW-45KW |
| 4 | Motor Brand | Siemens Drive Motor |
| 5 | Bearing Brand | Japan NSK |
| 6 | PSA Machine Packaging Size | 500g, 600g, 1000g |
| 7 | Machine Materiel | SS304 |
| 8 | Machine Size | 1500*1600*2200mm |
| 9 | HMPS Pillow Glue Application | 1) Hygiene Adhesive: For baby diapers, women's sanitary pads, petmats, etc. 2) Packaging industry: For sealing courier bags,packaging bags, andsealing tape adhesion and fixation. 3)PET water bottle label adhesive,Milk strawing adhesive, etc. 4)Elastic Adhesive: High resistance of creep deformation, highresistance of rebound resilience. |

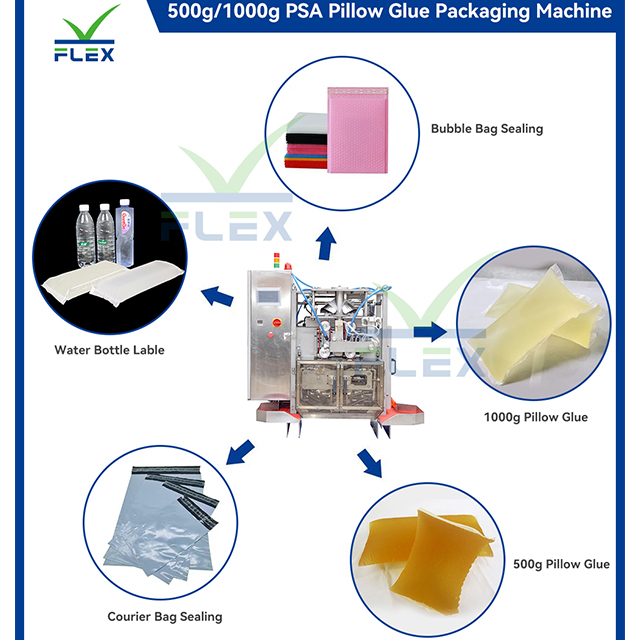

1. Hygiene Adhesive Packaging
This machine is specially designed for packaging hygiene adhesives used in baby diapers, women’s sanitary pads, and pet mats. It ensures clean, secure packaging that maintains adhesive performance and meets strict hygiene standards for personal care products. The stable sealing and precise control prevent contamination, ensuring the safety and comfort of end-users.
2. Label & Food Contact Adhesives
The machine packages PET water bottle label adhesives and milk straw adhesives. Constructed from food-grade SS304 stainless steel, it meets safety requirements for food-contact applications while preserving adhesive functionality. The machine’s precision ensures consistent packaging, supporting reliable label adhesion and safe food contact.
3. Elastic Adhesive Packaging
It handles elastic adhesives with high creep deformation resistance and rebound resilience. The machine’s robust design and precise control ensure consistent packaging, supporting durable performance in demanding industrial applications. It maintains the adhesive’s elasticity and structural integrity, even under repeated stress and environmental changes.
4. Packaging Industry Adhesives
It efficiently packages adhesives for courier bags, packaging bags, and sealing tape. The machine’s stable sealing and precise control prevent leakage, ensuring reliable adhesion and fixation for logistics and packaging applications. It supports high-volume production, meeting the demands of fast-paced logistics and e-commerce packaging.
Step 1: Pre-Operation Preparation
Check the main power supply, air compressor, and material feeding system to ensure they are stable and free from leaks.
Confirm the Beckhoff PLC system is fully initialized, and verify that the Siemens drive motor runs smoothly without abnormal noise.
Load the HMPSA blocks into the feeding hopper, ensuring they are aligned and free from damage to avoid jams.
Input the packaging specifications (e.g., 500g, 600g, 1000g) into the touchscreen to match the product requirements.
Step 2: Parameter Setup & Calibration
Set the target production capacity (1000kg/h, 2000kg/h, or 3000kg/h) and sealing temperature on the PLC control panel, based on the adhesive type.
Calibrate the feeding speed, cutting length, and sealing pressure to ensure consistent packaging dimensions and seal integrity.
Run a short test cycle to check for proper alignment, seal quality, and material flow, adjusting parameters as needed.
Step 3: Automatic Production Operation
Press the "Start" button on the touchscreen to initiate the fully automatic production process.
Monitor the machine in real time via the PLC interface, checking for stable sealing, no leakage, and consistent output.
In case of an emergency, immediately press the dedicated emergency stop button to halt all operations safely.
Step 4: Post-Production & Maintenance
After production stops, power down the system in the correct sequence and disconnect the air supply.
Thoroughly clean all SS304 stainless steel contact surfaces, feeding channels, and sealing jaws to remove adhesive residue.
Perform routine maintenance, such as lubricating Japan NSK bearings and inspecting electrical connections, to ensure long-term reliability.
Store the packaged HMPSA blocks in a cool, dry environment to preserve their performance and quality.
1. What industries is this machine suitable for?
It is specially designed for hot melt pressure-sensitive adhesives (HMPSA), widely used in hygiene products, elastic adhesives, food contact label adhesives, and packaging industry adhesives. Stable and compatible with multiple formulations.
2. What is the packaging speed and capacity?
Packaging speed is 30–120 packs per minute, with a processing capacity of 500–3000 kg/h. It supports 24-hour continuous automatic production, greatly improving efficiency and saving labor costs.
3. How about the temperature control accuracy?
Equipped with an independent PID temperature control system, the accuracy reaches ±0.1℃. It ensures firm and beautiful sealing, with a failure rate below 0.1%, avoiding glue leakage or package breakage.
4. Is operation difficult? Do you provide training?
The machine adopts PLC touch screen control, easy to operate. We provide detailed operation manuals, video tutorials and on-site commissioning training to help your staff master quickly.
5. Do you offer after-sales and technical support?
We provide 12-month warranty, lifelong maintenance, and 24-hour online support. We also offer adhesive formula guidance to help you optimize production and improve product quality.
 |  |  |  |
 |  |  |  |
