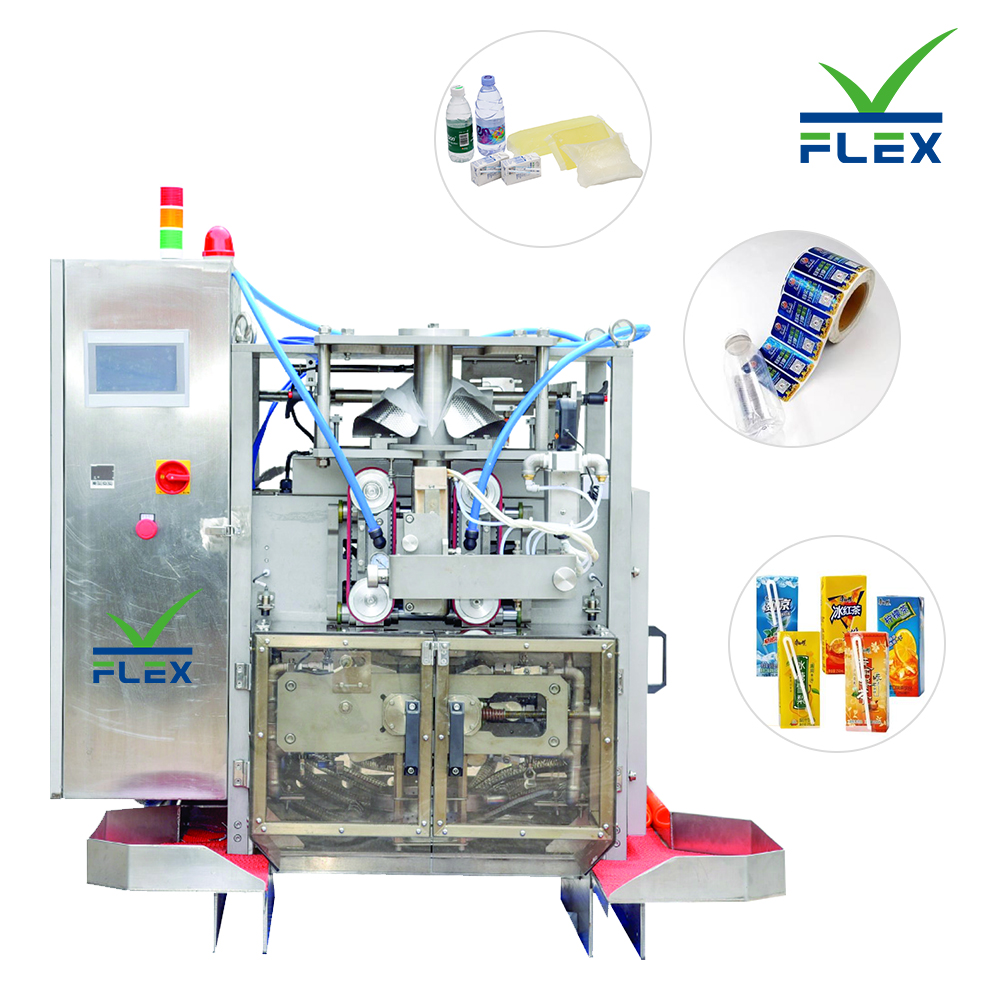

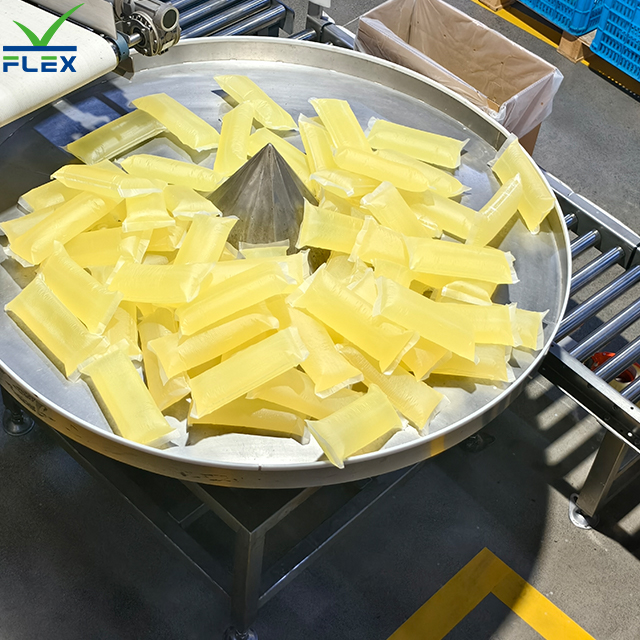

HMPSA Pillow Shape Hot Melt Adhesive Machine Line
1. German Core Technology & High-Efficiency Production
Adopting advanced German packaging technology and Beckhoff PLC control system, the production line achieves a stable output range of 500kg/h-3000kg/h. It supports 720+ hours of continuous operation, boosting production efficiency by over 35% compared with traditional equipment, perfectly meeting large-scale, high-standard production demands.
2. End-to-End Formula Technology Support
FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective HMPSA Packaging machine line, but also offers formula technical support, such as Hygiene Adhesive, Elastic Adhesive, High Viscosity Structural Adhesive, Hydrogenated Petroleum Hydrocarbon Resins Based Low Temperature Structural Adhesive, Adhesive of Complex Film, Positioning Adhesive, etc. Our professional team provides customized formula adjustment to help customers reduce R&D costs and accelerate production launch.
3. Precise Temperature & Metering Control for Stable Quality
Equipped with a multi-point precise temperature control system with ±1℃ accuracy, it ensures uniform heating and avoids adhesive degradation. The servo-driven metering system controls error within ±0.5%, guaranteeing consistent performance of each batch of HMPSA and strict compliance with international quality standards.
4. Energy-Saving Design & Low Operating Cost
The optimized thermal insulation structure and high-efficiency heating system reduce energy consumption by more than 20% vs. conventional equipment. The rational pipeline layout minimizes material residue and waste, effectively lowering production costs and improving overall economic benefits for enterprises. 5. Modular Structure & Easy MaintenanceThe main body is made of corrosion-resistant stainless steel and wear-resistant alloy, with a service life of over 10 years. The modular design simplifies daily maintenance and cleaning, reducing downtime by 40% and ensuring long-term stable operation of the entire production line.
| Technical Parameters and Structure | ||

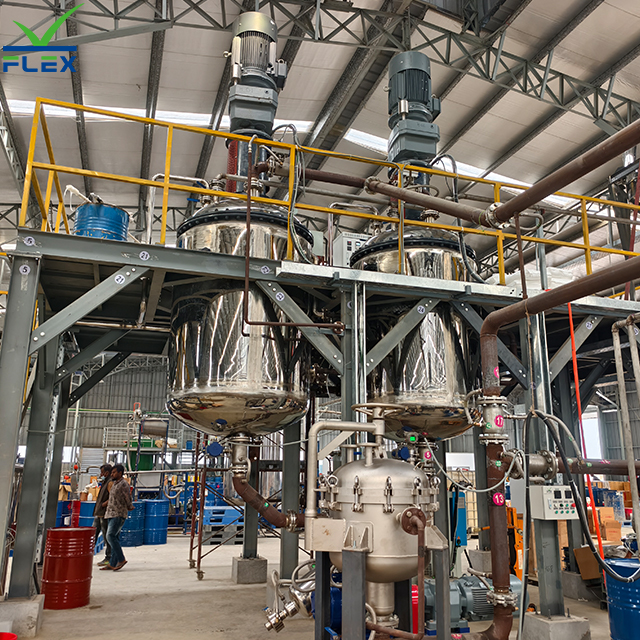

| 1 | Product name | Reactor / Mixer / Hot Melt Adhesive Mixer |
| 2 | Production Capacity | 1000kg/batch; 2000kg/batch; 3000kg/batch |
| 3 | Motor Power | 15KW–18KW–22KW–37KW–45KW–75KW |
| 4 | Motor Brand | Siemens Drive Motor |
| 5 | Bearing Brand | Japan NSK |
| 6 | PSA Machine Packaging Size | 500g, 600g, 1000g |
| 7 | Machine Material | SS304 |
| 8 | Application | 1) Hygiene Adhesive: For baby diapers, women’s sanitary pads, pet mats, etc. 2) Packaging industry: For sealing courier bags, packaging bags, and sealing tape adhesion and fixation. 3) PET water bottle label adhesive, Milk strawing adhesive, etc. 4) Elastic Adhesive: High resistance of creep deformation, high resistance of rebound resilience. |
1.Hygiene Products Industry
This equipment is widely used in the production of hygiene adhesives for baby diapers, women's sanitary pads, pet mats and other disposable hygiene products. It ensures the adhesive has excellent initial tack and peel strength, meeting the high-standard bonding requirements of hygiene products.
2. Packaging & Labeling Industry

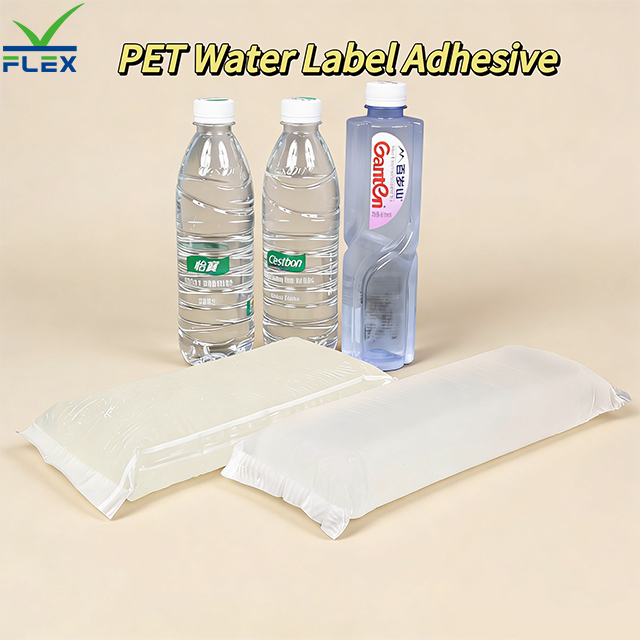

It is suitable for manufacturing packaging sealing adhesives and label adhesives, used for sealing courier bags, packaging bags, and bonding PET water bottle labels, milk straws, etc. The produced adhesive features fast curing and strong sealing, ensuring packaging safety and label firmness.
3. Elastic Adhesive Production
The machine is dedicated to producing high-performance elastic adhesives with high creep deformation resistance and excellent rebound resilience. It is widely applied in elastic bonding scenarios such as clothing elastic bands, medical elastic bandages, and elastic non-woven fabrics.
4. Structural Adhesive Manufacturing
It supports the production of high-viscosity structural adhesives and low-temperature structural adhesives based on hydrogenated petroleum hydrocarbon resins, suitable for composite film bonding, structural bonding of building materials, and other industrial bonding scenarios requiring high strength and low temperature resistance.
Operation Guide for HMPSA Pillow Shape Hot Melt Adhesive Machine Mixer
Pre-operation Check
Inspect the SS304 tank, Siemens motor, NSK bearings and sealing system. Confirm raw material supply, power/air supply are normal, and set temperature, metering and packaging parameters via Beckhoff PLC.
Production Operation

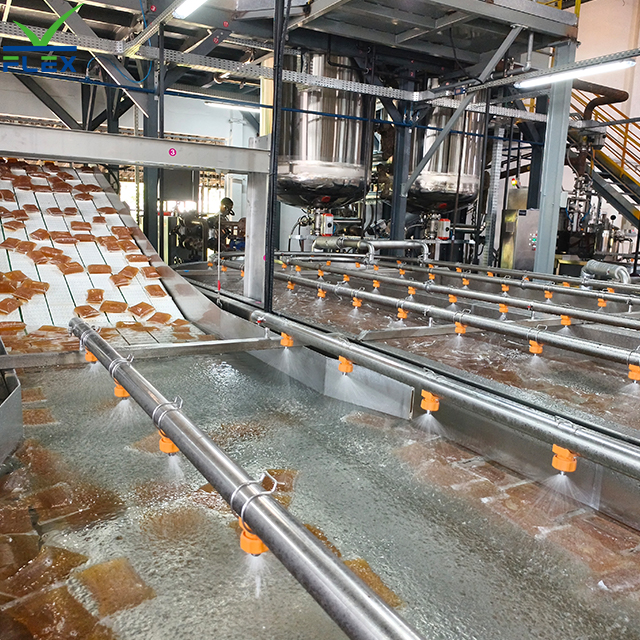

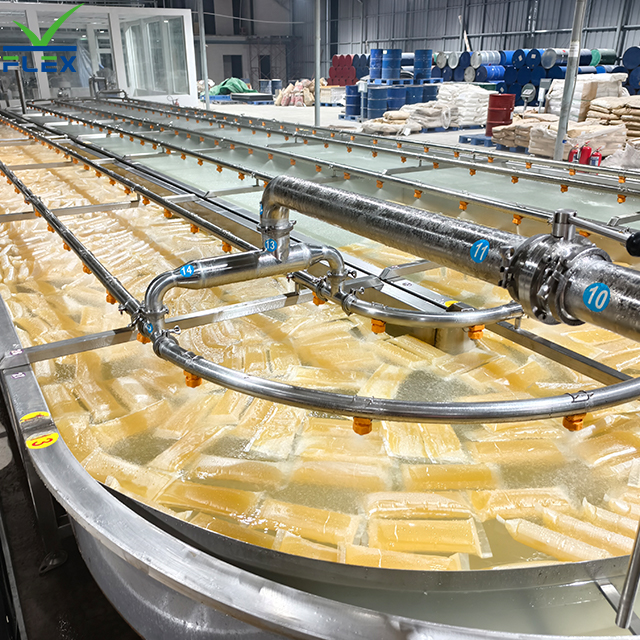

Feed raw materials in sequence, start heating and stirring. After the glue reaches the process standard, activate the automatic metering and pillow packaging system to start continuous production.
Post-operation Maintenance
After production, clean the tank and pipeline thoroughly. Shut down the system in sequence, conduct daily inspection and record operating data to ensure stable performance for the next batch.
Q1: What is the production capacity of your machine?
A: Our machine supports customized batch capacities of 1000kg, 2000kg, and 3000kg per batch, with a continuous output range of 500kg/h-3000kg/h, fully meeting small-batch trial production and large-scale mass production needs.
Q2: Can you provide formula technology support?
A: Yes, FLEX Machinery offers mature formula support for hygiene adhesive, elastic adhesive, structural adhesive, etc. Our professional team provides customized formula adjustment and process guidance to help you reduce R&D costs.
Q3: What core components are used in the equipment?
A: We adopt Siemens drive motors, Japan NSK bearings, Beckhoff PLC system, and SS304 stainless steel body, ensuring stable operation, long service life, and compliance with international quality standards.
Q4: Is the machine easy to operate and maintain?
A: Equipped with an intelligent PLC control system, the machine features a user-friendly interface for simple operation. Its modular design simplifies daily maintenance, reducing downtime and lowering your operating costs.
Q5: Can the packaging size be customized?
A: Yes, the machine supports flexible adjustment of packaging sizes, including standard 500g, 600g, 1000g, and can be customized to other specifications according to your product requirements.
 |  |  |  |
 |  |  |  |
