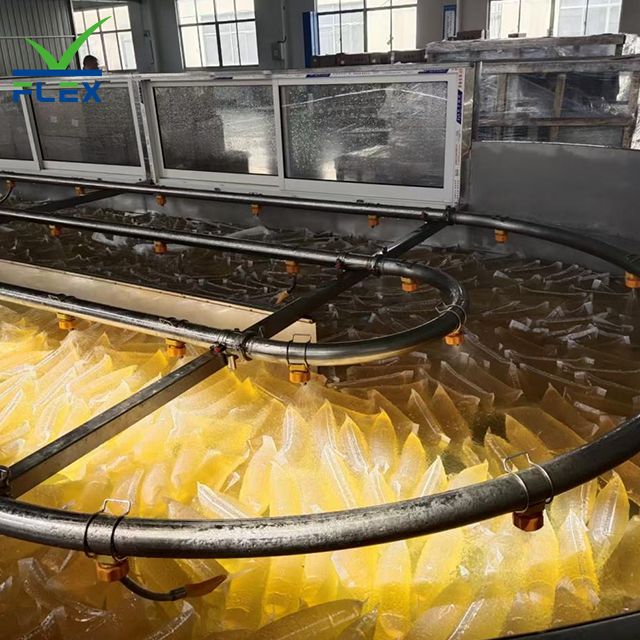

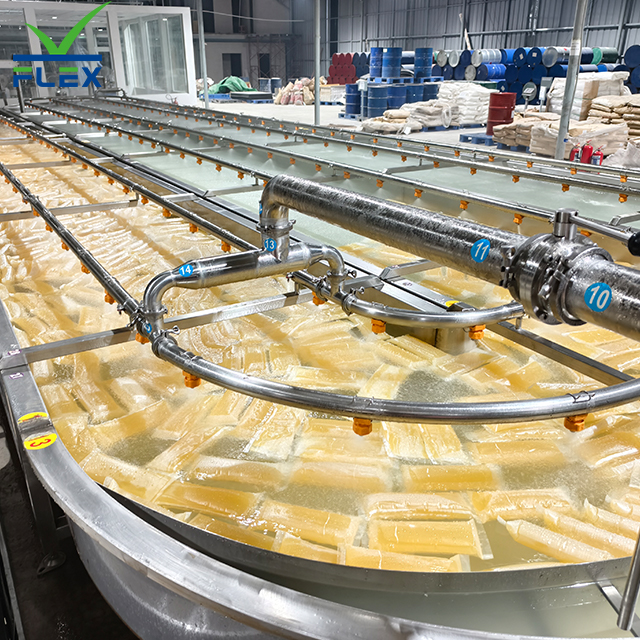

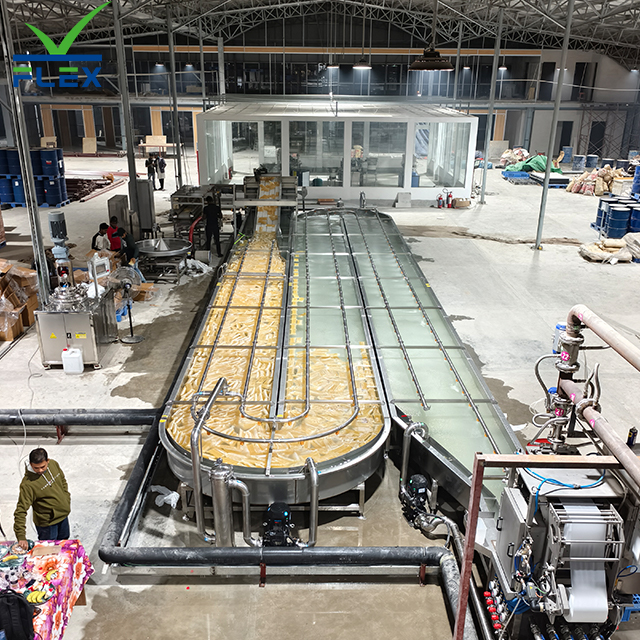

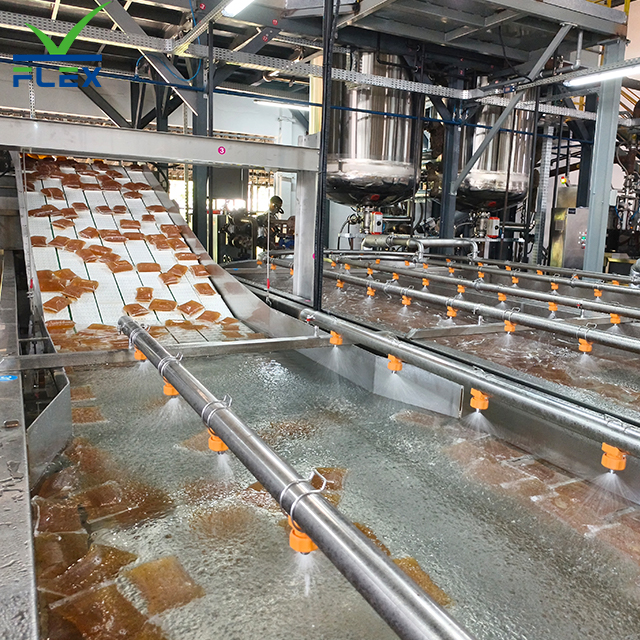

● High-precision Closed-loop Circulating Water Cooling System
With an intelligent closed-loop circulating water system, the equipment achieves ±0.5℃ temperature control accuracy for uniform HMPSA product cooling. It cuts water consumption by 60% versus open systems, slashing operational costs. The design avoids product hardness inconsistency and deformation caused by temperature fluctuations, stabilizing adhesive physical and chemical properties.
● Provide Formula Technology Support
FLEX Machinery Co., Ltd. supplies customers with high-quality, cost-effective HMPSA packaging machine lines, and also offers professional formula technical support. The support covers diverse adhesive types including hygiene adhesive, elastic adhesive, high viscosity structural adhesive, hydrogenated petroleum hydrocarbon resins based low temperature structural adhesive, complex film adhesive and positioning adhesive.
● 304 Stainless Steel Structure for Long Service Life
The tank and internal parts adopt 304 stainless steel for superior corrosion and high-temperature resistance. It supports 24-hour continuous operation in harsh environments, with an 8+ year service life—30% longer than ordinary carbon steel equipment. Its smooth inner wall is easy to clean and maintain, meeting industry safety standards and reducing maintenance frequency.
● Customizable Speed Matching for Versatile Production
Stepless speed regulation fits 5–20m/min production lines, adapting to pillow-shaped HMPSA products of different specs. The modular connection design enables quick docking with existing lines without workshop reconstruction, shortening installation and commissioning to 3 working days. It helps enterprises expand product categories and boost line utilization.
● Efficient Shaping to Reduce Product Defect Rate
Equipped with a multi-stage gradient cooling zone, it cools products gradually from 120℃ to room temperature, avoiding thermal shock damage. Optimized water flow ensures synchronous cooling of all product parts, cutting defect rate to below 0.3%. The stable shaping effect enhances adhesive bonding strength and tensile performance, boosting market competitiveness.
● Energy-saving & Environmentally Friendly Operation Design
The intelligent energy-saving control system adjusts pump power and cooling capacity based on production load, saving 25% energy versus traditional equipment. It has zero wastewater discharge, complying with national environmental standards. With noise ≤ 60dB, it improves workshop environment and reduces operators’ occupational health risks.
| Product Parameter | ||
| No. | Item | Specification |
| 1 | Name | HMPSA Machine Line-Cooling Water Batch |
| 2 | Capacity | 50 m³/60 m³/80 m³/90 m³/100 m³ |
| 3 | Material | Stainless Steel SS-304 |
| 4 | Water Temperature | 10°C-15°C |
| 5 | Length | 1100 MM |

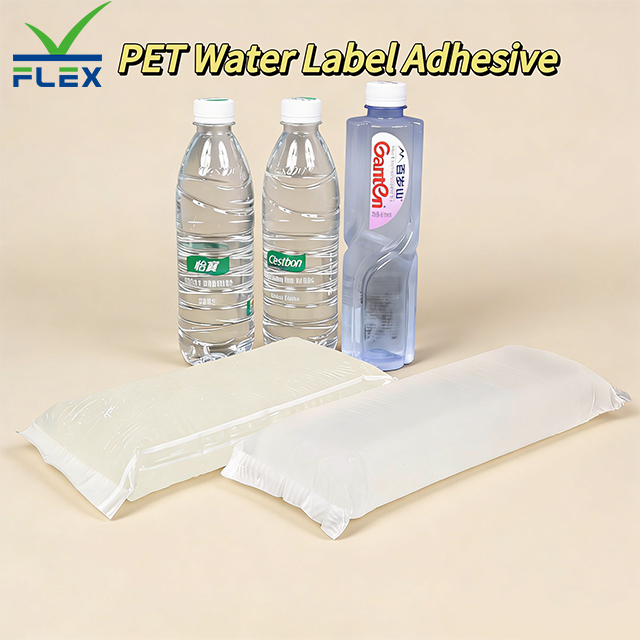

| 6 | Application | For baby diapers, women's sanitary pads, pet mats, PET water bottle label adhesive, Milk strawing adhesive, etc. |
1. Hygiene Products Industry
Suitable for PSA hot melt adhesive production of diapers, sanitary napkins, etc. It precisely cools pillow-shaped adhesive granules to ensure stable viscosity, meeting strict requirements for safety and consistency of adhesives in hygiene products, and adapting to high-speed production line rhythms.
2. Packaging and Printing Industry
Used for cooling and shaping pressure-sensitive adhesives for food, daily chemical packaging, such as composite films, carton sealing adhesives, label adhesives. The closed-loop cooling system avoids granule deformation, improving packaging adhesion and appearance regularity.
3. Construction and Building Materials Field
Adapts to high-viscosity PSA hot melt adhesive production for door and window sealing, waterproofing membranes. Gradient cooling technology retains weather resistance of adhesives, meets needs of different granule specifications, and ensures long-term stability of building materials.
4. Electronic and Electrical Industry
Applied to cooling low-temperature PSA hot melt adhesives for electronic component fixing and circuit board packaging. Precise temperature control prevents performance degradation, meeting requirements for purity and dimensional accuracy of adhesives in precision electronic devices.
5. Automotive Interior Field
Serves PSA hot melt adhesive production for automotive interior bonding. 304 stainless steel ensures adhesive cleanliness, and stable cooling enhances aging resistance, adapting to high-temperature and wear-resistant requirements of the automotive industry.
PSA Pillow-shaped Hot Melt Adhesive Cooling Water Tank Operation Guide:
1. Pre-Startup Inspection
Check if the closed-loop water system is full and leak-free, ensure 304 stainless steel tank is clean. Confirm power supply and wiring are normal, and the intelligent control panel displays no faults before starting.
2. Startup Operation
Set the target temperature (25-120℃) on the control panel, start the circulating water pump. Wait for the system to reach stable temperature (±0.5℃) before connecting to the HMPSA production line.
3. Operation Monitoring
During operation, monitor temperature, water flow and noise (≤60dB). If deviations occur, adjust via the intelligent panel. Observe adhesive granule shaping, and adapt to line speed (5-20m/min) timely.
4. Shutdown Process
Stop feeding first, keep the water system running until temperature drops to room temperature. Turn off the pump and power, clean the tank inner wall to extend service life.
1. Q: Why is the temperature control accuracy unstable?
A: Check if the closed-loop water flow is smooth and the temperature sensor is clean. Blockage or contamination may cause deviations. Adjust pump power via the panel and ensure no water leakage.
2. Q: How often should the equipment be maintained?
A: Clean the 304 stainless steel tank weekly. Replace circulating water monthly and inspect seals quarterly. Regular maintenance extends service life and ensures stable operation.
3. Q: Can it adapt to different production line speeds?
A: Yes. It supports stepless speed regulation for 5-20m/min lines. Adjust cooling capacity via the intelligent panel to match speed changes and maintain shaping effect.
4. Q: What to do if the operation noise exceeds 60dB?
A: Abnormal noise is usually from pump wear or pipe vibration. Stop the machine to check pump parts and fasten pipelines. Replace worn parts promptly to avoid further damage.
 |  |  |  |
 |  |  |  |
  |
