In high-volume mattress manufacturing, transitioning to Pressure Sensitive Adhesives (PSAs) improves bond line flexibility and reduces VOC emissions. However, this transition introduces critical processing challenges regarding thermal degradation. Standard melting equipment often causes localized overheating. This compromises the essential tackifying resins found in PSA blocks. A specialized jacketed reactor is strictly required. It maintains the precise thermal equilibrium necessary for foam-to-foam and foam-to-fabric bonding. Handling these adhesives improperly destroys the polymer structure. This guide breaks down the engineering criteria, operational risks, and selection frameworks. You will learn exactly how to integrate a robust reactor into a mattress adhesive processing line. We explore everything from fluid dynamics to pump configuration. Implementing these systems ensures your production runs smoothly. It also guarantees your final product meets stringent quality standards.
 |  |
Thermal Consistency: Jacketed reactors prevent the charring and viscosity breakdowns common in standard melters, ensuring the PSA retains its high initial tack and creep resistance.
Bonding Quality: Proper adhesive processing eliminates the "crackle" noise and rigid glue lines that degrade the end-user sleep experience in memory foam and hybrid mattresses.
Throughput Scalability: Evaluating reactor capacity must align with application methods (spray vs. slot-die) and peak production line speeds.
Risk Mitigation: Implementation requires strict attention to agitator design, pump integration, and thermal fluid selection to avoid costly line downtime.
Direct heating mechanisms fail consistently when processing advanced pressure sensitive adhesives. Direct-heat tank melters use exposed heating elements to melt solid blocks. These elements generate extreme localized "hot spots" inside the tank. The temperatures near the elements often exceed the safe threshold for the adhesive. This concentrated heat severely degrades thermoplastic elastomers. Polymers like Styrene-Butadiene-Styrene (SBS) or Styrene-Isoprene-Styrene (SIS) break down rapidly under thermal stress. The hot spots also destroy delicate tackifying resins in the formulation. The glue loses its natural elasticity. It becomes brittle upon cooling. This degradation completely ruins the intended bonding characteristics.

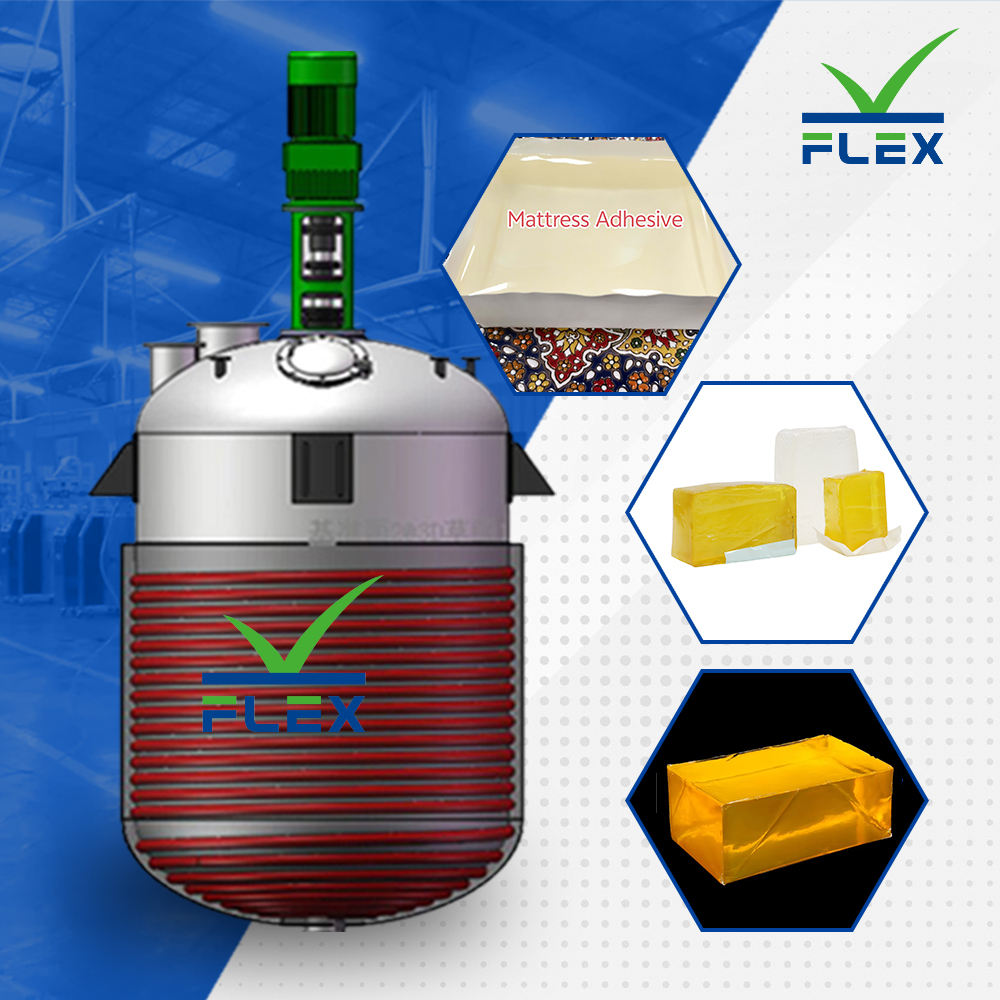

Indirect heating provides the definitive solution. A PSA block hot melt glue jacketed reactor relies exclusively on indirect thermal transfer. Thermal fluids, such as high-grade diathermic oil or industrial steam, circulate within a dual-wall jacket. This jacket surrounds the entire mixing vessel. It creates a massive surface-area heating profile. The system operates on a low-delta-T principle. The temperature difference between the heating surface and the adhesive remains minimal. The jacket gently and evenly raises the temperature of the bulk material. This mechanism completely prevents thermal shock. It minimizes char buildup along the interior walls. It also maintains a highly consistent shear rate during the initial melting phase.
Managing high viscosity presents another major hurdle. PSA blocks are extremely dense. They resist flow entirely at room temperature. Dropping a solid block into a standard tank often causes jamming or uneven melting. The reactor safely reduces these thick blocks into a smooth, pumpable liquid. It accomplishes this phase change without snapping the long polymer chains. Protecting these chains gives the adhesive its ultimate shear strength. You achieve a consistent, predictable flow. The liquid remains perfectly conditioned for downstream application.
Engineers must follow a rigorous evaluation process when specifying equipment. You cannot rely on generic specifications. The system must match the exact rheological profile of the adhesive.
Choosing the correct agitator depends heavily on the specific viscosity index of your mattress adhesive. You must evaluate anchor agitators versus turbine agitators. Anchor agitators sweep close to the vessel walls. They work exceptionally well for highly viscous, sluggish liquids. Turbine agitators spin faster. They suit applications demanding rapid, high-shear mixing.
You must equip these agitators with PTFE (Teflon) wall scrapers. Scrapers constantly clear the reactor walls during rotation. They prevent an insulating layer of degraded, baked-on glue from forming. If this layer forms, it ruins thermal transfer efficiency. It forces the heating system to work harder, which eventually causes internal system failures.
Modern adhesive processing requires multi-zone PID (Proportional-Integral-Derivative) temperature controllers. These controllers constantly monitor the thermal fluid. They adjust heating elements proactively. They prevent temperature overshoots. We always assess heating up-time metrics. You must balance rapid heating capabilities against overall energy consumption for cold starts.
Consider these essential control parameters when evaluating a system:
Primary jacket fluid temperature limits.
Internal vessel zone variance.
Automated cooldown cycle efficiency.
Sensor feedback latency limits.

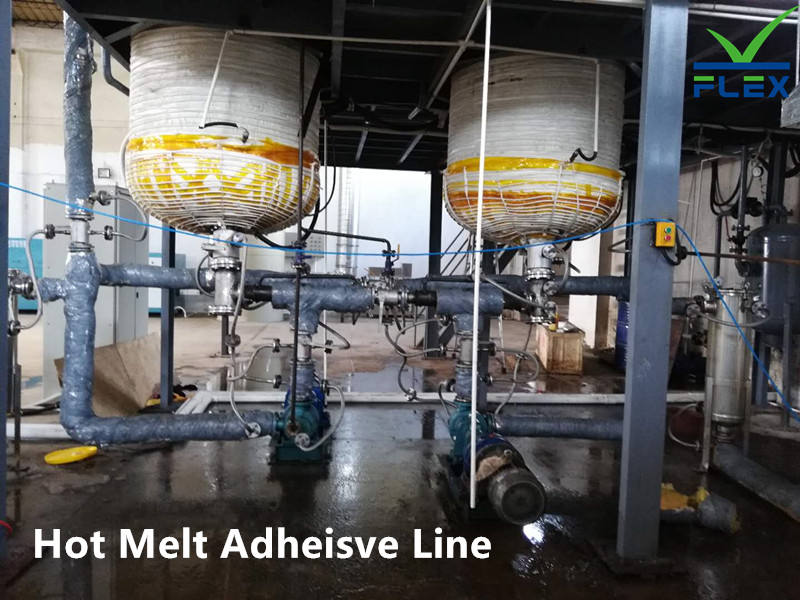

Moving the molten PSA out of the reactor requires heavy-duty engineering. You must integrate robust gear pumps. Manufacturers design these specific pumps for high-viscosity materials. They deliver continuous, pulse-free output. A pulsing flow ruins the application pattern on the mattress foam.
The pump system must integrate flawlessly into downstream equipment. It connects directly to heated hoses. It must match your chosen applicator heads perfectly. This applies whether you use automated spray systems or slot-die extrusion nozzles.
Agitator Type | Primary Viscosity Range | Shear Level | Best Fit Application |
|---|---|---|---|
Anchor with Scrapers | High to Very High | Low | Thick PSA block melting, slow uniform heating |
Turbine / Propeller | Low to Medium | High | Rapid blending of lower viscosity adhesives |
Dual-Shaft Co-Axial | Variable | Variable | Complex formulations requiring both sweeping and dispersion |
 |  |
The machinery directly dictates the final product quality. A poorly processed adhesive compromises the entire mattress assembly.
Thermally stable PSA prevents microscopic crystallization. Crystallization causes an audible "crackling" noise. This happens when foam layers compress under human body weight. Nobody wants a noisy mattress. Proper indirect heating keeps the polymers amorphous. The glue line remains completely silent during compression and decompression cycles.
The adhesive must maintain its natural elastomeric properties. It has to match the compression profile of the surrounding materials perfectly. Memory foam, natural latex, and dense polyurethane bases all compress differently. A rigid, overheated glue line ruins the plush feel of luxury foams. It creates a hard ridge right in the middle of the mattress. The jacketed vessel ensures the glue stretches and recovers just like the foam itself.
Processing the glue correctly protects its chemical integrity. This guarantees exceptional adhesion strength. It also maximizes creep resistance. Mattress layers will not shift. They will not delaminate over time. The bond holds strong during aggressive roll-packing processes. It survives the extreme forces of vacuum compression. It also withstands years of extended consumer use.
Precise temperature control directly stops the off-gassing of degraded organic compounds. Preventing overheating eliminates toxic fumes on the factory floor. It also supports strict environmental certifications. Cleanly processed glue helps manufacturers meet rigorous standards easily.
Supports CertiPUR-US® compliance by minimizing VOC emissions.
Maintains OEKO-TEX® standards for consumer safety.
Eliminates residual factory odors in the finished, packaged mattress.

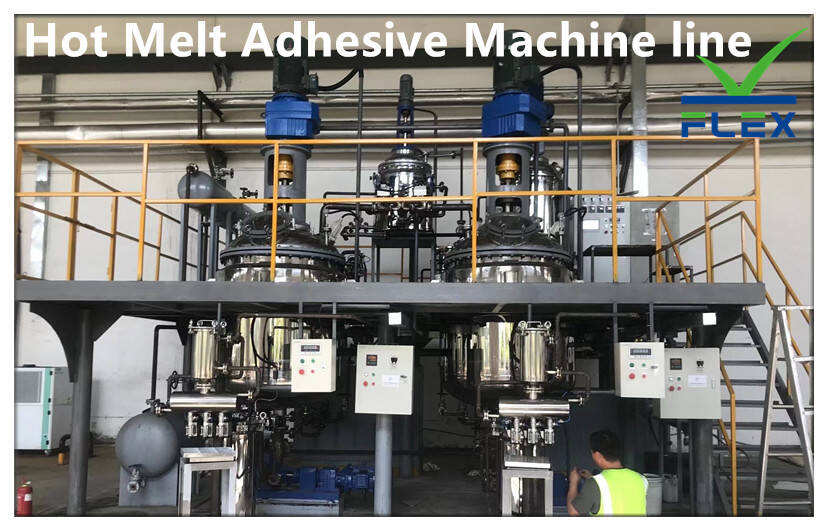

Integrating heavy thermal equipment demands careful facility planning. You must assess your factory layout thoroughly. A jacketed vessel, its external thermal fluid heater, and the associated insulated pipework demand significant floor space. You cannot cram these components into a tight corner. Maintenance personnel require full 360-degree access. Route heated pipes strategically to avoid workflow bottlenecks. Proper layout prevents accidental burns and keeps forklift pathways clear.
You must evaluate your factory's specific Takt time. Decide whether a continuous melt-on-demand system fits your operations better than a large-batch holding reactor. Continuous systems melt smaller volumes faster. They keep degradation risks extremely low. Large batch reactors hold massive amounts of glue ready for peak surges. However, holding molten glue for excessive periods increases the risk of thermal breakdown. You must match the reactor capacity precisely to your hourly throughput requirements.
System purges are absolutely mandatory. You need to plan the exact frequency of these flushes. Routine purging prevents cross-contamination between different adhesive grades. Ensure the interior remains highly accessible. Maintenance teams must routinely inspect the inner walls. They must perform scheduled scraper replacements. If PTFE scrapers wear down, the sweeping action fails.
Component | Inspection Frequency | Action Required |
|---|---|---|
PTFE Wall Scrapers | Monthly | Check for wear/gaps; replace if clearance exceeds 2mm. |
Diathermic Oil | Bi-Annually | Test for degradation/sludge; flush system if needed. |
Gear Pump Seals | Quarterly | Inspect for weeping; replace mechanical seals to prevent leaks. |
PID Sensors | Annually | Recalibrate to ensure zero temperature drift. |
Handling high-temperature thermal oils introduces severe operational risks. Pressurized vessel compliance is non-negotiable. Always adhere strictly to ASME or CE standards. Implementing redundant pressure relief valves protects operators. Installing automated high-limit temperature shutoffs prevents catastrophic oil fires. Safety must dictate every installation decision.
 |  |
Selecting an equipment vendor requires extensive due diligence. You should never purchase a system based purely on a brochure.
Buyers must insist on performing a Factory Acceptance Testing (FAT) protocol. You should ship your exact PSA block formulation to the vendor. Test it inside their facility using their test reactor. Do this prior to finalizing any equipment acquisition. This proves the system handles your specific chemistry. It verifies the melting rate. It confirms the gear pump can actually push your desired viscosity without stalling.
Evaluate global spare parts availability closely. Review the Service Level Agreements (SLAs) in detail. Proprietary agitator seals require frequent replacement. Specialized heating elements often suffer from long supply chain lead times. Secure strong vendor commitments on technical support response times. If the pump fails, your entire mattress line stops. You need guaranteed access to critical replacement parts.
Look strictly at operational efficiency and waste reduction metrics. Calculate your expected energy consumption improvements. Modern insulated jackets retain heat brilliantly. Track the expected reduction in glue waste. Eliminating localized hot spots means you discard fewer charred batches. Factor in the lowered maintenance downtime. A high-quality system runs continuously without demanding constant operator intervention. These efficiency metrics justify the equipment upgrade.
Selecting a robust adhesive melting system acts as a critical process variable. It is never just a basic utility decision. The equipment directly dictates your overall mattress quality. It determines your assembly line efficiency. Proper thermal management prevents ruined foam. It stops noisy glue lines and prevents delamination failures. Indirect heating protects the delicate chemistry of modern adhesives.
We encourage engineering teams to take immediate action. Define your target throughput in strict kilograms per hour. Outline your precise adhesive specifications by reviewing the Technical Data Sheet (TDS). Finalize your application methodology, choosing between spray or slot-die extrusion. Gather these metrics before requesting customized reactor schematics from manufacturers. Preparation guarantees a seamless integration process.
A: Typical processing temperatures range between 150°C and 170°C (300°F–340°F). Precise targets depend heavily on the manufacturer's Technical Data Sheet. The jacket ensures the internal heating surface does not drastically exceed this specific setpoint, protecting the adhesive.
A: Yes, it handles both mechanically. However, cross-contamination poses a severe risk. Thorough purging is required between batches. Plant managers usually dedicate specific reactors exclusively to PSA to maintain tackifying integrity and prevent chemical mixing.
A: It integrates via heated, insulated piping and precision gear pumps. These components sync directly with the PLCs of the application line. This ensures molten glue is only dispensed precisely when the mattress passes the optical sensor.
A: Charring is caused by oxidation and localized overheating, often exceeding 200°C at the heat source. The jacket uses a circulating thermal fluid. It distributes heat evenly across the entire surface area. This completely eliminates extreme hot spots.
