1. High-Precision Molding
Adopts servo-driven extrusion and laser diameter monitoring technology to ensure excellent dimensional stability. The finished strip-shaped products have uniform thickness and smooth surfaces, meeting the strict quality requirements of high-end industries such as automotive and electronics.
2. Provide Formula Technology Support
FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective granular hot melt adhesive machine line, but also offers formula technical support, such as Book binding granular hot melt adhesive, woodworking edge sealing / panel bonding special granular hot melt adhesive, etc.
3. Multi-Material Compatibility
Supports flexible processing of various raw materials including EVA, POE and TPR. It can adapt to different formula systems and bonding needs, enabling quick switching between production requirements without modifying equipment, effectively expanding product application scope.
4. Energy-Saving & High-Efficiency
Integrates energy-saving heating and intelligent control technologies to reduce unnecessary energy consumption. It supports continuous operation for a long time, with an automatic feeding system that simplifies operation and reduces manual input, improving overall production efficiency.
5. Intelligent Automation & Easy Maintenance

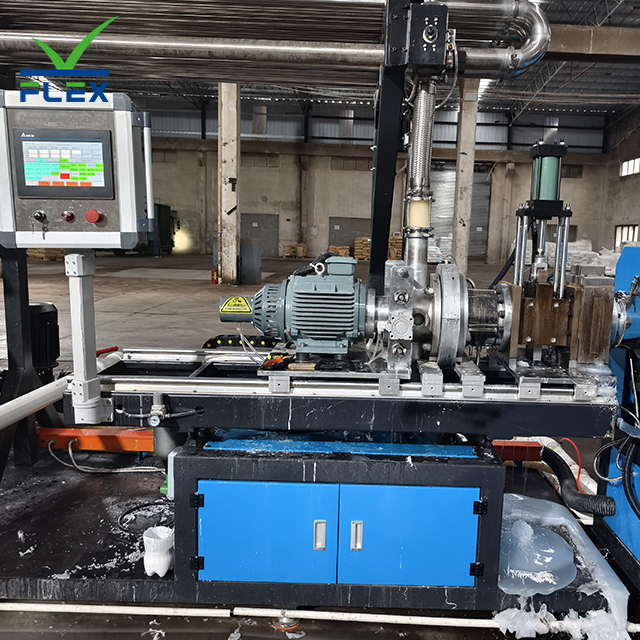

Equipped with a PLC touchscreen control system for centralized adjustment of key parameters and real-time fault monitoring. The modular design makes daily maintenance simple and convenient, while core components have strong durability to minimize production downtime.
6. Stable & Durable Structure
Key parts such as extrusion screws and cutting blades are made of high-quality alloy materials, featuring good wear and corrosion resistance. The whole machine operates stably with reliable performance, supported by timely global after-sales technical support.
| Product Parameter | ||

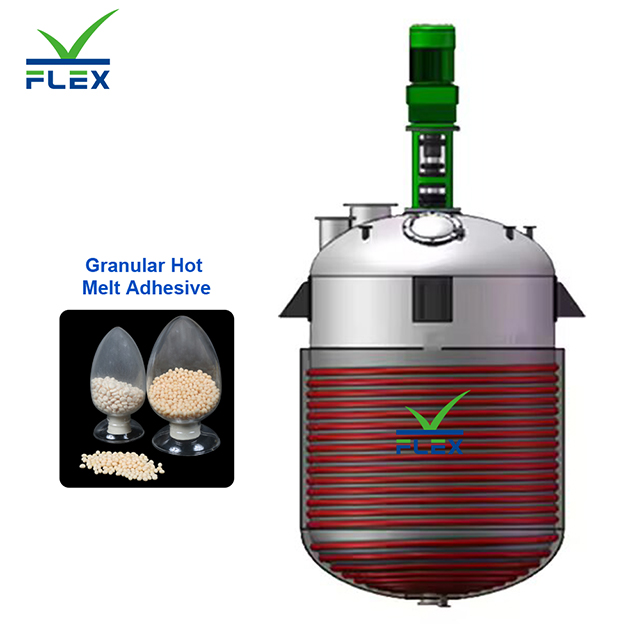

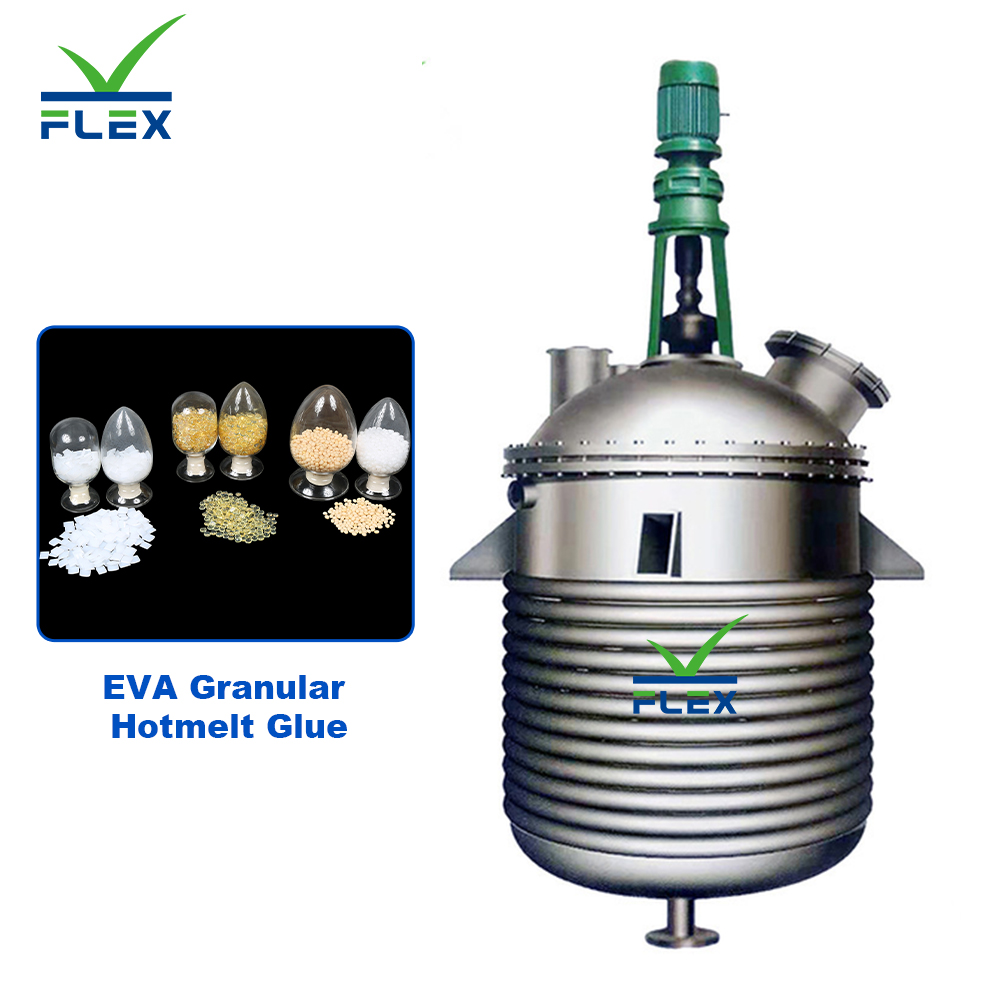

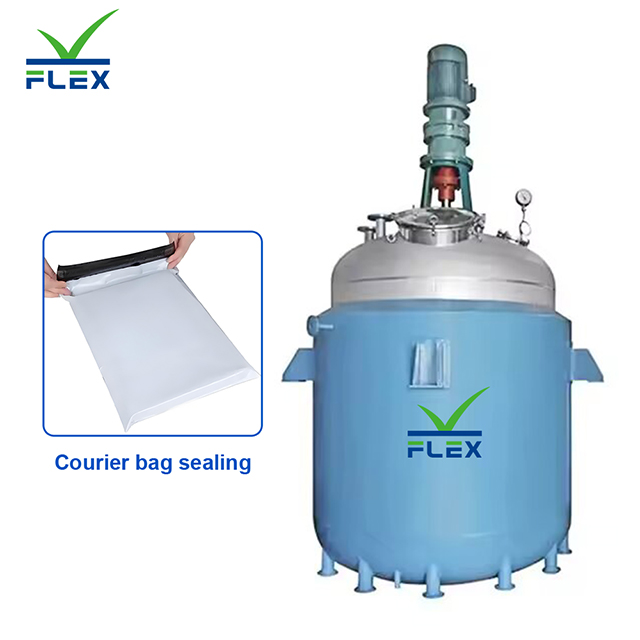

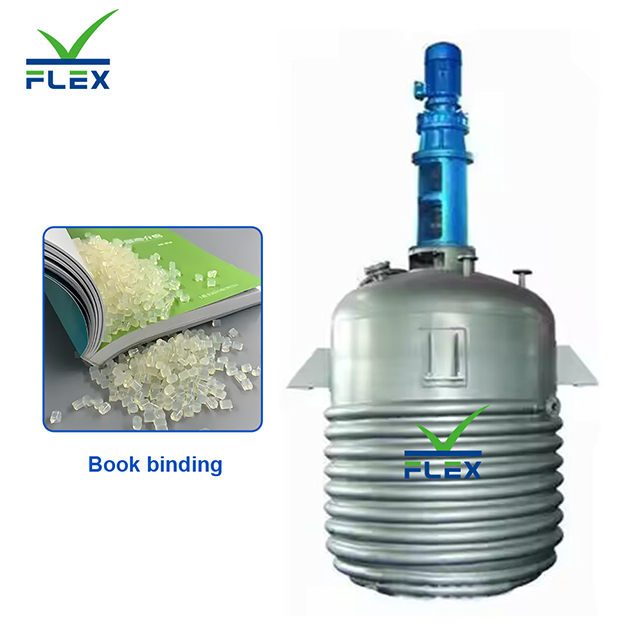

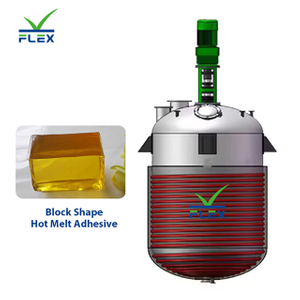

| 1 | Product name | Stainless steel reactor-Granular hot melt adhesive machine line |
| 2 | Products Application | Application of PVC/Wood /Furniture /Edge Bonding |
| 3 | Machine Capacity | 2000L-2500L-3000L-4000L-5000L-6000L |
| 4 | Motor Power | 22KW/30KW/37KW/45KW/55KW/75KW/90KW |
| 5 | Motor Brand | Siemens Drive Motor/Wannan Motor/Jiangcheng Motor |
| 6 | Machine Material | SS304 Stainless Steel/Carton Steel |

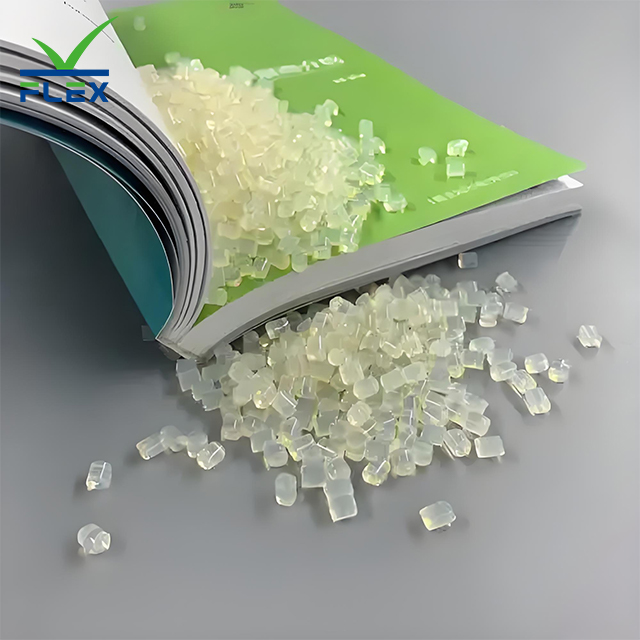

| 7 | Application | 1) Woodworking industry: Board assembly, furniture edge sealing, wood floor tongue-and-groove bonding, etc. 2) Book binding adhesive: Molded cover for hardcover books, spine bonding, wireless binding 3) Packaging box edge sealing and reinforcement, etc |
1. Packaging Industry
Ideal for manufacturing hot melt adhesives used in carton sealing, label bonding, and product packaging. The adhesive’s fast curing and strong adhesion ensure secure packaging, while the production line’s flexibility supports customized formulas for food, beverage, and e-commerce packaging needs.
2. Automotive Industry
Produces high-performance adhesives for automotive interior bonding (e.g., door panels, seat cushions) and component assembly. The adhesives offer excellent temperature resistance and durability, meeting strict automotive industry standards for safety and reliability.
3. Electronics Industry
Supplies precision hot melt adhesives for electronic component fixing, wire harness bonding, and PCB assembly. The line’s high-precision molding ensures consistent adhesive performance, with low volatility and excellent insulation to protect sensitive electronic parts.
4. Construction & Building Materials
Manufactures adhesives for door/window sealing, floor laying, and insulation material bonding. The adhesives feature strong weather resistance and water tightness, while the production line’s multi-material compatibility adapts to construction-specific formula requirements (e.g., low VOC, high shear strength).
5. Textile & Hygiene Products
Suitable for producing adhesives for clothing hem bonding, carpet installation, and hygiene product (diapers, sanitary napkins) core fixation. The adhesives are soft, non-irritating, and offer stable adhesion, supporting the production of high-quality textile and hygiene goods.
Detailed Operation Guide for Block Hot Melt Adhesive Production Line
• Pre-Operation Preparation
1. Raw Material Inspection: Confirm EVA/PE/PP/rubber-based raw materials are dry (moisture content ≤0.5%), free of impurities, and meet formula requirements; crush lumps to 5-10mm particles for smooth feeding.
2. Equipment Check: Inspect 304 stainless steel feeding hopper, extrusion screw, and cutting blade for wear; verify electrical connections, air pressure (0.6-0.8MPa), and cooling system circulation.
3. Safety Preparation: Wear heat-resistant gloves, goggles, and anti-slip shoes; ensure emergency stop button is functional and ventilation system is on.
• Parameter Setting
1. Power on the PLC intelligent control panel, select the corresponding formula program (or customize).
2. Set melting temperature (120-180℃ based on raw material), extrusion speed (10-30rpm), mixing time (5-10 mins), and block dimensions (length/width/thickness per demand).
3. Activate preheating and wait for temperature to stabilize (±1℃ deviation allowed) – indicated by the panel’s green light.
• Startup & Operation (Continuous)
1. Start the feeding system first, then the extrusion and mixing unit; ensure raw materials enter the melting chamber evenly.
2. Monitor real-time data on the panel: viscosity (1000-5000 mPa·s), pressure (≤15MPa), and cooling water temperature (20-30℃); adjust parameters if abnormalities occur.
3. Take the first 3-5 finished blocks for inspection (dimension precision ±0.1mm, hardness 60-80 Shore A); proceed with mass production only after qualification.
• Post-Production Shutdown
1. Stop feeding first, let the remaining material in the system be extruded completely.
2. Set temperature to 80℃ for heat preservation, clean the extrusion head and cutting blade with a dedicated tool (avoid scratching).
3. Turn off the extrusion unit, cooling system, and main power; record production data (output, parameters, qualified rate).
4. Store finished blocks in sealed, dry packaging; clean the equipment surface and surrounding area.
1. Pre-Operation Preparation:
Check power supply, heating system, and mechanical parts for abnormalities. Ensure raw materials are dry and meet formula requirements; load them into the feeding hopper.
2. Parameter Setting:
Via PLC touchscreen, set heating temperature, extrusion speed, shaping parameters, and cutting length according to adhesive specifications.
3. Warm-Up & Inspection:
Start the heating system, wait for each zone to reach set temperature (maintain constant temperature for 10-15 mins). Verify temperature stability and feeding system smoothness.
4. Startup & Operation:
Initiate the line in sequence (feeding → extrusion → shaping → cutting). Monitor real-time operation via the control panel to ensure uniform product shape and no blockages.
5. Production Adjustment:
Fine-tune parameters based on product quality (e.g., adjust speed for thickness, temperature for adhesion). Record key data for traceability.
6. Shutdown & Maintenance:
After production, stop feeding first, then shut down each module following system prompts. Clean the extrusion head, shaping mold, and cutting blade; perform routine inspection.
 |  |  |  |
 |  |  |  |
 |
