Transitioning to or optimizing polyurethane adhesives is a high-stakes engineering decision. The wrong specification leads to equipment clogs. It can also cause delayed curing or catastrophic bond failure in the field. Reactive polyurethane offers superior thermal and moisture resistance. It easily outperforms traditional EVA or polyolefin hot melts. However, maximizing its value requires precise alignment. You must match adhesive chemistry to specific production line speeds. Substrate profiles also play a crucial role in forming a durable bond. Ignoring these variables often results in weak joints and costly manufacturing downtime. This guide breaks down the critical technical criteria for evaluating these reactive adhesives. It helps you shortlist options effectively. You will learn how to select and implement the correct PUR Hot Melt Adhesive for your exact manufacturing process.
 |  |
Adhesive selection must balance required open time for assembly with sufficient green strength for immediate downstream processing.
Application method (roll coating vs. slot die vs. extrusion) dictates the required viscosity and thermal stability of the PUR.
End-use environmental extremes (moisture, temperature variations) define the necessary cross-linking density.
Total Cost of Ownership (TCO) should be calculated based on required coat weight and reduced reject rates, not strictly price-per-pound.
Establishing a technical baseline is your first step in vendor shortlisting. You need clear performance metrics to evaluate different adhesive formulations accurately.
Evaluating adhesion to difficult substrates requires understanding surface energy. Low-surface-energy plastics, coated metals, and high-gloss finishes resist traditional adhesives. Polyurethane chemistry bridges this gap. Porosity plays a massive role in determining penetration depth. Porous surfaces draw the liquid adhesive deep into the material fibers. This creates strong mechanical interlocking once cured. Non-porous surfaces rely entirely on specific chemical adhesion.
Best Practices for Substrate Testing:
Clean all testing surfaces thoroughly to remove manufacturing oils.
Measure the material surface energy using standardized dyne pens.
Apply a controlled test bead of the candidate adhesive.
Evaluate destructive peel strength only after 72 hours of full curing.
Green strength refers to the initial tack of the adhesive immediately after application. You must define the necessary green strength to handle parts without clamping. High initial tack keeps production lines moving fast. However, the secondary curing process requires time. Polyurethane cross-links by drawing moisture from the surrounding air. Ambient humidity and temperature variations directly accelerate or retard this chemical reaction. High humidity speeds up cross-linking. Low humidity significantly slows it down.
Open time defines how long the adhesive remains tacky before skinning over. You must align the adhesive’s open time carefully. Fast automated line speeds demand short open times. Manual assembly steps require longer open times to allow workers to position parts perfectly. Premature skinning ruins the bond strength. The adhesive cools too quickly and fails to wet out on the secondary substrate.
You must match adhesive viscosity to your exact operating temperature. This ensures consistent flow. Low-viscosity formulations flow easily but carry a risk of dripping. High-viscosity formulations prevent stringing but require more robust pumping equipment. Viscosity directly impacts your coat weight and application precision.
Evaluation Metrics for Adhesive Selection
Criterion | Impact on Process | General Recommendation |
|---|---|---|
Surface Energy | Determines chemical bond strength on non-porous parts. | Match adhesive polarity to substrate dyne levels. |
Green Strength | Dictates if mechanical clamping is necessary. | Select high initial tack for clamp-free automation. |
Open Time | Limits the window for part mating. | Keep it slightly longer than maximum manual assembly time. |
Viscosity | Controls fluid flow and nozzle stringing. | Monitor temperature strictly to maintain target centipoise (cP). |
 |  |
Different industries demand specific adhesive properties. Categorizing solutions based on operational realities helps narrow down your choices rapidly.

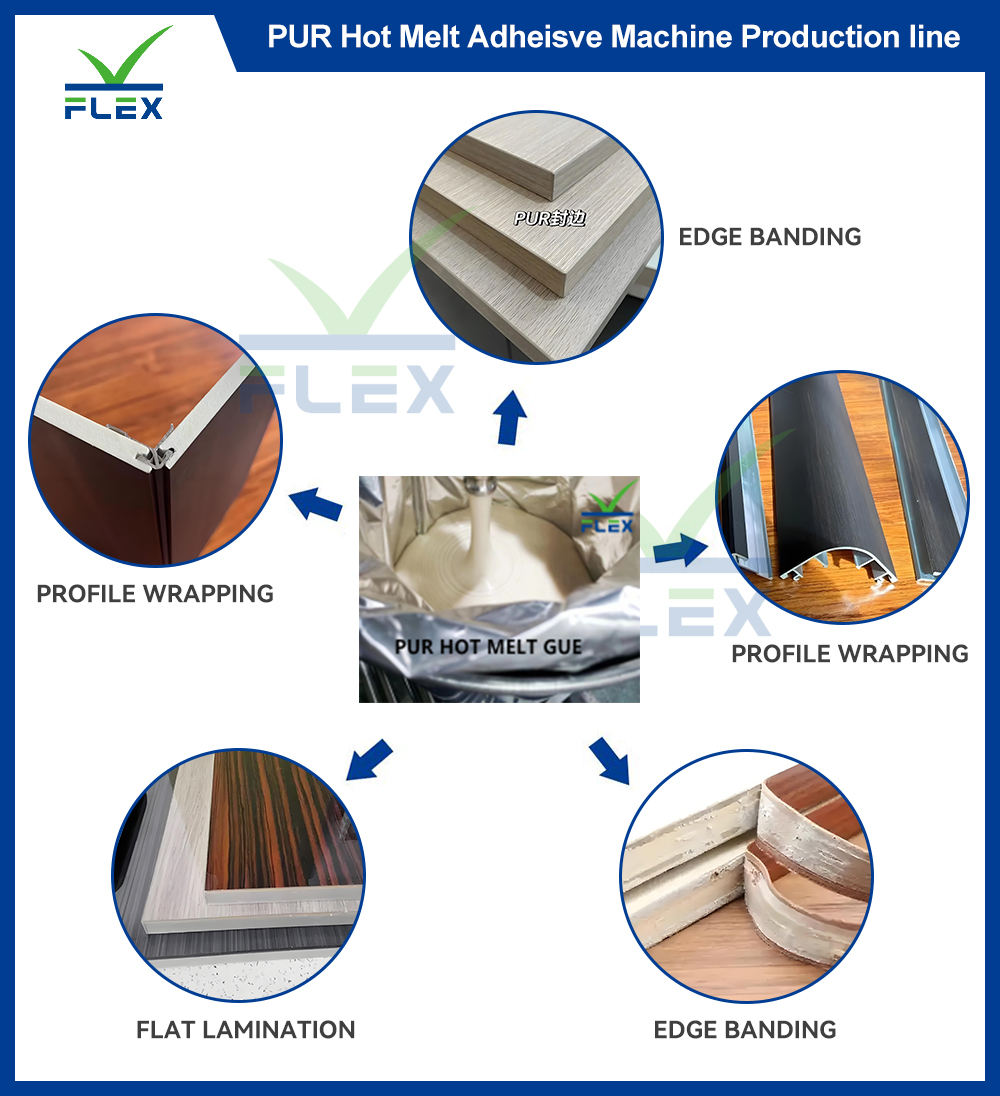

Modern furniture manufacturing requires invisible glue lines. Kitchen environments subject cabinets to extreme heat and steam. Delamination under these conditions is a constant threat. Formulations must offer high moisture resistance and exceptional heat resistance. Choosing a dedicated Wood Lamination PUR Adhesive solves this problem. It forms a thermoset bond resistant to remelting. Flat lamination processes use roll coaters. These require adhesives optimized for wide-web spreading. Precision edge banding relies on slot dies or extrusion nozzles to apply highly controlled adhesive beads.
Automotive components endure harsh conditions. High heat resistance is mandatory. Parts face continuous vibration and exposure to automotive fluids. Standard hot melts fail under this stress. Polyurethane maintains structural integrity across extreme temperature fluctuations. Electronics assembly demands micro-dispensing capabilities. Intricate electronic housings need tiny, precise adhesive drops. The adhesive must flow smoothly through fine nozzles without clogging.
The textile industry focuses on cured flexibility. Washability determines product lifespan. Garments must maintain a soft hand-feel. Industrial adhesives often make fabrics stiff and uncomfortable. Advanced formulations provide extreme flexibility without sacrificing peel strength. Flexible packaging also relies on this combination of strong adhesion and pliability to survive transit and consumer handling.
 |  |
Reactive hot melts introduce unique operational realities. You must address maintenance and technical risks proactively to prevent equipment damage.
Reactive polyurethane starts curing the moment it contacts ambient moisture. Standard open-tank melters expose the adhesive to room air. This causes premature curing inside the tank. You absolutely need moisture-sealed systems. Closed melters use dry-air or nitrogen blanketing. This inert gas pushes moisture away from the liquid adhesive. Implementing closed systems prevents catastrophic tank curing and expensive equipment replacements.
Holding adhesives at application temperatures for extended shifts causes thermal degradation. This phenomenon is known as viscosity drift. The adhesive thickens over time. Thickened adhesive changes the coat weight and messes up nozzle calibration. Managing this requires strict temperature controls. Lower the tank temperature during breaks. Only melt what you intend to use during a specific shift.
Establishing strict cleaning regimens is non-negotiable. You must use specialized purge compounds. Standard cleaners will not work. If you leave reactive adhesive in the hoses over the weekend, it cross-links. Once cross-linked, it becomes a solid block of plastic. You cannot remelt it. This irreversible cross-linking ruins hoses, pumps, and expensive extrusion nozzles. Flush the system completely with a non-reactive purge before any prolonged shutdown.
Many facilities wonder if they can convert standard EVA equipment to handle PUR chemistry. Assess the viability and capital expense carefully. Usually, upgrading standard open tanks is impossible. You need specialized pumps and heated hoses lined with Teflon. Converting requires careful planning and engineering oversight. Working with experienced equipment partners makes this transition smoother. If you need guidance on equipment audits, learn more about us and our technical consulting approach.
Navigating regulatory compliance and workplace safety dictates modern adhesive choices. Environmental considerations push the industry toward safer chemistry.
Standard formulations contain free monomeric diisocyanates (MDI). Heating these adhesives releases MDI vapors into the air. These vapors pose respiratory health risks to operators. Standard safety protocols require active exhaust ventilation over the application areas. Operators must wear proper personal protective equipment. Ignoring these safety measures leads to severe regulatory fines and health hazards.
The industry is rapidly shifting to Low-Emission (LE) formulations. These are often called Micro-Emission adhesives. They contain monomeric isocyanate levels below 0.1 percent. This ultra-low level meets strict environmental regulations. It achieves REACH compliance in Europe. Using LE adhesives eliminates the mandatory requirement for expensive hazard labeling. It drastically improves workplace safety and simplifies exhaust ventilation requirements.
Analyzing performance trade-offs is essential before transitioning. Does transitioning to LE chemistry impact your process? In many cases, the final bond durability remains identical to standard formulations. However, you might experience slight variations in the initial green strength. The open time might also shift by a few seconds. We highly recommend running controlled line trials. Adjust your line speeds and clamping pressures based on these trial results to maintain peak efficiency.
Selecting the right reactive adhesive is an ongoing equation. You must balance substrate chemistry, automated line speeds, and precise dispensing technology. Rushing the selection process leads to weak joints and ruined dispensing equipment. Take a methodical approach. First, request technical data sheets (TDS) for all candidate formulations. Next, conduct lab-scale substrate testing to verify surface energy compatibility and peel strength. Finally, schedule a comprehensive equipment audit with an adhesive engineer before full-scale integration. Proactive testing guarantees a durable, high-performance bond.
A: It develops immediate green strength within seconds, allowing you to handle parts. However, the final cross-linking phase takes 24 to 72 hours. This secondary cure depends on ambient humidity and temperature pulling moisture into the adhesive line.
A: No. Standard EVA melters are open to the air. Reactive adhesives require moisture-sealed systems with nitrogen or dry-air blanketing. Using open tanks causes the adhesive to cure solid inside your equipment, leading to irreversible damage.

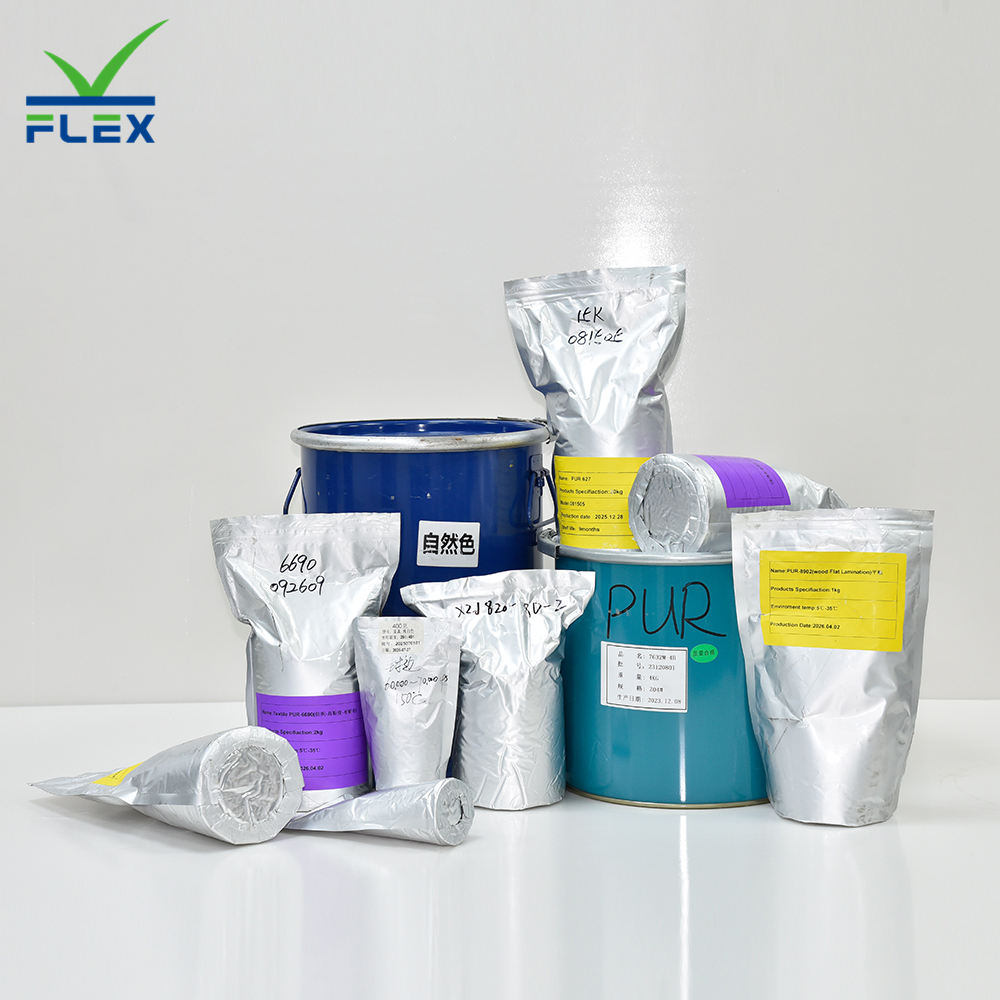

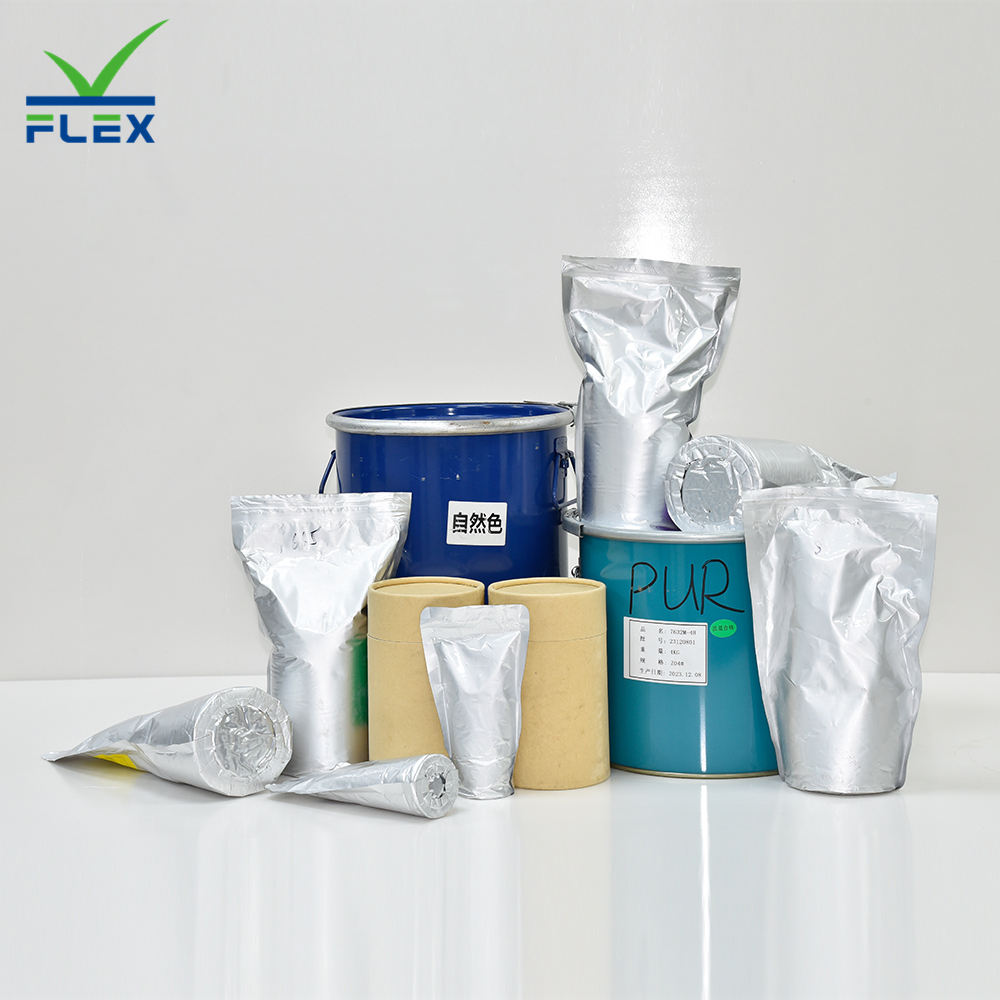

A: Standard shelf life typically ranges from 6 to 12 months. It requires intact foil packaging. Any puncture exposes the adhesive to ambient moisture, causing premature cross-linking and rendering the product unusable before you even open it.
A: Once cross-linked, it becomes a thermoset plastic. You cannot re-melt it with heat. Removal typically requires mechanical grinding, scraping, or soaking the parts in specialized, aggressive industrial solvents for extended periods.
