The landscape of industrial labeling is undergoing a significant transformation. High-speed production lines are rapidly moving away from traditional solvent-based adhesive systems, embracing the efficiency and sustainability of Hot Melt Pressure Sensitive Adhesives (HMPSA). This shift is driven by the need for instant bonding, superior thermal stability, and cleaner application processes. At the heart of this evolution is the "pillow" format, a solid-state adhesive designed for precision and automation. This format has become the industry standard for modern automated systems, solving critical business problems related to adhesive application in high-volume label backing operations. In this guide, we explore the science, benefits, and best applications of HMPSA pillow adhesives, providing a framework for integrating this technology into your production line.
Efficiency: HMPSA pillows eliminate the need for drying tunnels, significantly reducing the footprint of an HMPSA Machine Line.
Versatility: Superior performance on Low Surface Energy (LSE) substrates like PE and PP plastics.
TCO (Total Cost of Ownership): Lower energy consumption and reduced machine maintenance compared to liquid adhesive systems.
Technical Edge: Understanding the Dahlquist criterion and viscoelasticity is essential for selecting the right grade.

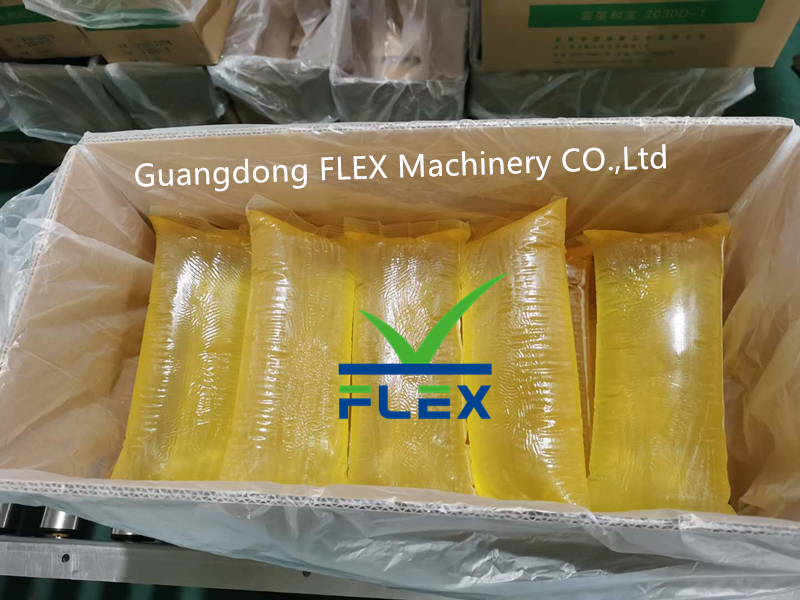

Pressure Sensitive Adhesive (PSA) in pillow form is a modern adhesive technology designed for efficiency and automation. It is a solid-state, 100% solids thermoplastic material. This means it contains no water or solvents that need to evaporate. The adhesive is supplied in small, pillow-shaped chunks that are easy to handle, transport, and load into machinery. It remains inert and non-tacky at room temperature but becomes a fluid adhesive when heated. This "melt-on-demand" characteristic makes it ideal for high-speed, automated production environments where precision and consistency are paramount.
The adhesive pillows are processed by a specialized HMPSA Pillow glue machine. This equipment is engineered to handle the unique properties of these adhesives. The process typically involves three key stages:
Melting: The solid pillows are fed into a heated tank where they are melted down to a specific application temperature, usually between 150°C and 180°C.
Pumping: A precision gear pump transports the molten adhesive from the tank through heated hoses to the application head. This ensures a consistent flow rate and pressure.
Coating: The adhesive is applied to the label facestock or release liner using a coating head, most commonly a slot-die or a spray nozzle. Slot-die coating provides a smooth, uniform film, while spray systems are used for more pattern-specific applications.
The entire system is designed to maintain precise temperature control, which is critical for preserving the adhesive's integrity and ensuring consistent performance.
The "permanent tack" of a PSA—its ability to stick to a surface with light pressure—is a result of its carefully balanced chemical formulation. Most HMPSAs are composed of three primary components:
Elastomers: These are the backbone of the adhesive, providing its strength and flexibility. Styrenic Block Copolymers (SBCs) like SIS (styrene-isoprene-styrene) and SBS (styrene-butadiene-styrene) are commonly used. They give the adhesive its rubbery, elastic properties.
Tackifiers: These are resins that increase the "tack" or initial grab of the adhesive. They are responsible for making the adhesive sticky at room temperature. The choice of tackifier resin influences the adhesive's specific adhesion to different surfaces.
Plasticizers and Oils: These are low molecular weight oils or liquid polymers that reduce the viscosity of the molten adhesive, making it easier to pump and apply. They also help to control the softening point and flexibility of the final adhesive film.
For an HMPSA pillow adhesive to be effective, its physical properties must align with the application and machine specifications. Two of the most critical parameters are the softening point and viscosity.
| Property | Typical Range | Importance for Labeling |
|---|---|---|
| Softening Point | 90°C ± 5°C | Indicates the temperature at which the adhesive begins to soften. A well-chosen softening point prevents the adhesive from bleeding at the edges of a label roll during storage in warm conditions. |
| Viscosity (at 160°C) | 1,500 – 2,500 mPa·s | Measures the adhesive's resistance to flow when melted. This must match the pump capacity and nozzle design of the HMPSA machine to ensure a clean, consistent coating without stringing or over-application. |
The magic behind pressure sensitive adhesives lies in a property called viscoelasticity. This means the material exhibits both viscous (liquid-like) and elastic (solid-like) characteristics. When you apply a label, the adhesive behaves like a liquid; it flows and "wets out" the substrate, maximizing contact area for a strong bond. Once applied, it behaves like a solid; it resists shear forces and holds the label firmly in place. This dual nature allows it to create a strong bond with just light pressure, without needing a chemical reaction or long curing time.
For an adhesive to have "instant grab," it must be soft enough to flow over a surface. This principle is quantified by the Dahlquist criterion, a foundational concept in adhesion science. It states that for a material to exhibit pressure-sensitive tack at room temperature, its storage modulus (a measure of its stiffness) must be below 3 x 105 Pascals. If the adhesive is too hard (modulus is too high), it cannot deform and make intimate contact with the substrate, resulting in poor adhesion. HMPSA formulations are precisely engineered to meet this criterion within their designed service temperature range.
An adhesive's ability to bond depends on the surface energy of the material it is applied to. Surface energy is a measure of the molecular attraction at a material's surface.
High Surface Energy (HSE) Substrates: Materials like glass, bare metals, and ceramics have high surface energy. They are easy to bond because liquids (including adhesives) readily spread across their surface.
Low Surface Energy (LSE) Substrates: Materials like polyethylene (PE) and polypropylene (PP) plastics have low surface energy. They are notoriously difficult to bond because liquids tend to bead up rather than spread out.
HMPSA formulations are particularly effective on LSE plastics. Their chemical composition is designed to have a lower surface tension than the substrate, allowing them to wet out and create a durable bond where many other adhesives fail.
The Glass Transition Temperature (Tg) is the temperature at which an adhesive transitions from a hard, glassy state to a softer, rubbery state. This is a critical parameter for label performance in different environments.
Below Tg: The adhesive becomes brittle and loses its tack. This is a key consideration for cold-chain logistics, where labels on frozen food packaging must remain adhered.
Above Tg: The adhesive is in its optimal rubbery state, providing good tack and peel strength.
Far Above Tg: The adhesive can become too soft, losing its shear strength and potentially oozing from the label edges. This is important for products exposed to high heat, like automotive parts or electronics.
Manufacturers formulate HMPSAs with specific Tg values to ensure reliable performance across a wide range of service temperatures, from deep freeze to hot warehouse conditions.
One of the most significant advantages of HMPSA is its instant bonding capability. Unlike water-based or solvent-based adhesives that require time and energy for drying or curing, HMPSA forms a bond as soon as it cools, which happens in seconds. This allows for significantly higher production line speeds. Operators can immediately proceed to the next stage, such as die-cutting or roll winding, without worrying about label "swimming," misalignment, or adhesive smearing.
Environmental responsibility is a major driver for adopting new technologies. HMPSA pillows excel in this area:
Zero VOCs: Because they are 100% solid materials, HMPSAs release no Volatile Organic Compounds (VOCs). This eliminates the need for expensive and energy-intensive air pollution control equipment.
No Hazardous Solvents: The technology avoids the health, safety, and regulatory burdens associated with handling, storing, and disposing of flammable solvents.
Lower Energy Footprint: By eliminating the need for large drying tunnels or ovens, HMPSA systems consume significantly less energy per unit produced.
HMPSA systems are known for their clean operation and reduced maintenance needs compared to other adhesive technologies.
Reduced Charring: Modern HMPSA formulations are thermally stable, which minimizes the formation of char—a hard, carbonized residue that can clog nozzles and degrade equipment. The "melt-on-demand" nature of pillow-fed systems also means less adhesive is held at high temperatures for long periods.
Clean Die-Cutting: A well-formulated HMPSA provides a "residue-free" performance. It is cohesive enough to cut cleanly during the die-cutting process without building up on the cutting blades or oozing at the label edge.
Precision is key to minimizing waste. The advanced application systems used with HMPSA pillows, such as slot-die coaters, allow for exact control over the amount and placement of the adhesive. This precision minimizes adhesive bleed beyond the label edge, which can cause rolls to block or jam automated dispensing equipment. By using only the necessary amount of adhesive, companies reduce material consumption and liner waste, contributing to a lower total cost of ownership for their entire HMPSA Machine Line.
In the fast-paced world of e-commerce and logistics, label failure is not an option. PSA pillows provide the high initial tack and aggressive adhesion required to bond securely to challenging surfaces like corrugated cardboard and recycled fiber content boxes. These adhesives are formulated to withstand the scuffs, temperature fluctuations, and humidity common in shipping environments, ensuring that tracking and handling information remains intact from the warehouse to the final destination.
The food and beverage industry demands adhesives that are both effective and safe. Specialized low-migration HMPSA formulas are available for indirect food contact, ensuring compliance with FDA regulations. Furthermore, these adhesives offer excellent performance in demanding conditions. They exhibit strong moisture resistance, making them ideal for labels on chilled or frozen products that experience condensation. Their ability to adhere to various packaging materials, from flexible films to rigid plastic containers, makes them highly versatile.
Applications in the automotive and industrial sectors require extreme durability. HMPSAs are used for permanent bonding of critical labels like safety decals, warning signs, and Vehicle Identification Number (VIN) plates. These adhesives are engineered for high performance, offering superior resistance to UV radiation, harsh chemicals, oils, and extreme temperatures. They create a bond that lasts the lifetime of the product, even in the most demanding under-the-hood or outdoor environments.
Precision, cleanliness, and reliability are paramount in medical and pharmaceutical applications. HMPSAs for this sector are formulated to be low-allergen and residue-free. They are used for a variety of products, including medical device labels, specimen tracking labels, tamper-evident seals on packaging, and some medical tapes. The adhesive bond is stable and will not degrade or transfer, ensuring product integrity and patient safety. The solvent-free nature of HMPSA also makes it a cleaner choice for sensitive manufacturing environments.
Selecting the correct HMPSA is a technical decision that directly impacts product quality and operational efficiency. A systematic evaluation ensures you find the perfect match for your needs.
The first step is to understand the surfaces you are bonding. Identify both the label face stock and the final application surface.
Face Stock: Is it paper (coated or uncoated), a film like PET or BOPP, or a specialty material? The adhesive must bond well to the back of this material.
Target Surface: Is the final product glass, metal, treated cardboard, or a type of plastic? For plastics, identify if it's a High Surface Energy (HSE) material like PVC or a Low Surface Energy (LSE) one like HDPE or PP. LSE substrates require a specialized adhesive formulation.
Consider the entire lifecycle of the labeled product. The adhesive must perform under all expected conditions.
Application vs. Service Temperature: Note the temperature in your facility during label application versus the temperatures the final product will experience (e.g., deep freeze, pasteurization, outdoor sun).
Exposure to Stressors: Will the label be exposed to UV light, high humidity, water, chemicals, or oils? Does the target surface contain plasticizers (common in flexible vinyl) that could migrate into the adhesive and weaken the bond over time? Perform tests that simulate these real-world conditions.
The adhesive must work seamlessly with your equipment. Consult the specifications of your HMPSA Pillow glue machine.
Viscosity Matching: Ensure the adhesive's viscosity at your application temperature falls within the operational range of the machine's pump. A mismatch can lead to poor coating, pump strain, or inconsistent flow.
Open Time and Set Time: "Open time" is how long the adhesive remains tacky after application, while "set time" is how long it takes to form a solid bond. These must align with your line speed and the distance between the coating head and the point of label lamination.
Finally, determine the desired end-of-life characteristic for the label. Not all labels are meant to be permanent.
| Adhesive Grade | Characteristics | Common Use Case |
|---|---|---|
| Permanent | High ultimate adhesion; removal will destroy the label or damage the substrate. | Safety warnings, asset tags, VIN plates. |
| Repositionable | Low initial tack allows for removal and reapplication within a short timeframe before building to a permanent bond. | Promotional labels, inventory labels. |
| Ultra-Removable | Low adhesion allows for clean removal without leaving residue, even after long periods. | Glassware labels, protective films. |
The most direct return on investment (ROI) from switching to an HMPSA system comes from eliminating drying ovens. Solvent and water-based systems require massive energy inputs to evaporate the carrier liquid. By removing this step, companies see an immediate and substantial reduction in their electricity or natural gas consumption. Calculating this ROI involves comparing the kilowatt-hours used by drying tunnels against the more modest energy needs of an HMPSA melt tank and heated hoses.
HMPSA pillow systems are designed for automation and ease of use, which translates to significant labor savings. Pillow adhesives are simple and safe to load, reducing the time required for changeovers. The clean-running nature of these systems also means less downtime for maintenance. Operators spend less time purging lines, scraping char from tanks, and cleaning clogged nozzles, allowing them to focus on more value-added production tasks.
Pillow-fed adhesive systems are inherently scalable and well-suited for modern manufacturing. The automated feeding systems can run for extended periods without operator intervention, making them perfect for "lights-out" manufacturing environments. As production demands increase, these systems can easily keep pace with higher line speeds without becoming a bottleneck, unlike systems that are limited by drying capacity.
Proper implementation involves mitigating potential issues through smart adhesive selection. Common pitfalls like "adhesive ghosting" (a faint outline left after label removal) or "edge ooze" (adhesive bleeding from the sides of a label roll) are not inherent flaws of the technology but rather symptoms of a mismatch between the adhesive grade and the application. Choosing an adhesive with the right shear strength and applying the correct coat weight are critical steps to prevent these issues, ensuring high-quality output and minimizing product rejection.
PSA pillow adhesives are far more than just a consumable; they are a critical enabling technology for a modern, high-performance HMPSA Machine Line. Their integration drives operational speed, enhances sustainability, and lowers the total cost of ownership. By offering instant bonding, clean application, and versatility across countless substrates, they solve many of the core challenges in today's demanding labeling industry. Looking forward, the next frontier is emerging with UV-curable HMPSAs, promising even faster curing and extreme performance for specialized applications. To ensure success, your first step should always be to consult with a technical specialist to perform a comprehensive "Surface Energy Audit" and a full application review before finalizing your adhesive specifications.
A: The primary differences are in handling and melt rate. Pillows are smaller and have a higher surface-area-to-volume ratio, allowing them to melt faster and more evenly in melt-on-demand systems. This reduces thermal stress on the adhesive. They are also easier and safer for operators to load into automated feeding systems compared to large, heavy blocks.
A: Not necessarily. While many modern machines are compatible, you must check the specifications. Key factors include the tank's melting capacity (kg/hr) and the pump's ability to handle the specific viscosity of the adhesive at your target application temperature. Using an incompatible adhesive can lead to poor performance and potential equipment damage.
A: Adhesive bleed, or "edge ooze," is typically caused by selecting an adhesive with insufficient shear strength for the application or applying too much adhesive. To prevent it, choose a formulation with higher cohesive strength and work with your machine operator to optimize the coat weight. Proper storage of label rolls in a climate-controlled environment also helps.
A: Yes, they are considered an environmentally friendly choice compared to solvent-based alternatives. They are 100% solid materials, which means they release no Volatile Organic Compounds (VOCs) into the atmosphere. This eliminates air pollution and the need for solvent handling and disposal. They also contribute to lower energy consumption by removing the need for drying ovens.
A: Most HMPSA pillows have a shelf life of at least one to two years when stored correctly. They should be kept in their original packaging in a cool, dry environment, away from direct sunlight and heat sources. The antioxidants included in the formulation prevent degradation over time, but proper storage is key to ensuring consistent performance.
