Innovative Solutions For Woodworking: PUR Adhesive Reactors In Modern Workshops

The woodworking and furniture manufacturing industry is undergoing a structural shift. Consumer demand now strictly dictates a need for zero-joint edgebanding, high-gloss finishes, and extreme durability. Polyurethane Reactive (PUR) adhesives deliver these exact results. They provide unmatched moisture resistance, exceptional heat tolerance, and the highly sought-after invisible glue lines.

However, the chemical nature of PUR presents strict operational challenges for any production facility. Because PUR cures via atmospheric moisture, utilizing traditional open-pot EVA systems leads to premature cross-linking. This error causes severe equipment damage and excessive downtime. Therefore, a dedicated PUR Hot Melt Adhesive Reactor is not an optional accessory. It serves as a mandatory infrastructure upgrade for transitioning to polyurethane bonding. This guide examines the mechanical frameworks, evaluation criteria, and implementation realities of integrating these advanced reactors into your modern production lines.

Key Takeaways

• Airtight Processing is Non-Negotiable: PUR reactors utilize sealed drum unloaders and dry-air/nitrogen blanketing to prevent premature moisture-curing, reducing adhesive waste by up to 95%.

• Precision Dispensing Drives Quality: Achieving the invisible glue line requires non-pulsating gear pumps and servo-controlled dosage to prevent excessive squeeze-out and equipment fouling.

• Lower Operating Temperatures: PUR reactors operate between 120–140°C (compared to EVA's 180–220°C), protecting heat-sensitive decorative foils and thin veneers.

• Manageable Maintenance: Modern reactor designs dispel the myth of "daily cleaning nightmares" by allowing multi-day shutdowns through sealed systems and streamlined purging protocols.

The Business Case: Why High-End Woodworking Demands Dedicated PUR Reactors

Traditional EVA adhesives inherently degrade in environments exceeding 70–80°C. You will frequently see this failure in kitchen cabinetry located near ovens or dishwashers. EVA also lacks true water resistance. If you attempt to run PUR through legacy EVA open pots, you expose the adhesive directly to ambient humidity. This exposure immediately triggers the secondary moisture-crosslinking phase inside your machinery. The result is ruined hardware and costly production halts.

To understand the solution, you must understand the mechanics of two-stage curing. PUR relies on an initial thermal cooling phase for its green strength. This phase allows you to handle the board immediately. The adhesive then undergoes a secondary chemical reaction with substrate moisture and air moisture. A specialized PUR Hot Melt Adhesive Reactor strictly isolates the adhesive from any ambient moisture until the exact moment of substrate application.

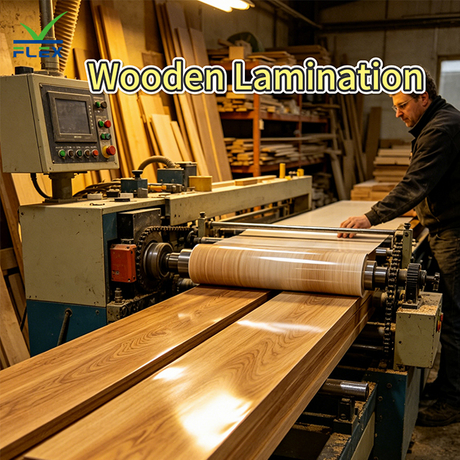

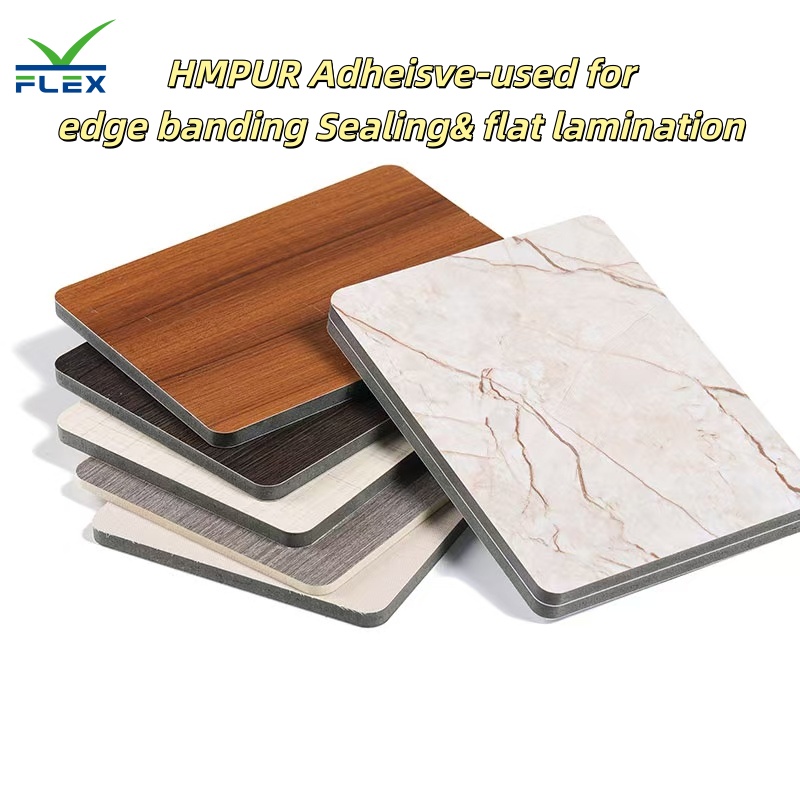

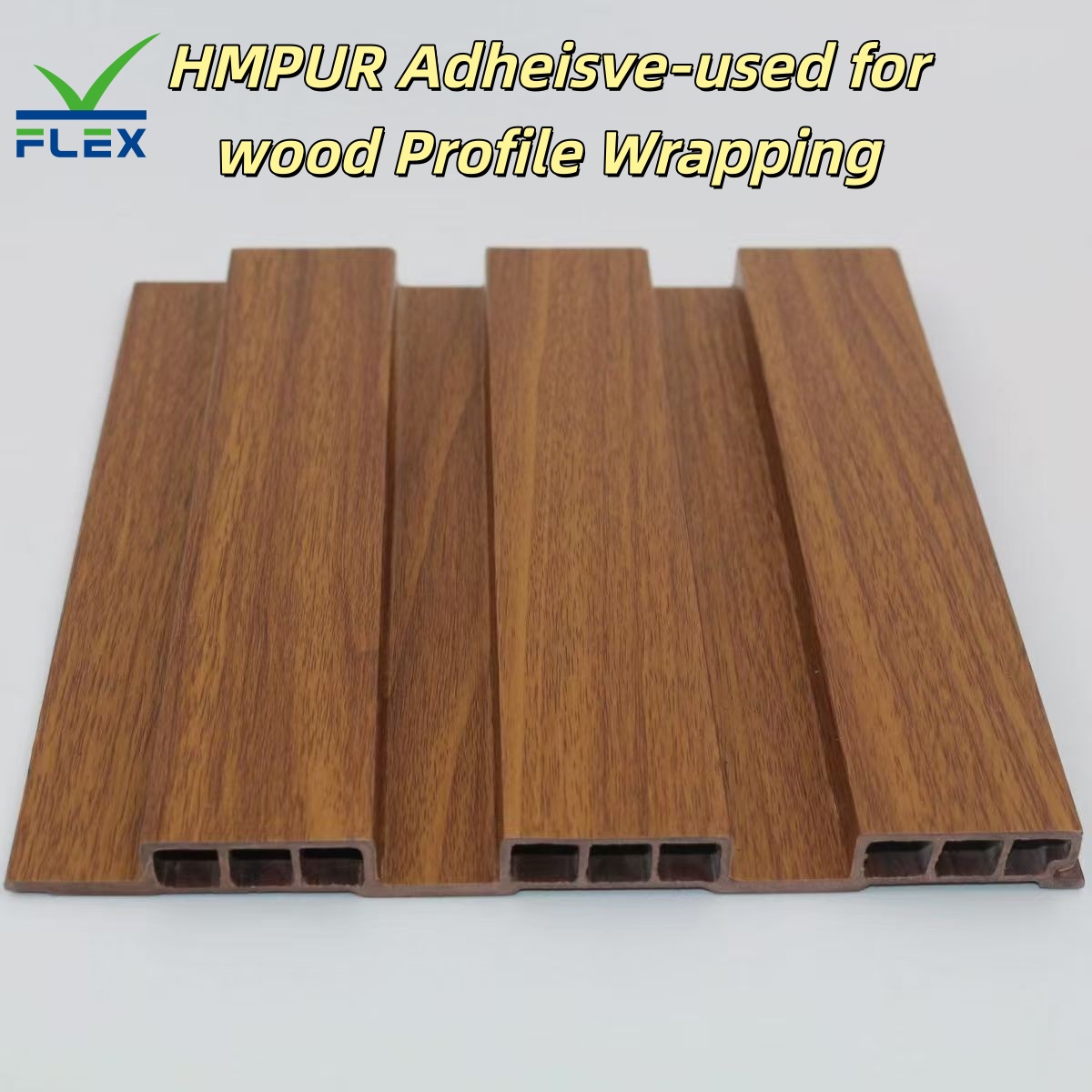

Modern manufacturers must meet rigorous consumer standards. For applications like precision edgebanding, 3D lamination, and profile wrapping, you must achieve completely invisible glue lines. This aesthetic requires lower application temperatures. You typically run PUR between 120–140°C. Operating at this thermal profile prevents melting thin PVC or ABS edgebands. Modern PUR reactors natively support and regulate these precise temperatures.

Core Components and Mechanics of Modern PUR Equipment

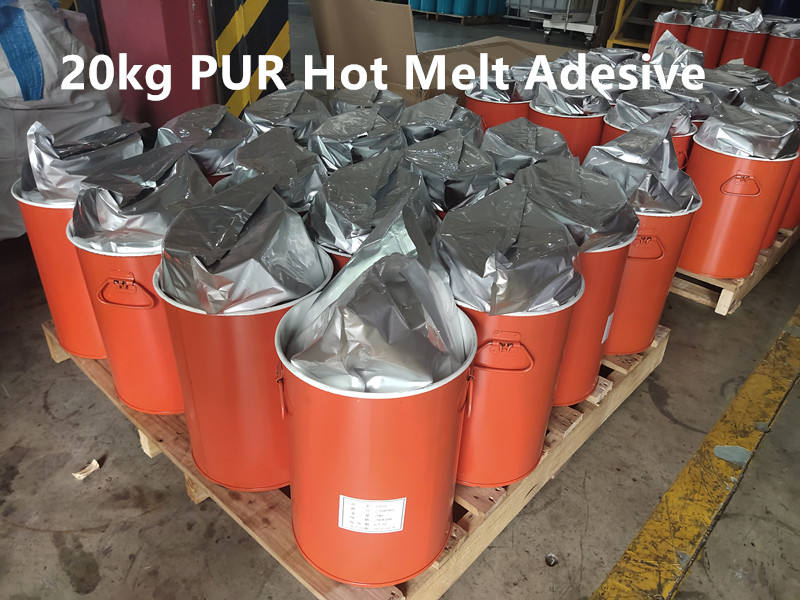

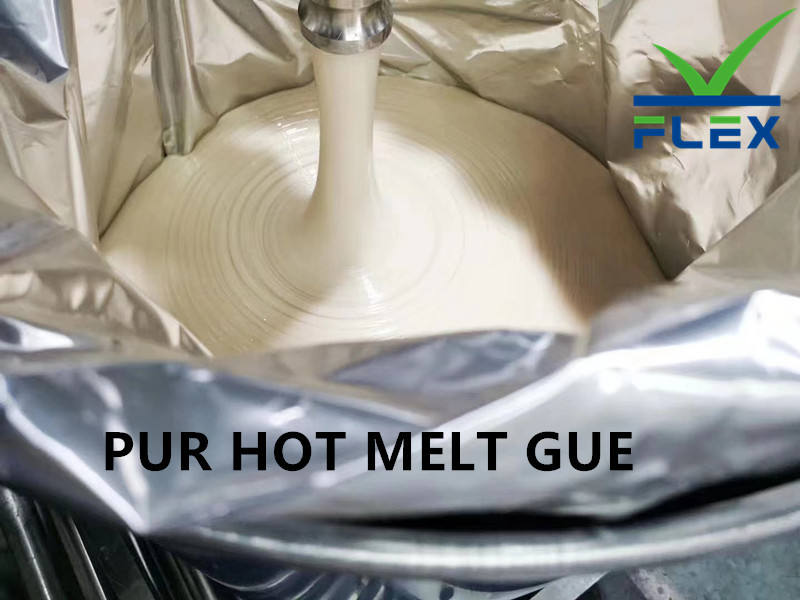

Unlike open hoppers, PUR reactors utilize specialized heated platens. These platens melt only the top layer of the adhesive inside a foil-lined drum. Manufacturers commonly use 2kg, 20kg, or 200kg drum sizes. This precise melt-on-demand approach prevents thermal degradation of the remaining adhesive block below. It ensures you only process what you immediately need.

Premium reactors also inject dry air or nitrogen into the system. This inert gas blanketing displaces ambient moisture inside the chamber. It completely preserves the chemical integrity of the polyurethane during operational pauses or overnight shutdowns.

High-end models feature multi-zone temperature control. They provide independent thermal regulation for the melting grid, the heated hoses, and the application heads. This independent zoning prevents sudden viscosity fluctuations. If viscosity fluctuates, you suffer from inconsistent bond strength and visible seams.

Consider how these components compare to legacy systems:

Evaluating Equipment: Gear Pumps vs. Piston Pumps

Pneumatic piston pumps naturally create a "wink" or sudden pulsation at the end of their mechanical stroke. In precision woodworking, this pulsation causes highly uneven glue lines. These tiny interruptions result in visible seams. More importantly, they create hidden weak spots that routinely fail strict industry tests. If your boards undergo B4 boil testing or require UL10C fire ratings, piston pump pulsations will likely compromise your compliance.

For precision applications like zero-joint edgebanding and honeycomb assembly, positive-displacement gear pumps remain the absolute industry standard. They deliver a continuous, non-pulsating, and highly accurate flow of PUR adhesive. They maintain this steady output regardless of varying glue viscosity throughout the day.

Evaluating modern reactors requires looking closely at dosage control. Servo-driven gear pumps synchronize perfectly with the feed speed of your edgebander or laminator. You can observe this synchronization through a simple operational sequence:

1. The main CNC console calculates the required adhesive volume based on board thickness.

2. The servo-motor receives the real-time feed speed from the edgebander.

3. If the machine slows down due to operator handling, the reactor automatically scales back the adhesive flow.

4. This instant adjustment prevents excessive squeeze-out and subsequent tool fouling.

Dispelling Maintenance Myths and Implementation Risks

A persistent industry concern claims PUR equipment requires daily, labor-intensive cleaning. We must debunk this "daily teardown" myth. In reality, a sealed PUR Hot Melt Adhesive Reactor can often power down for several days without any purging. As long as the system remains completely airtight and blanketed, the adhesive stays dormant.

When a shutdown exceeds the adhesive's specific safe dwell time, modern reactors utilize automated purging protocols. Operators introduce specific chemical cleaning agents. These are often referred to as blue or red purge compounds. The reactor flushes the hoses and heads in under two hours. The purge compound chemically neutralizes the reactive isocyanates, protecting the machinery safely.

The highest implementation risk you will face is operator error. You must overhaul your Standardized Operating Procedures (SOPs) upon installation. Pay close attention to these common risk factors:

• Inadequate Pre-milling: PUR applies a very thin glue line (often 0.1mm). Your wood substrates must be perfectly flat and free of saw marks. Always use well-calibrated diamond tooling.

• Incorrect Moisture Settings: Wood moisture content must align with the adhesive manufacturer's specifications to trigger a proper cure.

• Cross-Contamination: Using EVA cleaning procedures or mixing EVA glue into a PUR reactor will cause permanent, catastrophic equipment damage.

Shortlisting Logic: Selecting the Right Reactor for Your Production Line

You must match the reactor’s melt rate capacity directly to your line speed. Calculate your consumption in kilograms per hour. An underpowered melter causes frustrating line stoppages while you wait for glue. Conversely, an oversized melter risks thermal degradation because the adhesive experiences excessive dwell time on the heating grid.

Verify integration capabilities early in the buying process. Ensure the reactor’s software can handshake seamlessly with your existing CNC machinery. Seamless integration allows your main console to dictate glue dosage automatically based on varying panel dimensions.

While a PUR Hot Melt Adhesive Reactor represents a higher initial Capital Expenditure (CapEx) compared to standard EVA melters, the Return on Investment (ROI) normalizes rapidly. A high-quality sealed system reduces bottom-of-drum waste by up to 95%. Additionally, PUR requires drastically thinner glue lines. This reduces your overall adhesive consumption significantly. Facilities typically see a positive ROI within 12 to 18 months.

Use the following summary chart to structure your equipment evaluation:

Conclusion

Transitioning to polyurethane adhesives represents a strategic necessity for woodworking operations aiming to produce moisture-resistant, heat-tolerant, and aesthetically flawless products. However, your adhesive is only as reliable as the machinery processing it. Investing in a purpose-built PUR reactor ensures you fully capitalize on these chemical benefits without destroying your hardware.

To succeed in this transition, take immediate action on your shop floor. Audit your current line speeds to determine your precise melt rate requirements. Next, evaluate equipment that features precision gear pumps and sealed drum unloading. Prioritize machines offering seamless servo-integration and robust moisture-barrier technology. Finally, dedicate time to retrain your operators on proper pre-milling standards and purging protocols. Proper execution protects the chemical integrity of the glue, drastically reduces material waste, and stabilizes your long-term production quality.

FAQ

Q: Can I retrofit an existing EVA edgebander to run PUR?

A: While some edgebanders can be retrofitted with a secondary PUR pre-melter and specialized slot-nozzle application heads, simply putting PUR into an existing EVA open glue pot is highly discouraged. It will inevitably lead to premature cross-linking and permanent hardware damage.

Q: How long can PUR adhesive remain in the reactor during machine downtime?

A: In a fully sealed, high-quality reactor with dry-air or nitrogen blanketing, PUR can typically remain stable over a weekend. However, exact dwell times depend heavily on the specific adhesive formulation and the equipment's sealing integrity.

Q: Why is pre-milling necessary when using a PUR reactor?

A: Because PUR reactors apply a much thinner glue line (often 0.1mm) than EVA systems, the substrate edge must be perfectly flat and completely free of saw marks. Pre-milling with diamond tooling ensures the tight tolerances required for a truly invisible glue line.

Q: Do PUR reactors require specialized ventilation?

A: PUR adhesives contain isocyanates which can emit vapors during the melting phase. While modern sealed reactors contain emissions far better than open pots, proper workshop ventilation and strict adherence to local occupational health and safety guidelines are definitely required.
