Bookbinding relies heavily on the adhesive holding the pages together. A strong, flexible spine dictates the lifespan of any bound volume. Manufacturers must produce flawless glue to ensure maximum page pull strength. Consistent open times matter greatly for end-users operating high-speed binderies.
Formulating this adhesive involves severe viscosity challenges. Standard chemical mixing tanks routinely fail during hot melt production. Ethylene-Vinyl Acetate (EVA), tackifying resins, and waxes create extreme dead zones inside ordinary vessels. These unmixed areas lead to severe thermal degradation. They also trap large air pockets during the high-temperature melting phase.
You need specialized equipment to overcome these complex manufacturing hurdles. We provide a vendor-neutral, engineering-focused framework below. You will learn how to evaluate and shortlist industrial machinery properly. This guide helps you choose the exact reactor needed for premium bookbinding glue stick production.
Thermal Control is Critical: Localized overheating causes EVA oxidation (yellowing) and degrades adhesive tack; jacketed thermal oil heating is the industry standard for prevention.
High-Torque, Scraped-Surface Agitation: Bookbinding formulas require anchor-type agitators with wall scrapers to handle high-viscosity blending without dead zones.
Vacuum Defoaming is Mandatory: Trapped air compromises the structural integrity and aesthetic of the final glue stick, making high-pressure vacuum capabilities non-negotiable.
Bookbinding adhesives demand precise chemical integration. Hardware directly influences the final polymer structure. You cannot separate the machine design from the adhesive performance.
EVA copolymers blend with tackifiers and waxes to create the final product. The specific ratio dictates extreme viscosity shifts during the manufacturing cycle. The mixture starts as a dry, bulky solid of pellets and flakes. It gradually melts into an incredibly sticky, high-friction mass. Viscosity spikes dramatically mid-process before smoothing out. Standard agitators stall easily under this immense mechanical load. You must select equipment specifically built for these drastic rheological changes. We strongly suggest evaluating motor torque curves before making any hardware decisions.
Reactor hardware directly impacts downstream product quality. Uneven blending causes brittle spines during cold weather. Resins clump together when they lack sufficient shear force. These clumps create microscopic weak points in the book spine. The spine eventually cracks under normal reading stress. Poor temperature control also alters the set time of your adhesive. Degraded wax changes how quickly the glue solidifies. Bindery operators struggle to apply inconsistent glue correctly. Precision mixing eliminates these common bookbinding failures. A well-designed vessel ensures a uniform polymer matrix every single batch.
Premium bookbinding glue sticks demand high optical clarity. Cloudy sticks indicate trapped air or oxidized polymers. This strict aesthetic standard necessitates a highly specialized reactor environment. The main tank must remain absolutely sealed from the outside atmosphere. It requires robust vacuum capabilities to pull out microscopic bubbles. Zero-oxidation conditions prevent the yellowing of sensitive tackifying resins. An amber tint ruins the visual appeal of premium art books and catalogs. You must prioritize an airtight vessel design to maintain optical clarity.

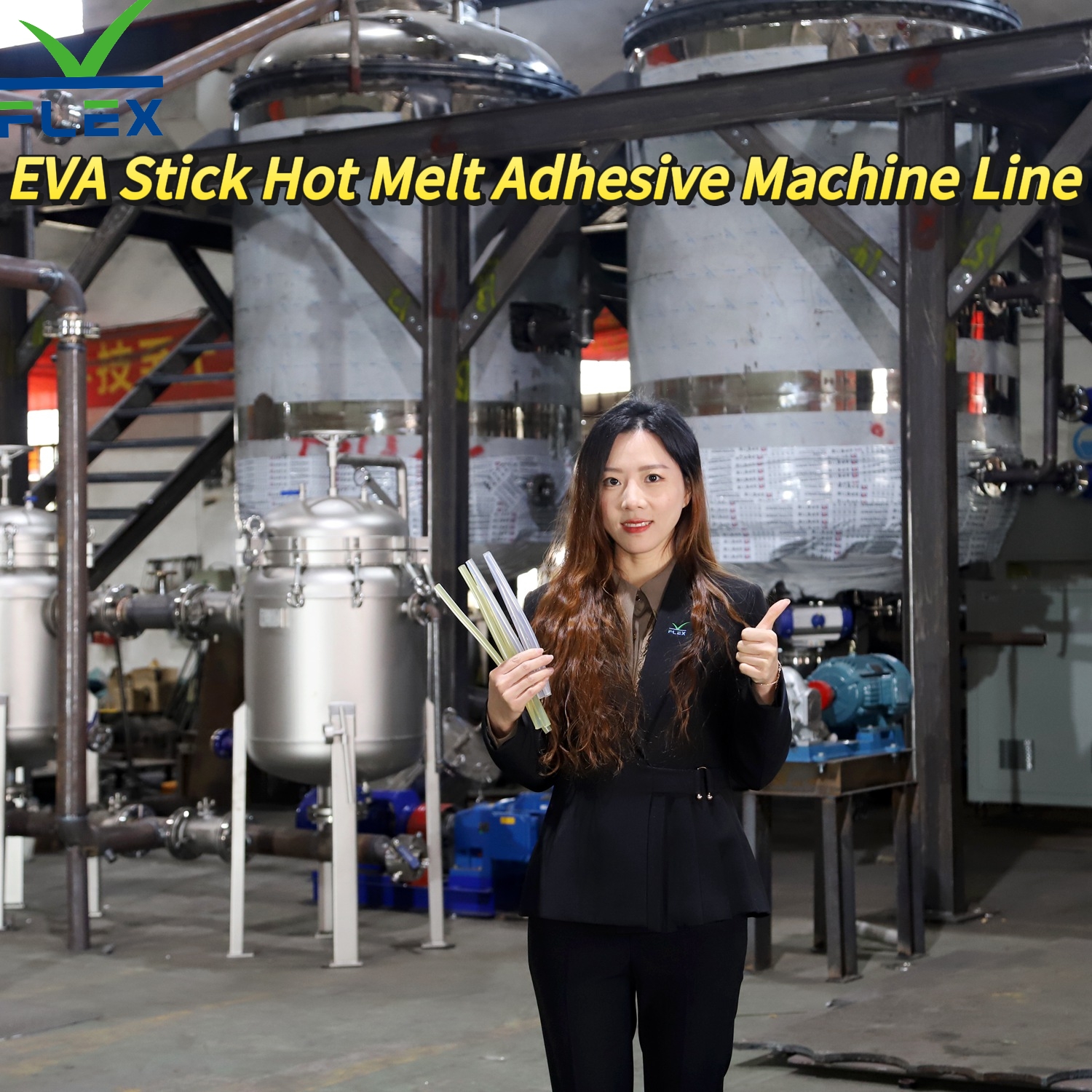

Finding the right EVA stick hot melt adhesive Reactor requires a deep dive into mechanical specifications. You must assess the heating, agitation, and vacuum systems rigorously.
Heat transfer defines the success of a hot melt batch. You must compare jacketed thermal oil heating against direct electric heating carefully. Thermal oil provides the highly uniform heat transfer required for sensitive polymers. It continuously circulates around the entire vessel. This constant movement prevents localized charring along the interior walls. Charring ruins sensitive tackifying resins instantly. Direct electric heating elements often create dangerous hot spots. We always recommend thermal oil systems for consistent quality.
Comparison of Heating Systems for Hot Melt Production | ||
Feature | Jacketed Thermal Oil Heating | Direct Electric Heating |
|---|---|---|
Heat Distribution | Highly uniform across all surfaces | Prone to localized hot spots |
Risk of Charring | Very low (indirect heat transfer) | High (direct contact intensity) |
Temperature Stability | Excellent thermal mass retention | Fluctuates rapidly |
Cool-Down Speed | Slower, requires controlled cooling | Faster, but lacks process control |
High-viscosity mixtures need exceptionally heavy-duty agitation. You should look for dual-ribbon or anchor agitators exclusively. They mirror the shape of the vessel bottom perfectly. They actively scoop heavy material upward into the mixing zone. These agitators must include Teflon (PTFE) wall-scrapers. Scrapers sweep the heating surfaces continuously. They prevent material buildup along the intensely heated walls. PTFE resists extreme heat and aggressive chemical attack.
Variable Frequency Drives (VFDs) act as the mechanical brain here. They automatically adjust torque based on real-time resistance. The batch transitions slowly from solid raw materials to a thick liquid. VFDs protect the primary motor from overloading during this transition. They slow the RPMs down when viscosity peaks. This crucial feature prevents catastrophic gearbox failures.
Void-free glue sticks extrude smoothly. They melt evenly inside commercial bookbinding application machines. Trapped air severely disrupts the downstream application process. Boiling resins release trapped gases constantly. A high-pressure vacuum system lowers the atmospheric pressure inside the tank. Gas bubbles expand rapidly and burst at the surface. This makes high-capacity vacuum pumps non-negotiable.
Your vacuum systems and mechanical seals must handle severe conditions. They typically operate safely between 150°C and 200°C. Standard rubber seals degrade quickly at these extreme temperatures. You must specify high-temperature, double-face mechanical seals instead. Circulating cooling fluid often protects these seals from thermal degradation.

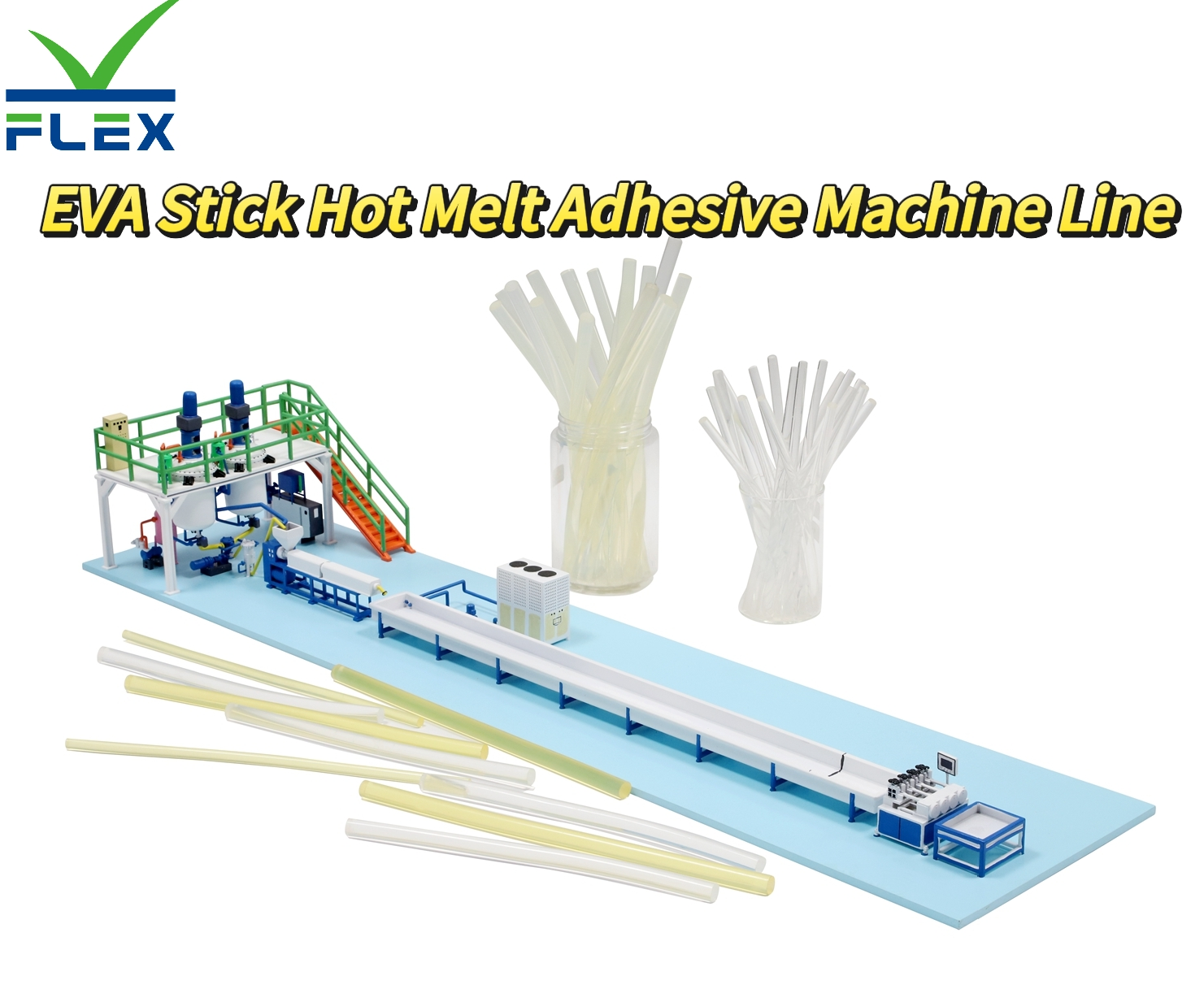

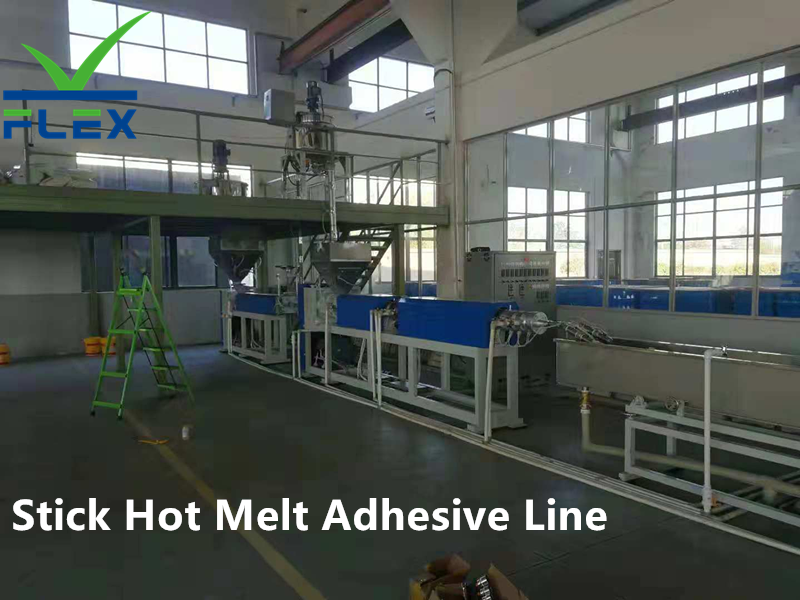

A well-mixed batch means nothing if you cannot discharge it efficiently. You must design your system to integrate smoothly with downstream molding lines.
Calculate optimal vessel capacity based strictly on your factory parameters. Consider your facility shift hours carefully before choosing a size. Factor in lengthy heating times and required defoaming periods. Match this against your cooling line extrusion speeds. A single batch often takes several hours from start to finish.
A 500L vessel suits agile, custom formulation runs.
A 1000L vessel balances medium production with manageable footprint constraints.
A 2000L vessel matches continuous, high-volume, multi-shift production perfectly.
Do not oversize the reactor unnecessarily. Half-empty vessels heat inefficiently and waste massive amounts of energy. Calculate your required output in kilograms per hour first.
High-viscosity hot melt resists gravity stubbornly. Standard bottom valves fail to empty the tank completely. They clog almost instantly once the material begins cooling. You need powerful, high-temperature gear pumps. Extrusion pumps work exceptionally well for moving the thick melt.
These specialized pumps actively pull the adhesive out of the vessel. They push the thick liquid directly into stick-forming molds. You must maintain precise temperatures along the entire discharge route. Heated pipes prevent the material from solidifying in transit. Cold spots in the plumbing cause sudden, disastrous blockages.
Manual control relies heavily on operator guesswork. Operators might rush the sensitive heating phase. Modern equipment features Programmable Logic Controllers (PLCs) instead. They follow pre-set, rigid temperature ramps exactly. Human-Machine Interfaces (HMIs) handle complex recipe management seamlessly.
These automated systems log critical temperature curves automatically. They ensure high batch-to-batch repeatability. Automation heavily reduces your reliance on individual operator intuition. You can trace any downstream quality defect directly back to its data log. This approach ensures absolute consistency across every production shift.
Installing heavy industrial machinery requires meticulous facility planning. Overlooking utility constraints leads to severe deployment delays.
Installation uncovers hidden physical reality checks. Assess your available floor space and ceiling height early. Reactors stand quite tall and require significant overhead clearance. You must load bulky raw materials from the top access ports. Consider installing a dedicated mezzanine platform for your operators.
Auxiliary thermal oil heaters require significant additional floor space. They sit right beside the main mixing unit. Vacuum systems also add to the overall physical footprint. Document the electrical power limits of your manufacturing facility. These massive motors draw heavy amperage upon startup.
Regulatory compliance remains critical for indoor industrial facilities. You must capture and scrub Volatile Organic Compounds (VOCs) safely. The initial resin melting phase releases these harmful fumes. Local environmental regulations demand strict compliance regarding atmospheric venting. Ensure your vacuum exhaust routes through appropriate filtration systems.
Pressure vessels operate under intense internal stress. Strict ASME or CE certifications guarantee structural integrity. These standards protect your workforce from catastrophic pressure failures. Never compromise on vessel safety ratings when reviewing technical specifications.
Hot melt adhesives solidify remarkably quickly once heating stops. Cleaning a massive reactor takes immense physical effort. Look exclusively for flush-bottom equipment designs. They leave minimal residual material behind after discharge. This greatly accelerates the cleaning process between batches.
Mechanical seals and heavy gearboxes need regular preventative inspection. Evaluate their physical accessibility before finalizing any purchase. Mechanics need easy, safe access to the top drive mechanisms. You will frequently switch between standard and low-temperature binding formulations. The reactor must clean easily to prevent dangerous cross-contamination.
Choosing a manufacturing partner requires looking far beyond the sales brochure. You need rigorous proof of mechanical capability.
We strongly warn against inexperienced equipment builders. Some vendors cannot provide material-specific testing data for highly viscous polymers. You must demand a comprehensive Factory Acceptance Testing (FAT) protocol. Run this critical test using your actual, proprietary raw materials.
Shipping your specific EVA pellets and resins to the vendor proves their claims. It verifies the machine handles your exact target viscosity. Observe the mixing dynamics in person if possible. Check the final optical clarity of the extruded sample thoroughly.
Evaluate the long-term operational impact of the equipment. Factor in daily electrical energy consumption rates. Calculate the typical replacement intervals for expensive mechanical seals. Review the Service Level Agreement (SLA) terms for emergency technical support.
Long equipment downtimes destroy manufacturing delivery schedules. Reliable vendor support minimizes these painful operational disruptions. Check their inventory levels for critical spare parts. Fast access to replacement pumps and VFDs keeps your line running smoothly.
We highly recommend creating a standardized Technical Requirement Document (TRD). Complete this vital step before requesting any formal quotes from vendors. Use the TRD to force vendors to address your specific constraints.
Define your exact viscosity range at the maximum operating temperature.
Determine the precise batch size required to meet your daily production quotas.
Document the maximum electrical power limits available at your facility.
Specify the required structural certifications for pressure vessel compliance.
Detail the exact dimensions of your available floor space and ceiling clearance.
Choosing the right reactor remains a strict balance of thermodynamic control and mechanical reliability. Formulating high-quality bookbinding glue demands precision at every stage. Your machinery must handle extreme viscosity spikes while preventing localized resin degradation.
Investing in heavy-duty scraped-surface agitation ensures a perfectly uniform blend. Implementing high-pressure vacuum systems eliminates trapped air comprehensively. These specific engineering choices directly reduce your downstream product rejection rates. They guarantee the optical clarity and spine flexibility end-users demand.
We strongly encourage buyers to consult directly with specialized equipment engineers. Ask them to run a pilot-scale batch using your specific formulation. Witnessing the thermodynamic process firsthand removes the guesswork from your procurement strategy.
A: PUR reactors feature extreme moisture isolation using expensive nitrogen blanketing. This adds unnecessary complexity for processing standard EVA. EVA simply requires higher continuous heating and robust wall scrapers. It also relies on specific extrusion gear pumps for stick-forming. Using PUR equipment for EVA overcomplicates your production line and slows down daily maintenance procedures.
A: Yellowing stems directly from localized overheating and prolonged oxygen exposure. Dead zones in the mixture burn against the intensely heated vessel walls. You prevent this chemical degradation by using thermal oil jackets for perfectly even heating. You also need heavy-duty PTFE wall scrapers and a continuous deep vacuum to eliminate oxygen.
A: You should expect a manufacturing lead time of 10 to 16 weeks. This timeline depends heavily on the overall vessel scale and your specific automation requirements. Custom programming for advanced PLC controls adds additional testing time. Plan your facility upgrades early to accommodate these standard industrial manufacturing windows.
