High-performance book spine gluing requires remarkably precise adhesive formulations. These complex formulations demand strict viscosity and open-time parameters to function properly. Standardizing this output begins directly at the manufacturing equipment level. For manufacturers producing hot melt adhesives, investing in a specialized EVA Glue Stick Extruder is a critical decision. This specific machinery dictates your production scale and product consistency. It ultimately secures your market viability in the publishing and binding sectors. Standard plastics equipment simply fails under these challenging conditions. This guide breaks down the essential technical criteria and process controls needed for success. We will explore the implementation risks associated when selecting and operating an industrial extrusion line. You will learn how to optimize cooling footprints, maintain strict dimensional tolerances, and ensure thorough formulation compliance.
 |  |
Equipment Specificity: A standard plastics extruder cannot manage the distinct thermal degradation risks and melt-flow properties of EVA resin combined with tackifiers and waxes.
Cooling Mechanics dictates Footprint: High-capacity extruders require significant facility footprint for specialized water bath cooling lines to prevent stick deformation.
Precision over Volume: For book spine applications, dimensional accuracy and uniform mixing (preventing un-melted resin gels) are more critical than raw output tonnage.
Standardizing hot melt sticks for automated bookbinders means preventing severe mechanical failures during the perfect binding process. You must avoid spine cracking, page pullouts, and frustrating adhesive stringing. The extruder must produce a truly flawless medium every single time. Modern binding machines run at speeds exceeding thousands of books per hour. Any inconsistency in the glue stick disrupts the applicator wheel and stops the entire line. You cannot rely on generic plastics machinery to process these complex adhesive recipes. Perfect binding relies entirely on the uniform structural integrity of the applied glue.
EVA (Ethylene Vinyl Acetate) compounds are highly sensitive to thermal shear forces. Improper extrusion temperatures lead directly to rapid carbonization inside the barrel. This immediately destroys the adhesive strength of the final product. You must monitor thermal stress closely across all heating zones. When you expose delicate tackifiers and synthetic waxes to excessive heat, they degrade permanently. This degradation creates dark gels inside the polymer matrix. These gels ruin the adhesive properties and clog the end-user's melting tanks.
Variations in stick diameter cause immediate feed jams in commercial binding applicators. Your equipment must maintain absolute pressure consistency right at the die head. If a stick measures 11.5mm instead of the specified 11mm, it jams the applicator feeder mechanism. Conversely, an undersized stick slips through the drive gears without feeding. Tight dimensional tolerance ensures smooth feeding and consistent melt rates down the line. A specialized extruder continuously monitors backpressure to keep dimensions perfectly stable.
You stage and feed raw materials through precision hopper systems. These raw materials typically include EVA pellets, tackifying resins, waxes, and various antioxidants. Gravimetric feeding guarantees strict batch consistency. It weighs every single component dynamically before entering the heated barrel. This prevents formulation drift during long, demanding production runs. Volumetric feeders often fail because bulk densities change slightly between raw material batches. Antioxidants must blend perfectly to prevent oxidation during the melt phase.

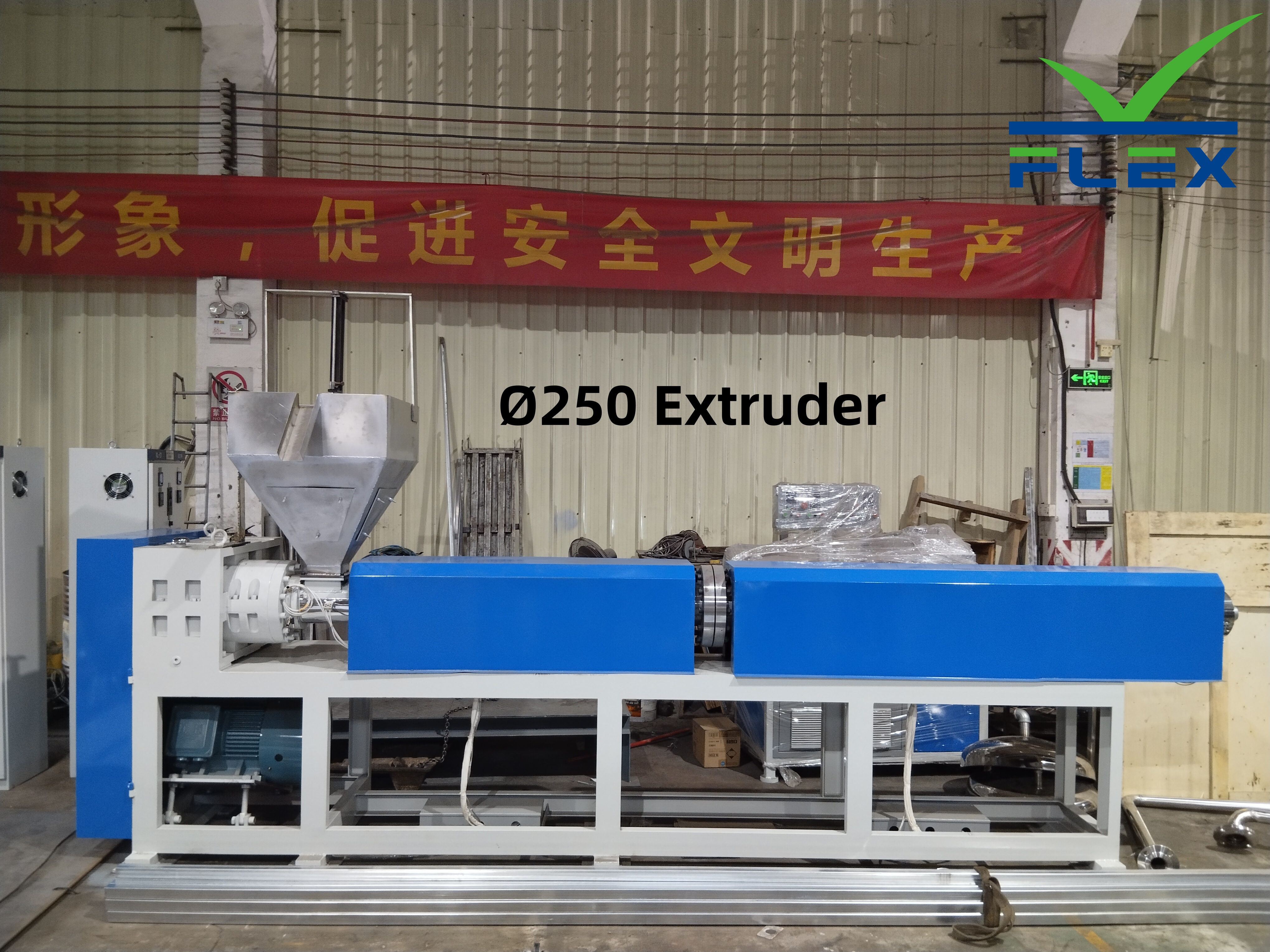

Single-screw setups work exceptionally well if you pre-compound the adhesive beforehand. Twin-screw configurations become absolutely essential if you mix raw components directly inside the barrel. The L/D (Length to Diameter) ratio strictly dictates the mixing quality. High L/D ratios achieve a homogeneous melt without violently degrading the delicate tackifier. You must match the exact screw geometry to your specific viscosity targets. High shear zones require careful engineering to avoid overheating the resin.
Extruder Type | Primary Function | Material State Needed | Mixing Capability |
|---|---|---|---|
Single-Screw | Melting and Forming | Pre-compounded pellets | Low to Medium |
Twin-Screw | Compounding and Forming | Raw individual resins | Very High |
Distribution mechanisms output multiple sticks simultaneously through specialized nozzles. The die head manifold maintains perfectly uniform flow rates across all active nozzles. This prevents inner nozzles from pushing material faster than outer ones. Symmetrical flow channels carefully balance the internal fluid pressure. You get perfectly uniform diameters across the entire production matrix. Many systems incorporate screen changers just before the die head to filter out un-melted gels.
You must integrate chilled water systems step-by-step for proper solidification. Managing the physical transition from molten state to solid stick is highly delicate. You want to avoid creating internal shrinkage voids or surface pitting.
Zone 1 (Warm Water): Prevents thermal shock and excessive skinning on the stick surface.
Zone 2 (Chilled Water): Drops the core temperature steadily using active closed-loop heat exchangers.
Zone 3 (Air Drying): Removes all surface moisture using high-velocity air knives before the cutting phase
 |  |
Align your expected output strictly against your facility’s available cooling capacity. High output paired with inadequate cooling length always yields out-of-spec products. The hot sticks bend, warp, or develop massive internal air cavities. You must calculate the exact cooling distance required for your desired line speed. Do not push production tonnage if your water baths cannot solidify the stick core in time. Hollow cores cause erratic melting behavior in the end-user's glue pot.
Look for advanced PLC (Programmable Logic Controller) systems offering multi-zone temperature regulation. Tight control tolerances of ±1°C are completely non-negotiable for EVA adhesives. Precision heating prevents the EVA polymer backbone from separating from the blended wax. Standard basic controllers often drift too much. This drift causes immediate viscosity changes right at the die head. Reliable solid-state relays and PID control loops ensure thermal stability.

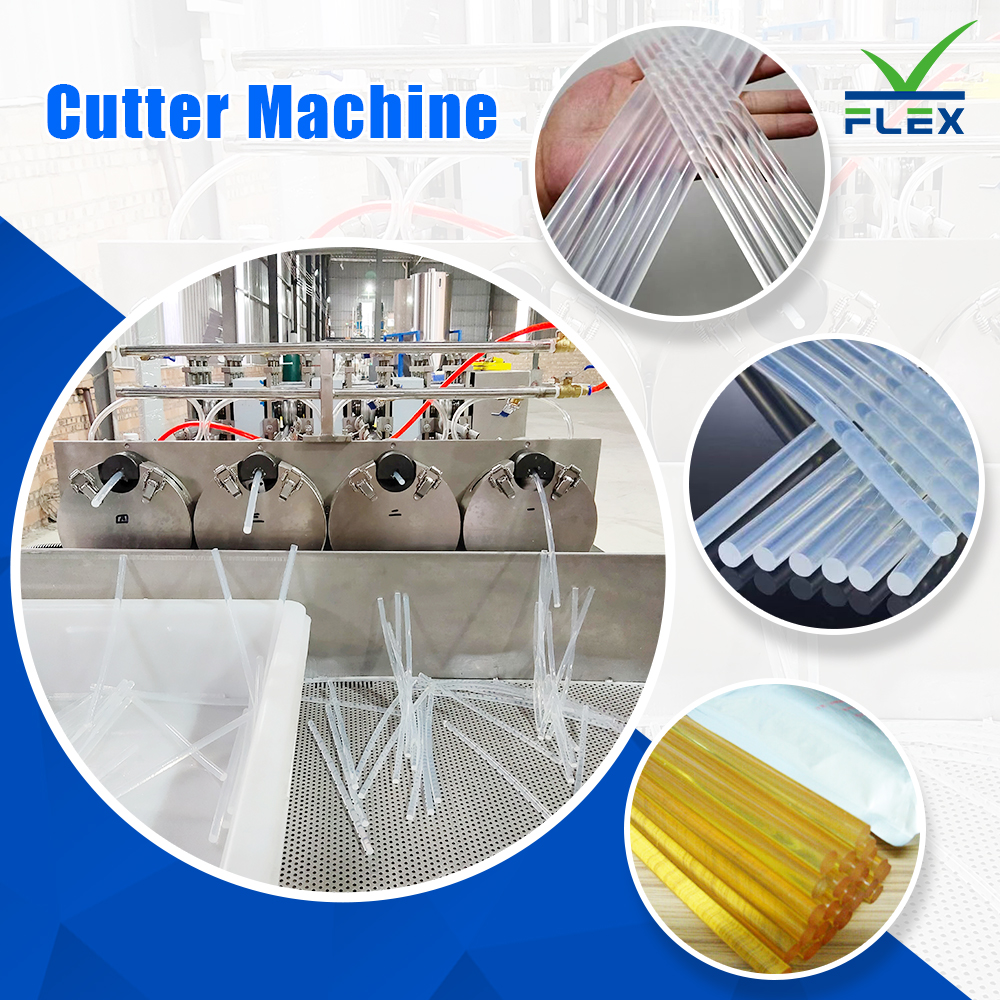

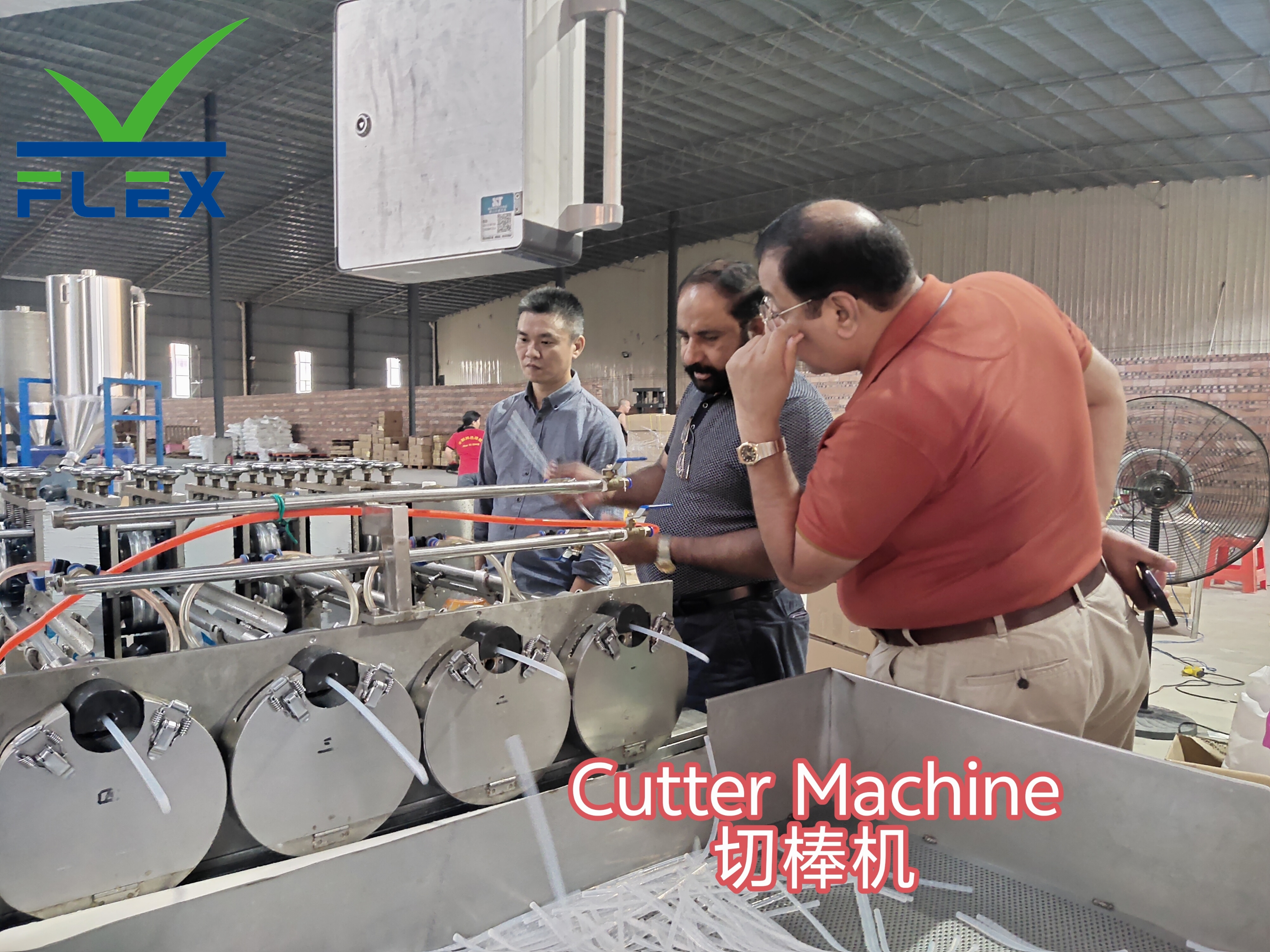

Precision synchronized rotary or pneumatic cutters govern the final stick length. Evaluate exactly how the machine maintains cut-length accuracy at varying extrusion speeds. A dedicated servo motor should constantly drive the cutting blade mechanism. This synchronization ensures every stick fits perfectly into the end-user's automated applicator. Flying knife cutters provide clean, perpendicular cuts without deforming the warm material.
Assess the metallurgy of the heating barrel and the rotating screw. Bimetallic coatings resist the abrasive nature of certain mineral resin fillers. Uncoated standard steel wears down surprisingly quickly when processing hard fillers like calcium carbonate. This internal wear increases the physical gap between the screw flights and the barrel wall. A wider gap causes unpredictable pressure drops and severe diameter inconsistencies.
Modern extrusion lines integrate advanced diameter-measuring laser micrometers. These optical sensors constantly scan the extruded strands in real time. They trigger automatic rejection protocols for any out-of-tolerance sticks. This continuous in-line QA testing completely eliminates slow manual sorting. It guarantees flawless deliveries to highly demanding commercial binderies. If a strand expands beyond the set threshold, the system flags it instantly.
Ensure the extruder flawlessly preserves the intended Technical Data Sheet (TDS) metrics. Excessive heating and severe shear forces can permanently alter the final adhesive properties.
Softening Point: Excessive heat history can lower the baseline melting temperature unpredictably.
Viscosity at 170°C: Violent polymer chain breakage causes the glue to become dangerously thin.
Open Time: Poor internal wax distribution drastically shortens the adhesive working window.
Switching formulations is a harsh, inevitable operational reality. You might switch from a fast-setting summer formulation to a highly flexible winter blend. Assess the machine's internal self-cleaning efficiency thoroughly. Smooth internal flow channels minimize dead zones where old degraded material lingers. Faster purging drastically reduces expensive material waste during these critical production changeovers. Chemical purging compounds often help clear residual tackifiers rapidly.
 |  |
Facility requirements often bring hidden installation challenges that catch production managers off guard. The total line length frequently spans 10 to 20 meters. This immense length physically accommodates the necessary cooling water troughs. You also need heavy electrical load capacities specifically for the rapid heating elements. Ensure your factory floor can support these extensive linear footprints without obstructing logistics.
Robust water chilling infrastructure is absolutely mandatory for stable continuous operations. You cannot run a high-capacity continuous line using standard tap water cooling. You need industrial chillers connected directly to closed-loop heat exchangers. This keeps the water bath at a constant, verifiable temperature regardless of seasonal weather changes. Fluctuating water temperatures lead directly to inconsistent stick shrinkage.
Operators must possess deep technical expertise regarding polymer melt behavior. They constantly tune screw speed, take-off speed, and zone temperatures simultaneously. Poor tuning quickly causes "shark skinning" textures on the stick surface. Incorrect cooling speeds make the outer shell of the sticks too brittle. You rely heavily on specialized operator skill to balance throughput against dimensional stability. Comprehensive training programs remain essential for your crew.
Real-world operations require strictly enforced mechanical maintenance schedules. You must replace sharp cutter blades frequently to avoid jagged, deformed stick ends. You must clean die heads systematically to prevent hardened carbon buildup. You also need to calibrate heating sensors quarterly to ensure strict PLC accuracy. Neglecting these basic maintenance tasks guarantees immediate drops in product quality.
Move strictly past basic marketing brochure claims when selecting an equipment vendor. Demand extensive test runs using your specific EVA bookbinding formulation before finalizing procurement. This Factory Acceptance Testing (FAT) proves real-world processing capability. Watch the machine physically process your exact recipe under load. Measure the output sticks yourself to strictly verify diameter and straightness. Check the motor loads to ensure the machinery operates without straining.
Evaluate the immediate availability of critical spare parts like screws, heaters, and blades. Remote diagnostic support is an incredibly valuable feature for modern extrusion lines. Your chosen vendor should troubleshoot complex PLC faults over a secure remote network connection. Long unexpected downtimes completely destroy your tight production schedules and frustrate your clients. Local service technicians provide an additional layer of operational security.
Ensure the machinery strictly meets relevant regional safety requirements like CE or UL standards. The heavy equipment must include automatic emergency interlocks on all moving guards. Proper off-gassing ventilation is essential directly above the heated die head. Molten adhesives naturally release localized fumes during the extrusion phase. These fumes require immediate, active extraction away from the operator's primary breathing zone.
Sourcing a specialized extrusion line requires rigorous technical evaluation. It represents the absolute foundation of your adhesive product's long-term market reputation. Prioritize manufacturers offering highly transparent FAT processes and robust cooling infrastructure. Verifiable temperature control precision easily outweighs the dangerous lure of substandard machinery. High-quality equipment ensures reliable, continuous production runs.
Define your exact target output in kilograms per hour today. Document your strict stick diameter specifications and acceptable physical tolerances clearly. Map out your available facility constraints, paying special attention to maximum cooling line length. Use these precise operational metrics to build a comprehensive technical requirements document for vendor bidding.
A: Lab-scale machines typically process around 50 kg/hr for formulation testing and very small batches. True industrial production lines push continuous outputs ranging from 300 to over 500 kg/hr. However, cooling limits strictly govern these numbers. You can only safely produce what your facility can rapidly and uniformly cool without causing stick deformation.
A: Yes, modern versatile machines handle multiple stick sizes effortlessly. You achieve this using precisely machined, interchangeable die heads. You must also adjust the line haul-off speed and cutter synchronization accordingly. Different stick diameters always require completely different residence times in the cooling water baths to solidify properly.
A: This discoloration directly indicates severe thermal degradation of the polymer matrix. It usually results from excessive residence time inside the heated extrusion barrel. Poor temperature zoning or malfunctioning PLC sensors also cause this localized overheating. You must purge the system completely and recalibrate your heating zones immediately to prevent carbonization.
A: Dedicated forming extruders require pre-mixed, compounded pellets to function properly. They only melt, pump, and shape the final solid stick. Compounding extruders feature complex twin-screw designs with high shear mixing zones. They dynamically blend raw EVA resin, tackifiers, and waxes directly inside the machine barrel before extrusion.
