Consistent viscosity, precise thermal control, and minimal batch contamination dictate profitability in modern EVA (Ethylene-Vinyl Acetate) hot melt adhesive manufacturing. Maintaining these strict production standards requires specialized machinery built for rigorous daily demands. Unfortunately, legacy or inferior-grade reactors constantly struggle to meet these benchmarks. They often fail to provide even heat distribution and complicate cleaning processes between batches. Such inadequacies directly cause degraded adhesive performance, frustrating delays, and costly production downtime.
Upgrading your facility is no longer optional; it is a critical necessity. We will evaluate why transitioning to a stainless steel reactor remains a strict requirement for scaling high-viscosity hot melt production. You will discover the exact engineering benefits, tangible efficiency gains, and vital procurement criteria needed to make an informed equipment upgrade. Ultimately, mastering these equipment variables ensures your manufacturing line produces flawless adhesives batch after batch.
 |  |
Thermal Stability: Stainless steel ensures uniform heat distribution, preventing the thermal degradation of sensitive EVA copolymers and tackifying resins.
Downtime Reduction: Smooth, non-corrosive interior finishes drastically reduce cleaning times during formulation changeovers.
Scalability: Modern stainless setups integrate seamlessly with high-torque agitation and downstream pelletizing equipment.
Lifecycle Value: Higher initial CapEx is offset by lower maintenance costs, fewer rejected batches, and extended equipment lifespan.
Manufacturers often push aging infrastructure past its intended limits. Relying on outdated industrial adhesive equipment introduces severe operational bottlenecks. We see this frequently when plants attempt to run highly viscous modern formulations through older carbon steel vessels. The results rarely meet quality control standards.
Carbon steel or poorly coated vessels struggle under the intense structural stress of high-viscosity EVA formulations. Modern adhesive recipes demand heavy-duty processing power. When operators load dense EVA pellets alongside solid tackifying resins, the mixture becomes exceptionally thick. Older reactor walls often lack the necessary structural rigidity. They flex or vibrate under the immense torque generated by the agitator shaft. Over time, this mechanical fatigue causes micro-fractures in the vessel walls. These invisible defects compromise the entire pressure system and pose severe safety hazards.
Heat transfer efficiency remains paramount during hot melt production. Legacy equipment frequently suffers from uneven heating profiles. These inconsistencies create dangerous "dead zones" inside the mixing chamber. Material in these cold zones remains partially solid, while material near the heat source suffers from localized burning. Thermal degradation fundamentally alters the adhesive’s color, turning clear formulations into unwanted yellow or brown shades. Furthermore, burned polymers lose their elasticity and bonding strength. Customers immediately notice this drop in quality, leading to costly returns and damaged reputations.
Raw materials used in hot melt adhesives often exhibit mildly corrosive properties at high temperatures. Tackifiers, waxes, and antioxidants chemically attack unlined carbon steel surfaces over time. This continuous chemical wear strips away the reactor wall layers. The resulting oxidation introduces microscopic rust and metal impurities directly into the adhesive batch. Filtering out these impurities downstream proves incredibly difficult and slows down production speeds. Consequently, severe contamination forces quality control teams to reject entire batches, wiping out profit margins for the day.
 |  |

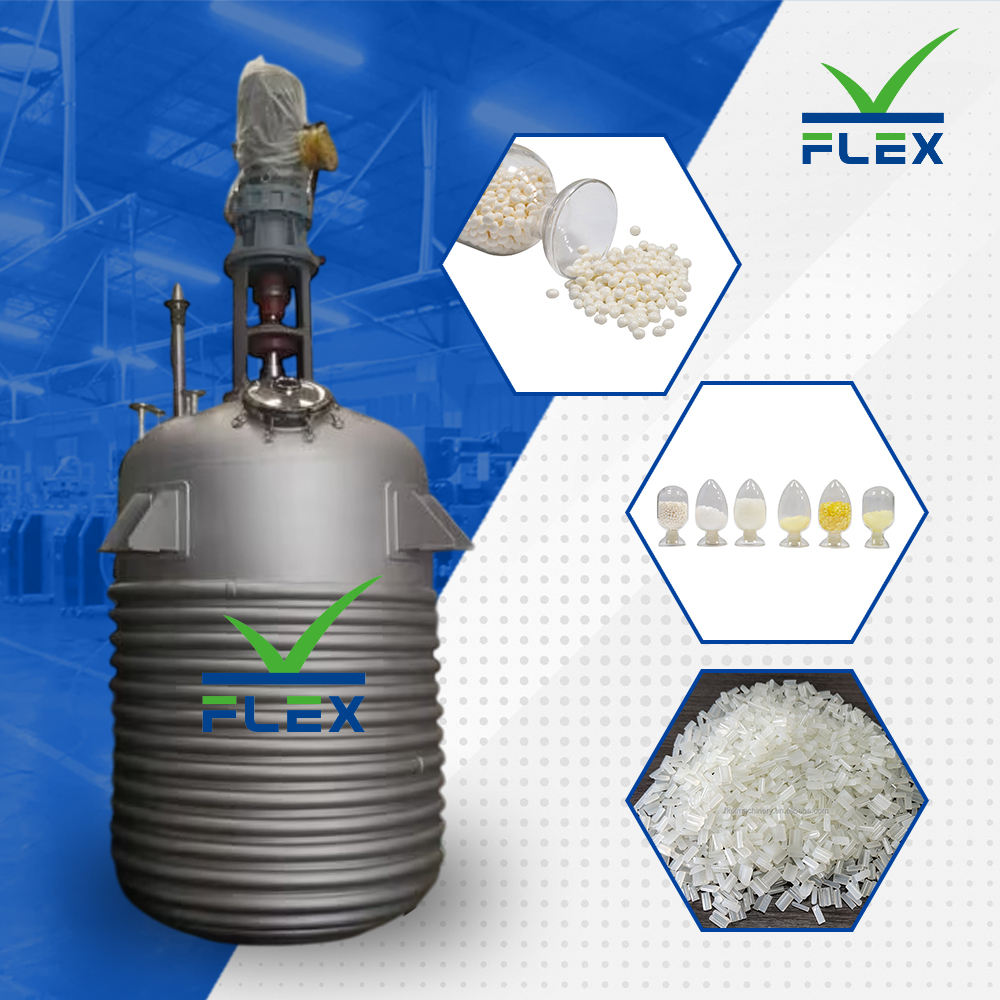

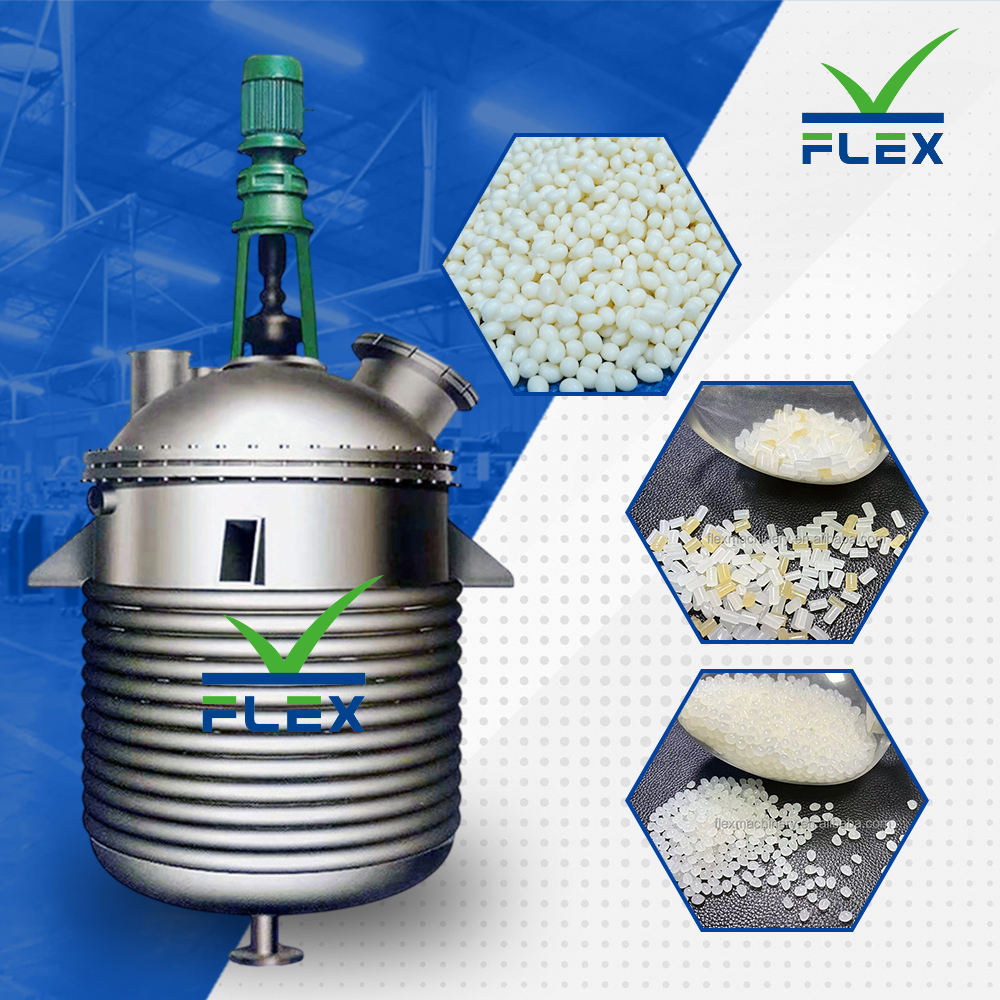

Investing in a modern EVA reactor machine eliminates the fundamental flaws of legacy systems. Stainless steel provides the ideal metallurgical properties for handling sensitive polymer chemistry. Engineers specify this material because it combines immense tensile strength and superior chemical inertness.
We typically see high-performance reactors built from Grade 304 or 316L stainless steel. Grade 316L contains molybdenum, which dramatically enhances its resistance to acidic compounds and chlorides. This alloy safely handles aggressive raw materials, including modified rosins and terpene resins. The metal remains completely unreactive during the melting process. This inert nature prevents chemical leaching and extends the vessel's operational life by decades. You never have to worry about internal rust flaking into your premium adhesive products.
Stainless steel jackets enable incredibly precise temperature regulation. Operators typically must maintain temperatures strictly between 150°C and 200°C. This specific window is critical for phase transitions. If the temperature spikes, the polymer chain breaks down. If it drops, the adhesive will not flow. Modern stainless jackets distribute thermal energy evenly across the entire surface area. This uniformity eliminates hot spots. It ensures every cubic centimeter of the mixture experiences identical thermal conditions, preserving the structural integrity of the polymer chains.
Hot melt production places enormous strain on the equipment architecture. The vessel must withstand the high internal pressures of thermal oil jackets. Simultaneously, it must absorb the intense mechanical torque generated by heavy-duty mixing shafts. Stainless steel possesses exceptional yield strength. It easily handles dynamic loads without warping. Manufacturers design these vessels using thick steel plates and reinforced welding techniques. This rigid construction prevents shaft deflection and protects the mechanical seals from premature failure.
Internal surface roughness directly impacts daily operations. Stainless steel allows for high-grade mechanical polishing. These mirror-like polished interiors prevent sticky adhesive from clinging to the vessel walls. Smooth surfaces facilitate highly efficient wall scraping during the mixing cycle. Furthermore, they allow for rapid and complete discharge of the finished product. When operators empty the reactor, gravity quickly pulls the molten adhesive down the smooth walls, leaving minimal residue behind.
Feature | Legacy Carbon Steel Vessels | 316L Stainless Steel Reactors |
|---|---|---|
Corrosion Resistance | Low; vulnerable to rust and acidic tackifiers. | High; immune to oxidation and chemical attack. |
Surface Finish | Rough; traps adhesive residue. | Polished; facilitates rapid discharge. |
Thermal Distribution | Uneven; prone to localized hot spots. | Uniform; protects polymer chain integrity. |
Structural Rigidity | Moderate; may flex under high torque. | Excellent; easily withstands dynamic loads. |
 |  |
Upgrading your facility delivers immediate financial returns through improved daily efficiency. Production managers quickly notice distinct improvements in turnaround times and utility costs. These operational gains directly improve facility throughput and profitability.
Manufacturers rarely produce just one type of adhesive. You likely switch between low-temperature packaging glues and high-temperature woodworking adhesives weekly. Reduced adhesion to the polished reactor walls means much faster purging. Operators spend significantly less time manually scraping the interior. You simply run a thermal purge, wipe down the smooth steel, and transition to the next formulation. This rapid changeover recovers dozens of lost production hours every month.
Heating large volumes of raw polymer requires massive amounts of electrical or thermal energy. Advanced insulation layered over stainless steel jackets actively minimizes radiant heat loss. The energy stays directed inward toward the adhesive batch, rather than leaking into the factory air. This containment significantly lowers your per-batch energy consumption. Over a full fiscal year, these utility savings accumulate into substantial financial returns.
Off-spec batches destroy profit margins. Wasting raw materials, labor, and energy on a rejected batch is a worst-case scenario for plant managers. Precise temperature control and homogeneous mixing drastically reduce the rate of off-spec product. Stainless steel reactors ensure your viscosity and tack profiles remain identical from the first batch to the thousandth. By eliminating variations, you directly protect your margins and guarantee customer satisfaction.
Best Practice: Always schedule light-colored adhesive batches before dark-colored batches to minimize intensive cleaning cycles.
Common Mistake: Rushing the heat-up phase. Applying maximum heat too quickly causes localized scorching even in premium vessels. Ramp up temperatures gradually.
Procuring a hot melt adhesive reactor requires careful attention to specific engineering configurations. You cannot purchase an off-the-shelf vessel and expect optimal performance. The machinery must match your exact rheological requirements and plant infrastructure.
Mixing high-viscosity fluids requires specialized blade geometry. Standard propeller blades simply carve a hole through thick EVA mixtures without actually blending them. Therefore, wall-scraping anchor agitators are non-negotiable for this application. These heavy-duty frames hug the exact contours of the vessel interior. They feature replaceable PTFE (Teflon) scraper blades. As the anchor turns, the blades constantly peel the boundary layer of adhesive off the heated walls. This action forces the hottest material into the center of the batch, guaranteeing rapid and uniform melting.
You must evaluate your plant's existing utility infrastructure before selecting a heating method. Reactors generally utilize either direct electric heating or external thermal oil circulation.
Electric heating uses elements submerged in an integrated oil jacket. This setup is highly self-contained and excellent for smaller facilities lacking a centralized boiler. It offers a smaller footprint and simpler installation.
External thermal oil circulation pumps superheated fluid from a central plant boiler through the reactor's half-pipe jacket. This method provides unmatched temperature stability for large-capacity, continuous production lines. It responds instantly to temperature fluctuations, making it ideal for processing massive quantities of raw resin.

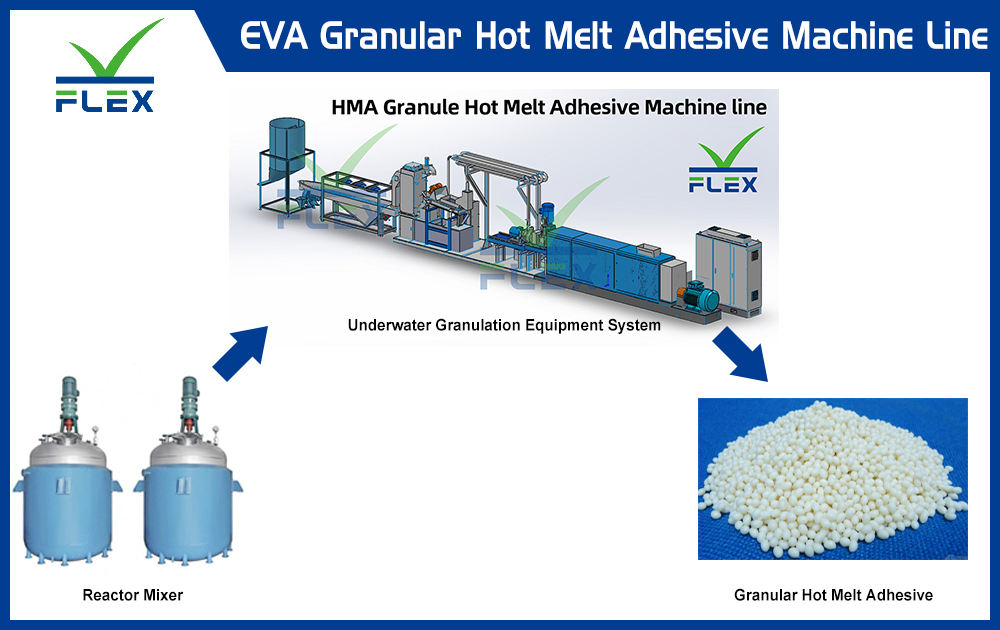

Your reactor does not operate in isolation. It serves as the heart of a larger production ecosystem. Ensuring seamless downstream integration prevents critical bottlenecks.
Discharge Valves: Specify flush-bottom ball valves or piston valves to eliminate dead spaces where unmixed polymers hide.
Melt Pumps: Match the reactor discharge piping to heavy-duty gear pumps capable of pushing thick fluids toward the extrusion head.
Filtration: Install dual-basket strainers between the reactor and the pelletizer to catch any unmelted resin before it damages the cutting blades.
Pelletizing Matching: Ensure the reactor's output volume aligns perfectly with the throughput capacity of your underwater granulators.
Installing heavy industrial machinery involves navigating complex safety regulations and physical plant constraints. Planning for these realities prevents costly installation delays and ensures long-term operational safety.
Heated jackets operate under immense pressure. A catastrophic rupture can release superheated thermal oil, endangering personnel and destroying the facility. You must verify all regional certifications for pressurized heating jackets. In North America, the ASME Boiler and Pressure Vessel Code (BPVC) dictates strict manufacturing standards. In Europe, the CE mark and Pressure Equipment Directive (PED) compliance are mandatory. Always demand X-ray weld inspection reports and hydrostatic test certificates from your equipment manufacturer before accepting delivery.
Stainless steel machinery is incredibly heavy. A fully loaded 5,000-liter reactor can weigh tens of thousands of pounds. You must rigorously assess your facility's load-bearing requirements, especially if installing equipment on a mezzanine level. Additionally, evaluate vertical clearance. Anchor agitators require significant overhead space for removal during maintenance. If you run dual-reactor continuous setups, ensure adequate floor space for maintenance technicians to safely access valves and pumps between the vessels.
Even premium machinery requires disciplined upkeep. Establishing strict preventative maintenance protocols prevents unexpected mechanical failures. Mechanical seals require constant monitoring. If a seal fails, molten adhesive will leak into the bearings, causing catastrophic damage. Technicians must regularly verify agitator shaft alignment to prevent uneven wear on the motor gearbox. Finally, schedule routine lab testing for the jacket's thermal oil. Thermal fluid degrades and "cokes" over time, which forms an insulating sludge that ruins heat transfer efficiency.
Investing in a premium stainless steel reactor serves as a vital risk-mitigation strategy for modern adhesive manufacturers. It systematically eliminates the thermal inconsistencies and contamination risks inherent in legacy carbon steel equipment. By upgrading, you secure product consistency, accelerate batch changeovers, and drastically improve overall facility throughput. The initial capital expenditure pays for itself by minimizing rejected batches and lowering daily energy consumption.
Your next step should be a thorough internal audit. We encourage production engineers to evaluate their current batch times and track monthly downtime caused by cleaning and maintenance. Armed with this data, consult with reputable manufacturers to discuss custom vessel sizing, advanced heating modalities, and specific agitator torque requirements for your unique formulations. Upgrading your infrastructure today guarantees your competitive edge tomorrow.
A: They rely on a synchronized combination of robust hardware. High-torque gearmotors provide immense turning force. The reinforced stainless steel walls resist flexing under dynamic pressure. Specialized wall-scraping anchor agitators continually move the dense material, preventing the mixture from stalling and ensuring a homogeneous blend.
A: When properly maintained, a 316L reactor easily lasts 20 to 30 years. Lifespan variations depend on whether the plant runs continuous or batch operations. Consistent preventative maintenance, especially regarding mechanical seals and thermal oil replacement, ensures the vessel reaches its maximum operational longevity.
A: These reactors perfectly handle Polyolefin (PO) adhesives due to similar thermal requirements. However, Polyurethane (PUR) adhesives require highly specialized moisture-free, vacuum-sealed reactors. Standard EVA equipment lacks the strict atmospheric controls necessary to prevent PUR from prematurely curing inside the vessel.
A: Operators utilize a thermal purge process. They raise the temperature to melt residual adhesive, then drain it completely. The polished stainless steel surfaces prevent material from clinging. Next, PTFE blades on the agitator scrape the walls clean, followed by a minor flush using neutral base resins.
