Views: 0 Author: Site Editor Publish Time: 2026-09-09 Origin: Site
Scaling polyurethane adhesive usage often creates a production bottleneck. Facilities using small adhesive containers may need frequent changeovers, which can interrupt continuous production and affect overall line efficiency. For high-volume PUR adhesive applications, a larger barrel system can help reduce interruptions while maintaining controlled melting and dispensing.

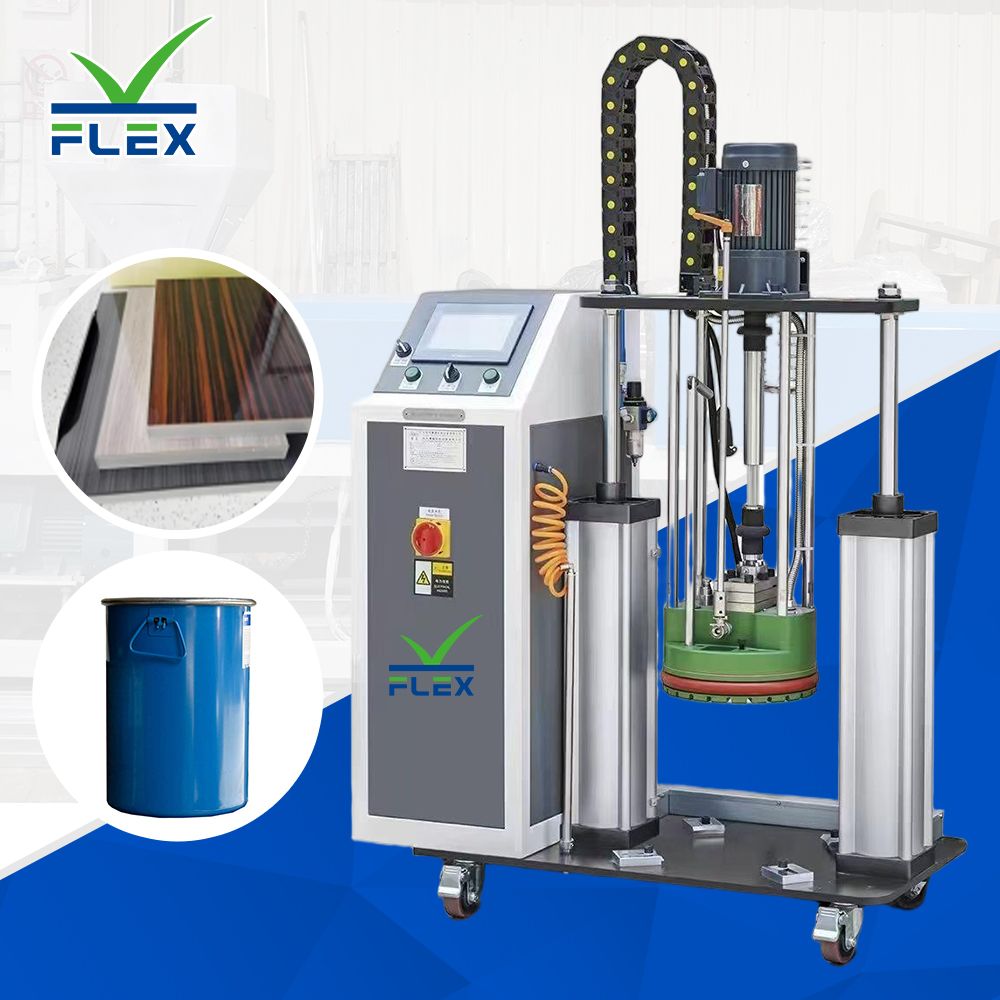

The 200KG/55 Gallon PUR Hot Melt Adhesive Injection Machine is designed for 200kg or 55-gallon PUR hot melt adhesive barrels. It combines progressive heating, air-isolated glue handling, a Teflon protective layer, stepless glue output adjustment, motor protection, and a glue shortage alarm.
This article provides a practical evaluation framework for selecting a 200KG PUR glue machine. It explains the machine’s working features, technical specifications, application suitability, operating process, and key purchasing considerations for industrial adhesive production lines.
 |  |
Capacity and Throughput: The SP-PUR55 is designed for 200kg or 55-gallon PUR adhesive barrels and provides a maximum glue supply range of 60–100kg/h.
Moisture and Carbonization Control: Air-isolated glue handling, progressive heating, and a Teflon protective layer help reduce the risk of premature curing, carbonization, and clogging.
Flexible Output Configuration: The machine supports one or four output lines, allowing it to be matched with different production line layouts.
Precise Temperature Control: Pt100 or K-type sensors provide temperature control precision of ±1°C, with an operating temperature range from normal temperature to 250°C.
Production Protection: A glue shortage alarm and main motor protection functions help operators monitor the machine during continuous production.
Industrial Compatibility: The machine uses a speed-control AC motor gear pump, 380V 3P+N power supply, and 0.5–0.8MPa applicable air pressure.
Identifying the right adhesive supply format is important for production lines that use PUR hot melt adhesive continuously. Small containers may require more frequent manual intervention, while a 55 gallon PUR glue machine is designed to work with a larger 200kg adhesive barrel.
The SP-PUR55 supports a maximum glue supply range of 60–100kg/h, making it suitable for medium- to high-volume industrial applications. The actual operating output should be adjusted according to the adhesive specification, application method, bonding material, and production speed.
Process stability is another important consideration. The machine uses progressive heating and controlled temperature management to melt PUR adhesive gradually. Its air-isolated glue handling design helps reduce unnecessary exposure during melting and dispensing, while the Teflon protective layer helps reduce carbonization and clogging.
For production lines with different equipment layouts, the machine can be configured with one or four output lines. This provides flexibility for woodworking, textile lamination, automotive interior bonding, packaging, and household appliance assembly.
Understanding the main components helps buyers evaluate whether a PUR glue melter is suitable for their adhesive and production process.
The SP-PUR55 uses progressive heating to melt PUR hot melt adhesive in a controlled manner. The machine provides temperature control precision of ±1°C and uses Pt100 or K-type temperature sensors.
The operating temperature range is from normal temperature to 250°C. For most PUR adhesives, the recommended operating temperature should be set according to the adhesive supplier’s technical data. The product operation guide gives a reference range of 120–160°C for many PUR adhesives, but the actual setting must follow the specific glue formulation.
PUR hot melt adhesive is sensitive to moisture. The machine uses an air-isolated glue handling design to help protect the adhesive during melting and dispensing.
This feature supports more stable processing and can help reduce quality problems caused by unnecessary exposure during operation. Operators should still follow the adhesive supplier’s storage, handling, and maintenance recommendations.
The machine is equipped with a Teflon protective layer. This layer helps reduce adhesive carbonization and clogging during continuous operation.
To maintain stable performance, operators should avoid overheating the adhesive and should purge the pipeline with suitable cleaning oil after production or before an extended shutdown.
The machine uses a speed-control AC motor gear pump for controlled adhesive delivery. The glue output can be adjusted steplessly according to the bonding process.
The maximum glue supply range is 60–100kg/h. Actual output depends on adhesive properties, temperature, application method, pipeline condition, and production requirements.
The SP-PUR55 supports one or four output lines. This allows the machine to serve different production line arrangements and adhesive application points.
Additional operating functions include:
Glue shortage alarm
Main motor protection functions
Maximum working pressure of 9MPa
Applicable air pressure of 0.5–0.8MPa
IP54 protection rating
 |  |
Different industries have different bonding methods and production requirements. The SP-PUR55 can be evaluated for the following applications.

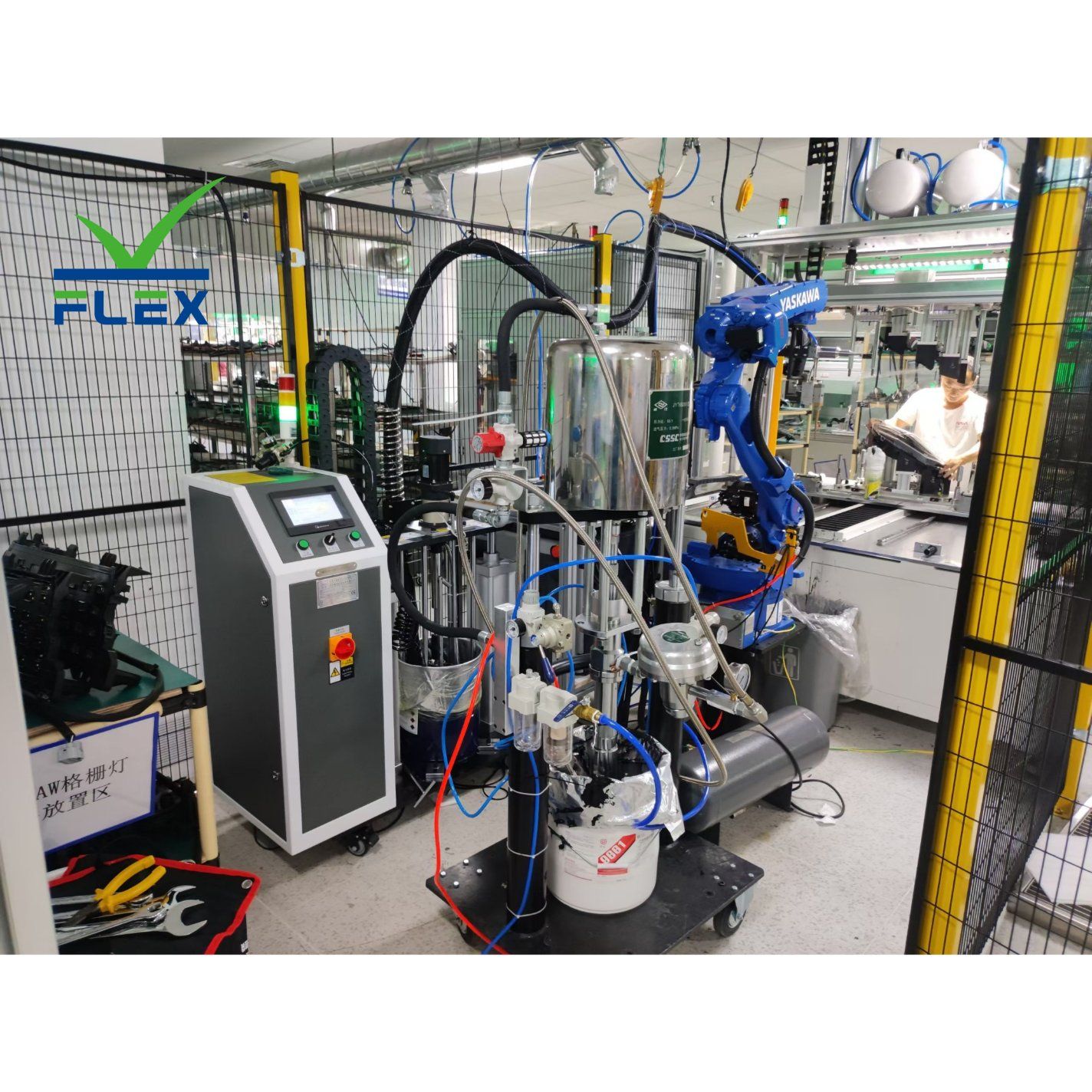

The machine can be used for bonding automotive interior components such as door panels, instrument panels, and headliners. PUR adhesives provide strong bonding performance for applications exposed to vibration, temperature changes, and common automotive operating conditions.
For automotive production lines, buyers should confirm the required output method, adhesive bead size, hose arrangement, and number of dispensing points before selecting one- or four-line output.
The machine is suitable for woodworking and furniture manufacturing applications, including wood coating fitting, edge banding, furniture panels, door frames, and decorative moldings.
The speed-control AC motor gear pump and stepless glue output adjustment help operators match adhesive delivery with the production process. Progressive heating and ±1°C temperature control also support consistent PUR adhesive melting during continuous operation.

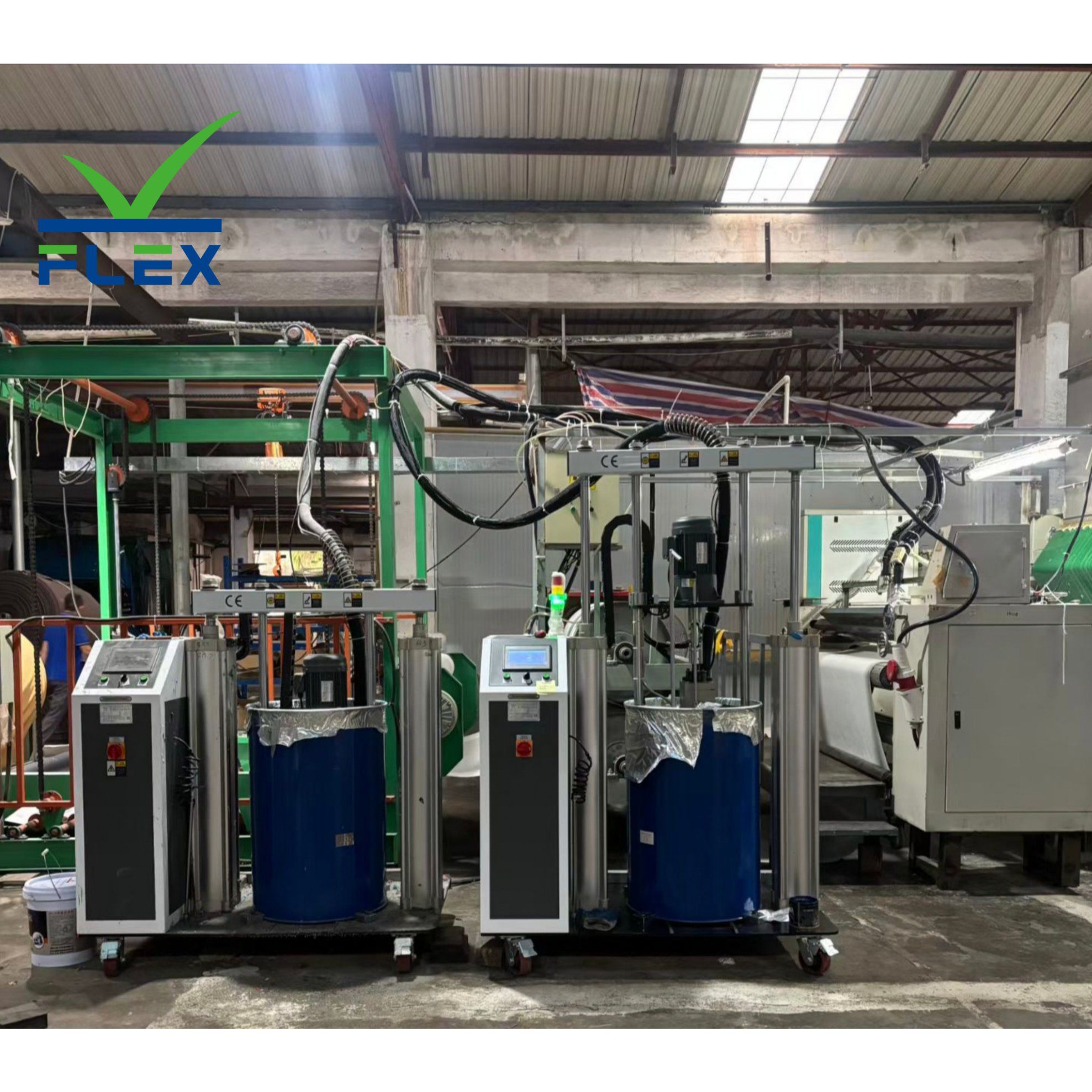

The SP-PUR55 can be used for textile lamination processes involving fabrics, foams, films, and non-woven materials. Controlled adhesive output helps provide even coverage across the bonding area.
Before ordering, textile manufacturers should confirm the required coating width, glue supply rate, adhesive temperature, output line configuration, and connection requirements.
The machine is suitable for PET transparent box production and bookbinding. Air-isolated glue handling helps protect adhesive quality during the melting and dispensing process, while the controlled output supports consistent bonding.
The SP-PUR55 can also be used for assembling plastic, metal, and composite components in household appliance production. Its stable temperature control and adjustable glue supply help meet different adhesive application requirements.
Industry | Primary Application Requirement | Relevant SP-PUR55 Features |
|---|---|---|
Automotive Interiors | Controlled adhesive delivery for panels and interior components | 1 or 4 output lines, 60–100kg/h maximum glue supply, glue shortage alarm |
Woodworking and Edge Banding | Continuous bonding for panels, profiles, and decorative parts | Progressive heating, ±1°C temperature control, stepless glue output adjustment |
Textile Lamination | Even adhesive application for fabrics, foams, films, and non-wovens | Speed-control AC motor gear pump, adjustable output, air-isolated glue handling |
Selecting the correct industrial PUR adhesive machine requires comparing the production line requirements with the equipment specifications.
The SP-PUR55 provides a maximum glue supply range of 60–100kg/h. Buyers should compare this range with actual adhesive consumption rather than relying only on the nominal barrel capacity.
The required supply rate may vary according to the application method, bonding width, adhesive viscosity, temperature, and production speed.
The machine has an operating temperature range from normal temperature to 250°C and provides temperature control precision of ±1°C.
Before purchase, confirm the recommended melting and application temperature of the PUR adhesive. The machine setting should follow the adhesive manufacturer’s technical specifications.
The SP-PUR55 uses a 380V 3P+N power supply and supports an applicable air pressure range of 0.5–0.8MPa.
The customer’s factory should confirm that the electrical system, air supply, and installation environment meet these requirements.
The machine supports one or four output lines. Buyers should select the configuration according to the number of adhesive application points and the layout of the production line.
The output line configuration should be confirmed before ordering because it affects hose arrangement, applicator connection, and installation planning.
The installation size is approximately 1450 × 900 × 1650mm, and the machine weight is approximately 460kg.
The installation area should provide sufficient space for barrel loading, operation, maintenance, and safe access around the machine.
The maximum working pressure is 9MPa, and the machine has an IP54 protection rating. Buyers should consider these specifications together with the operating environment, adhesive pipeline arrangement, and required safety procedures.
Operating a 200KG PUR glue machine requires consistent procedures for heating, dispensing, cleaning, and maintenance. Correct operation helps protect the adhesive quality and reduce the risk of carbonization or pipeline clogging.
Before starting the machine, operators should confirm the air pressure, power supply, barrel installation, and condition of the melting plate. The melting plate should be cleaned to remove residual adhesive before production.
Follow this standard operating process for your 200KG PUR glue machine:
Confirm that the 380V power supply, 0.5–0.8MPa air pressure, and 200kg adhesive barrel are properly connected and installed.
Set the temperature according to the PUR adhesive specifications. Allow the adhesive to melt fully, then test the glue output at the lowest flow rate.
Adjust the glue supply according to the application requirement, monitor the temperature and pressure, and purge the pipeline with cleaning oil after production.
PUR adhesive may cure inside the system if it is exposed to unsuitable conditions or left in the pipeline for an extended period. For this reason, operators should follow an appropriate cleaning schedule and avoid overheating the adhesive.
During operation, the machine should be checked for glue shortage, abnormal pressure, temperature fluctuation, and output instability. The melting plate and pipeline should be maintained according to the machine instructions and adhesive supplier’s recommendations.
Follow a clear evaluation process when selecting a 200KG PUR adhesive injection machine.
First, calculate the actual adhesive supply requirement in kg/h. The SP-PUR55 has a maximum glue supply range of 60–100kg/h, but the correct working output depends on the adhesive and production process.
Next, document the main project requirements, including:
PUR adhesive type
Required melting and application temperature
Required glue supply rate
Number of output lines
Available power supply
Available air pressure
Installation space
Barrel dimensions and loading method
Required application equipment
Request detailed specification sheets and installation information from shortlisted manufacturers. The supplier should confirm compatibility with the customer’s adhesive, barrel format, production speed, and output configuration.
A factory acceptance test can also be considered for large industrial projects. The test should use the customer’s actual PUR adhesive and confirm temperature control, glue output, output line configuration, and continuous operating performance.
If you are ready to evaluate a high-performance industrial PUR adhesive machine, contact Flex Machinery’s engineering team to discuss your application requirements.
A 200KG/55-gallon PUR hot melt adhesive injection machine is designed for continuous industrial adhesive supply from large PUR barrels.
The FLEX SP-PUR55 provides a maximum glue supply range of 60–100kg/h and supports one or four output lines.
Progressive heating, ±1°C temperature control, air-isolated glue handling, and a Teflon protective layer help support stable PUR adhesive processing.
Proper temperature settings, output adjustment, cleaning, and maintenance are essential for reducing carbonization and clogging.
Buyers should confirm adhesive compatibility, power supply, air pressure, output configuration, installation size, and production requirements before purchasing.
Working with the supplier during specification review and testing can help ensure that the machine matches the actual production line.
A: The SP-PUR55 has a maximum glue supply range of 60–100kg/h. The actual working output depends on the PUR adhesive, temperature, application method, and production requirements.
A: The operating temperature range is from normal temperature to 250°C, with temperature control precision of ±1°C. For most PUR adhesives, the recommended setting should follow the adhesive supplier’s specifications.
A: The machine uses progressive heating, air-isolated glue handling, and a Teflon protective layer. Operators should also avoid overheating the adhesive and purge the pipeline with cleaning oil after production.
A: Yes. The SP-PUR55 supports one or four output lines. The final configuration should be confirmed according to the production line layout and application equipment.
A: The machine uses a 380V 3P+N power supply and supports an applicable air pressure range of 0.5–0.8MPa.
A: Operators should check the power supply, air pressure, adhesive barrel installation, and melting plate condition. The temperature should be set according to the PUR adhesive specifications, followed by a low-flow output test.
A: Stop the glue output, purge the pipeline with cleaning oil, switch off the machine, and clean the machine surface. The melting plate and pipeline should be checked regularly for residual adhesive and carbonization.
A: Buyers should provide the PUR adhesive type, barrel size, required glue supply rate, application method, output line requirement, power supply, air pressure, and installation conditions.
