Woodworking demands precise, durable bonds. This requirement makes highly reliable edge-banding glues essential for modern furniture manufacturing. However, producing these specialized formulations presents significant engineering challenges. Their extreme tackiness and highly variable melt indices quickly overwhelm standard extrusion equipment. Traditional cooling and cutting methods frequently fail under these demanding conditions. They cause severe agglomeration, blockages, and costly production downtime.
You need a better approach to handle these sticky, complex formulations without constant interruptions. Enter the underwater pelletizing extruder. It serves as the definitive engineered solution for this exact manufacturing bottleneck. By cutting the melt directly in a temperature-controlled water stream, it solidifies the exterior skin of the polymer instantly. This prevents sticking before it even starts. Technology like this guarantees the continuous, high-yield production of EVA granular hot melt adhesive. In this article, you will learn how these systems function and how they establish an objective baseline for operational reliability, exceptional output quality, and long-term return on investment.
 |  |
Optimal Pellet Geometry: Underwater cutting produces perfectly spherical pellets, reducing contact surface area to prevent clumping and increasing bulk density by 5–10% for superior packaging and transport.
High-Tack Processing: "Die-face-to-water" instant cooling prevents the inherent stickiness of EVA hot melts from causing agglomeration, handling viscosities from 3 to 10,000 Pas.
Production Scalability: System capacities range from 100 kg/h for specialty batches to continuous high-output lines exceeding 1,200+ kg/h.
Process Exclusivity: Underwater systems are the only viable method for processing extremely soft materials (hardness < Shore A 40) or producing uniform micro-pellets (≤ 1mm).
Operators frequently struggle to process high-tack materials using conventional pelletizing methods. The extreme stickiness of these formulations creates distinct processing hurdles. We must examine why older methods fail to fully understand the value of underwater systems.
Water-ring and strand pelletizing systems routinely fail when handling highly viscous woodworking adhesives. In a strand pelletizing setup, operators extrude molten polymer into long strings. These strings must travel through a cooling bath before reaching a rotary cutter. Soft EVA formulations stretch unevenly, sag, or break entirely during this travel time. This leads to frequent, frustrating line shutdowns.
Water-ring systems face different but equally severe issues. The cutter operates in the air right before centrifugal force throws the pellets into a water ring. Sticky EVA smears across the cutting face during this brief air exposure. The resulting pellets merge into massive clumps, requiring operators to halt production and manually clean the cutting chamber.
Underwater-cut pellets inherently form a perfect spherical shape due to surface tension during instant water cooling. This geometric perfection directly correlates to increased revenue. Spherical pellets lack the flat ends and sharp edges found on strand-cut cylindrical pellets. Flat edges easily deform and fuse together when stacked on warehouse pallets.
By physically minimizing surface contact, spheres remain free-flowing even in warm storage environments. Furthermore, spherical pellets pack together much more efficiently. This tighter packing translates to a 5–10% increase in bulk density. Higher bulk density allows you to fit more product into standard bags and containers, directly lowering shipping and packaging costs.
Modern manufacturing requires flexible operational baselines. Underwater pelletizers securely handle exceptionally soft materials below Shore A 40 hardness. This capability represents a critical threshold for premium woodworking adhesives. Standard equipment cannot process materials this soft without catastrophic agglomeration. By adopting underwater cutting, you secure the ability to process premium EVA grades alongside other lucrative hot-melt elastomer blends, including TPU and TPE.
Purchasing an industrial extruder line requires rigorous technical evaluation. You must ensure the chosen system aligns perfectly with your specific polymer formulations. We outline the core dimensions buyers must assess.
Adhesive recipes change frequently based on end-user demands. Buyers must verify the system's ability to maintain stable extrusion across a massive viscosity range. Industry standards dictate that a premium underwater system must handle viscosities between 3 Pas and 10,000 Pas. If your equipment cannot adjust to these swings, you will experience inconsistent pellet sizes and frequent die blockages. Always request trial runs using your most challenging, high-viscosity formulations.
Thermal management at the die face dictates the success or failure of the entire operation. If the die plate cools down too much, the polymer freezes inside the extrusion holes. Reliable systems utilize precise electrical cartridge heaters or internal oil heating channels directly within the die plate. This targeted heating prevents premature material freezing before the cutting blades shear the polymer. You must prioritize die plates built from highly thermally conductive alloys treated with wear-resistant facings.
The interaction between the cutting blades and the die face requires extreme precision. You will encounter both standard and angled cutter designs. Angled blades often push water more effectively away from the cutting edge, reducing localized cooling on the die plate.
Pressure adjustment mechanisms are equally critical. As blades continuously scrape against the hard die face, they inevitably wear down. We strongly recommend systems featuring automated pressure controls over manual ones.
Comparison of Blade Pressure Control Mechanisms | |||
Control Mechanism | Consistency Level | Operator Intervention Required | Best For |
|---|---|---|---|
Manual Adjustment | Low to Medium | High (Constant manual tuning as blades wear) | Small batch, low-budget operations |
Pneumatic Control | High | Low (Air pressure auto-adjusts to wear) | Standard EVA production lines |
Hydraulic Control | Very High | Minimal (Precise, unyielding fluid pressure) | High-output, continuous 24/7 industrial lines |
Selecting the correct machine size directly impacts your operational efficiency. Oversized machines waste energy and material during changeovers. Undersized machines throttle your revenue growth.
You need a realistic framework for shortlisting extruder capacities. Extruder size heavily dictates your output ceiling. Consider these three standard operational scales:
Entry/R&D Scale (~100–160 kg/h): These systems typically utilize a 40mm twin-screw extruder. They fit perfectly into laboratories, pilot plants, or facilities producing highly specialized, low-volume adhesive batches.
Mid-to-High Volume (800–1,200 kg/h): This represents the industry standard for profitable mass production. You will typically pair the pelletizer with a robust 90mm to 95mm twin-screw extruder.
Industrial Maximums: High-end underwater configurations scale dramatically. Advanced systems can reach capacities up to 50 tons per hour. This vastly outperforms the typical 1,000 kg/h ceiling seen in traditional water-ring or strand systems.

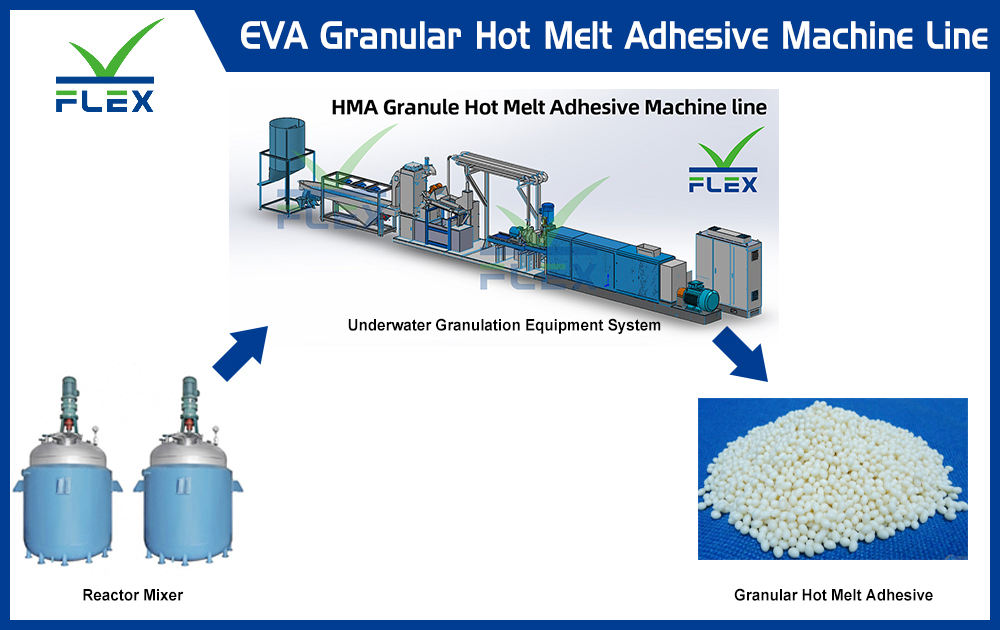

The underwater pelletizer represents only the final stage of your production line. You must pair it with a precisely configured twin-screw extruder optimized for complex mixing. Producing a high-quality EVA granular hot melt adhesive requires blending base resins, volatile hydrocarbon tackifiers, and specific waxes. A high-torque twin-screw extruder ensures the homogeneous dispersion of these ingredients. Once mixed thoroughly, the polymer flows through a melt pump and a screen changer filter to remove impurities before reaching the die face.

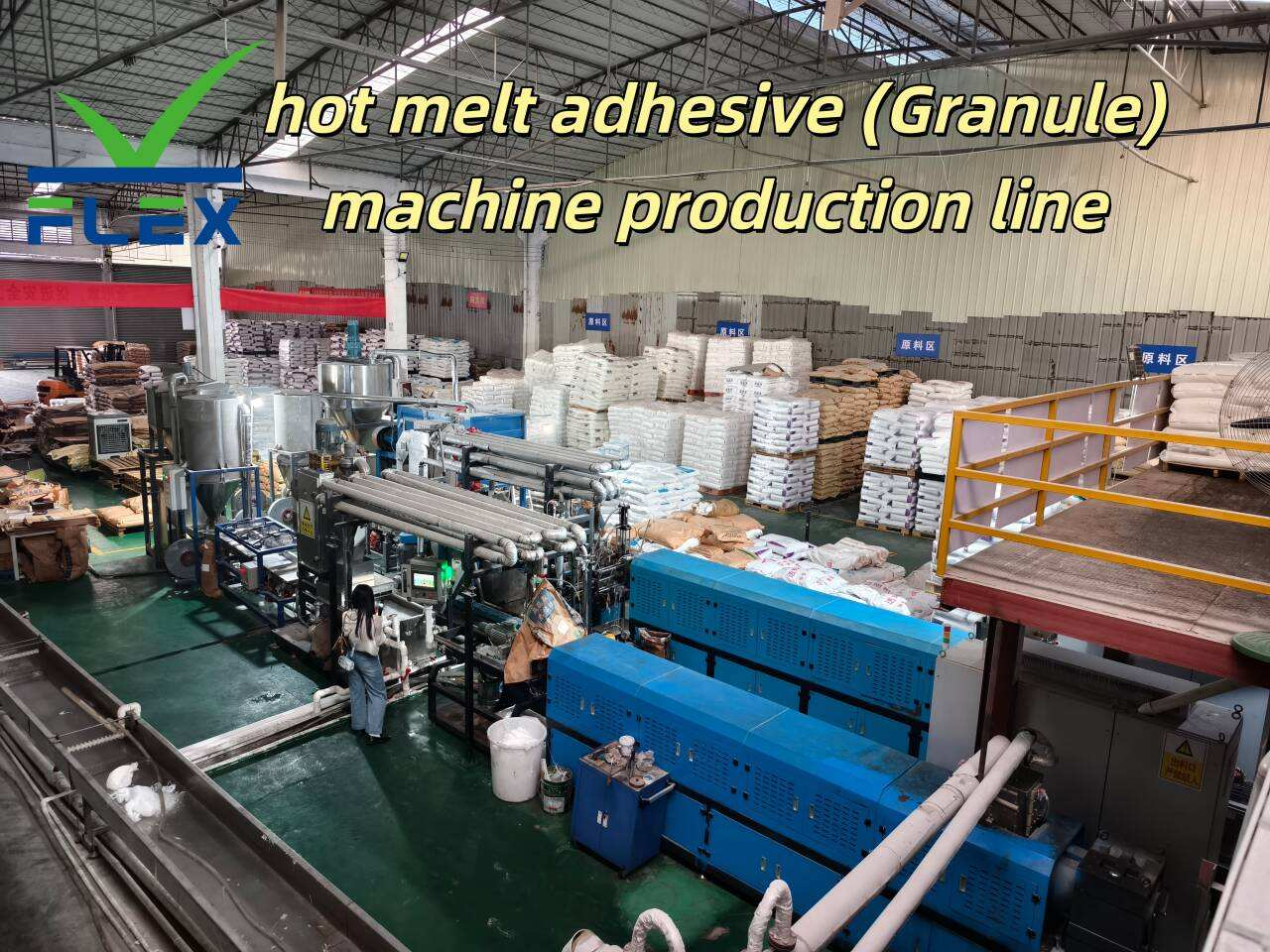

An underwater pelletizing line relies on several integrated sub-systems. These components work together to maintain a stable, continuous flow of material from the extruder to the final packaging station.
The diverter valve sits between the extruder filter and the cutting die. It serves as an essential safety and startup mechanism. During machine startup, polymer temperatures fluctuate. If you send off-spec or partially melted polymer directly into the die plate, you will plug the micro-holes instantly. A hydraulic diverter valve solves this. It routes the initial molten polymer down to the floor or a waste bin. Once sensors confirm optimal temperature and pressure stabilization, the valve seamlessly switches the flow into the die plate.
The closed-loop water system dictates pellet quality. You cannot simply use cold tap water. Sudden, extreme cooling causes thermal shock to the EVA melt, leading to irregular shapes and blocked die holes. Systems require heated water tanks and precise thermostatic controls. The tempered water must ensure immediate skinning of the pellet exterior while keeping the die face hot enough to maintain polymer flow.

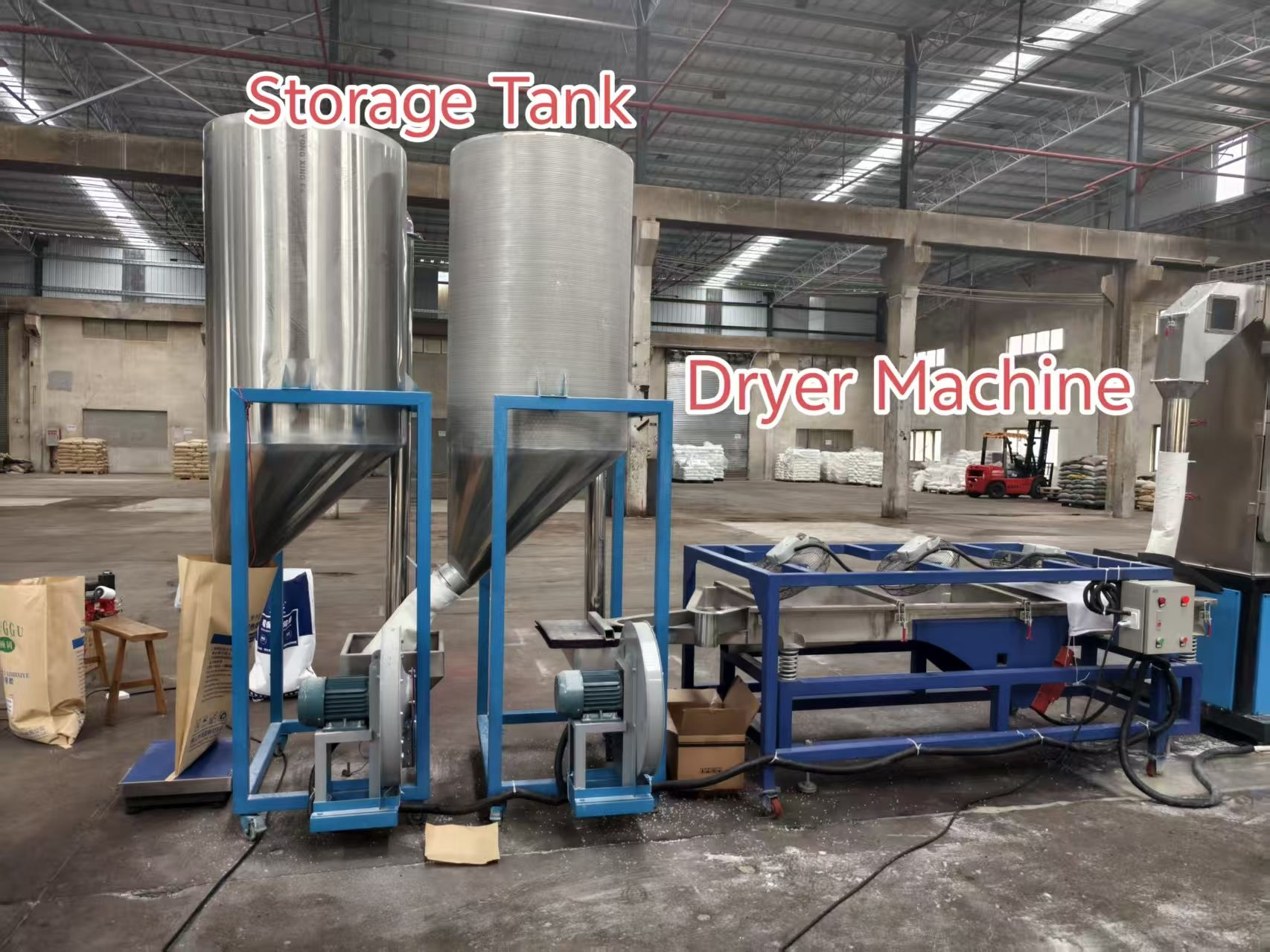

Hot melt adhesives absolutely cannot retain moisture. Any trapped water will cause the glue to boil and fail inside a customer's edge-banding machinery. The drying phase requires rigorous engineering. High-quality lines utilize centrifugal dewatering systems. Look for equipment featuring servo-driven rotary filters that spin moisture off the pellets aggressively. Furthermore, you should evaluate systems equipped with supplementary desiccant blowers. These blowers guarantee zero moisture retention, meeting strict compliance requirements for premium woodworking adhesives.
Even the best-engineered systems face operational challenges. Acknowledging these risks helps you build robust preventative maintenance schedules and train operators effectively.
Die-hole freezing represents the most common operational risk in underwater pelletizing. If the circulation water temperature drops suddenly, or if the polymer feed rate becomes inconsistent, the molten EVA cools too rapidly. It solidifies inside the extrusion holes. Once blocked, you must pause the line, remove the cutting chamber, and manually drill or burn out the cured polymer. Maintaining strict, automated temperature controls across the die and water loop prevents this costly downtime.
Blades and die plates represent high-wear consumables. The cutter spins at high speeds, pressing steel blades directly against the metal die face continuously. This friction degrades both surfaces over time. Hardened steel or tungsten carbide facing is non-negotiable for longevity. You must implement routine visual inspections. Delaying blade replacements leads to poorly cut pellets, creating "tails" or connected pellet chains.
Common Mistake: Operators often crank up manual blade pressure to compensate for dull blades. This extreme pressure gouges the expensive die plate, leading to catastrophic repair bills.
Best Practice: Use pneumatic pressure controls and replace blades on a strict operational-hour schedule, regardless of visual appearance.
Water quality heavily influences cooling efficiency. Industrial tap water contains minerals that precipitate under heat. This scaling coats the inside of heat exchangers and pipelines, acting as a thermal insulator. Furthermore, fine polymer dust accumulates in the water over time. This contamination degrades pellet quality and strains pumps. We recommend installing integrated rotary filtration screens and establishing regular chemical water maintenance protocols to prevent biological growth and mineral scaling.
Investing in an underwater pelletizing extruder fundamentally transforms your manufacturing process. It transitions adhesive production from a messy, unpredictable chore into a precise, high-yield operation. You eliminate the frequent blockages and severe agglomeration issues inherent to traditional water-ring and strand cutting methods.
By leveraging instant water cooling and spherical pellet geometry, you secure higher bulk densities and zero stickiness during transit. Always insist on matching your extruder sizing to realistic production goals, ensuring your twin-screw setup provides adequate dispersion for complex formulations. We highly recommend that buyers request empirical, in-person trials using their specific woodworking adhesive recipes. These trials validate die plate heating performance, blade pressure consistency, and final moisture content before finalizing procurement. Adopting this technology guarantees the reliable delivery of top-tier EVA granular hot melt adhesive to your most demanding industrial clients.
A: Due to the extreme tackiness of hot melts, instant submersion and cutting in a water stream is the only way to solidify the exterior shell before pellets can stick together. Traditional methods expose sticky materials to air or surfaces, causing severe clumping and equipment jams.
A: Yes. Underwater systems uniquely allow for the production of uniform micro-pellets with a diameter of 1mm or less. These micro-pellets melt much faster and more evenly inside the end-user's woodworking edge-bander machinery, improving operational efficiency.
A: Spherical pellets lack sharp edges or flat faces, minimizing the physical surface area that can fuse during storage. They flow much better in pneumatic conveying systems, resist clumping in warm climates, and increase bulk packing density by up to 10%.
A: It sits at the very end of the production line. The setup immediately follows the twin-screw extruder, the melt pump, and the screen changer filter. It acts as the final shaping, cutting, and cooling mechanism before drying.
