1. Solvent-Free PUR Bonding with Superior Durability
Adopts solvent-free PUR adhesive, achieving peel strength ≥3.5N/cm (30% higher than EVA lamination). Resists -40℃ to 120℃ temperatures, water, and oil. VOC-free, compliant with global eco-standards, ideal for sustainable textile production.
2. Provide Formula Technology Support
FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective PUR lamination machine line, but also offers formula technical support, such as various adhesives: PSA pillow-shape hot melt adhesive, PUR hot melt adhesive, Block hot melt adhesive, EVA strip/granular hot melt adhesive, BOPP water-based adhesive, Grafted shoe adhesive , etc.
3. ±0.5mm High-Precision Compounding
Servo-driven edge alignment + PLC control ensures ultra-accurate lamination. Adjustable 5-30μm coating thickness and automatic tension control adapt to cotton, polyester, TPU/PE/PP films, avoiding wrinkles/bubbles.
4. 30m/min Efficient & Energy-Saving Operation
Max speed 30m/min, 40% more efficient than conventional models. 15% lower power consumption, preheating ≤10 minutes. Compact design + quick-change adhesive cartridge minimizes downtime.
5. 10-Year Service Life & Low Maintenance
High-strength steel frame + wear-resistant components for long-term use. Modular design simplifies maintenance; 2-year warranty + global after-sales support reduces operational costs.
6. Multi-Industry Versatility
Enhances fabric waterproof/windproof/breathable performance. Suitable for outdoor apparel, sportswear, home textiles, protective clothing—meets customized B2B production needs.
| Product Parameter | ||

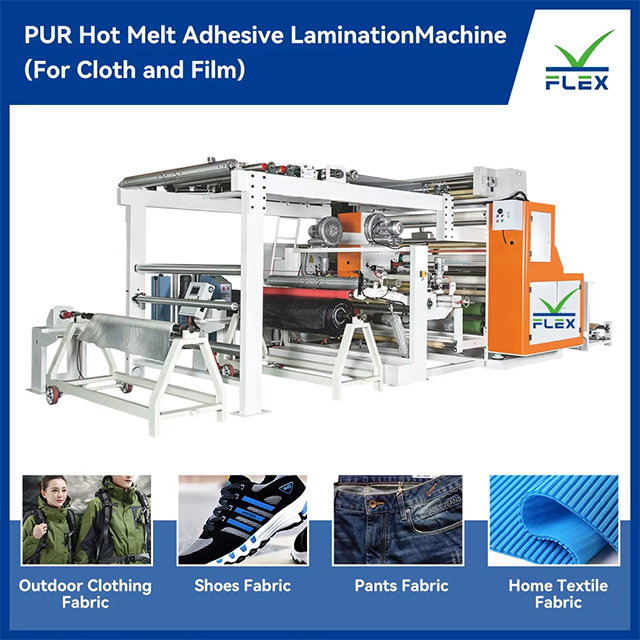

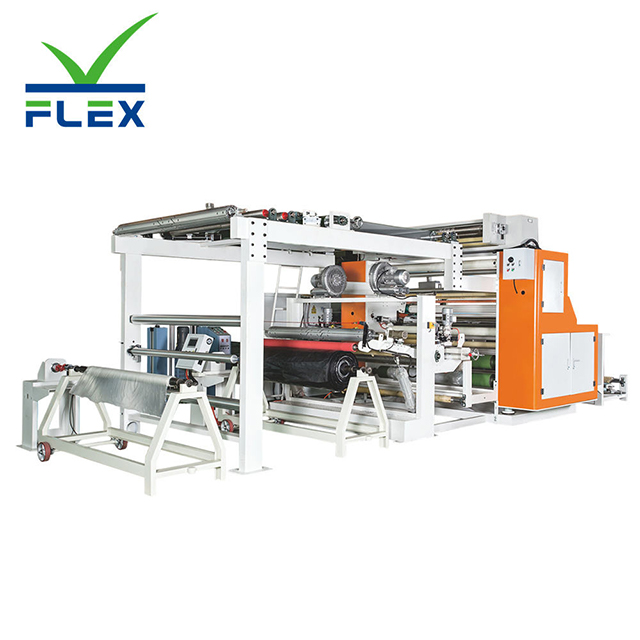

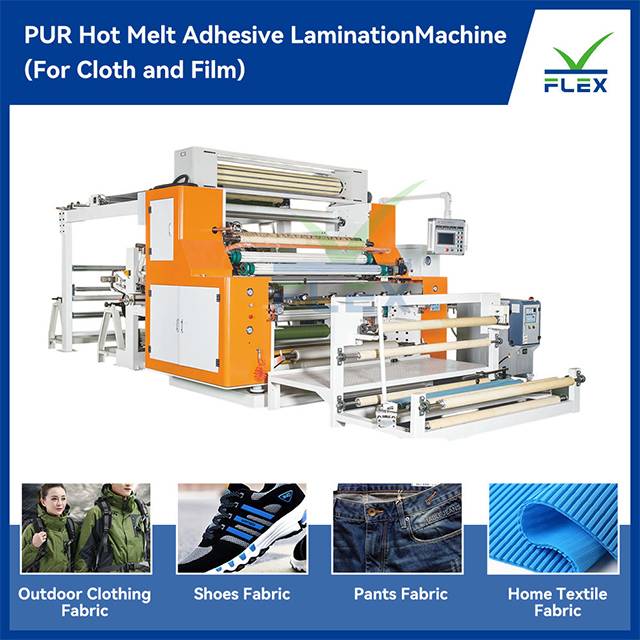

| 1 | Product name | PUR Hot Melt Adhesive Lamination Machine |
| 2 | Equipment model | YD-075D |
| 3 | Machine Dimension | L13000W3200H3000mm |
| 4 | Motor Power | 45KW |
| 5 | Production Line Speed | 1-45YDS/MIN |
| 6 | Electric Current and Voltage | 380V /150HZ/ 45KW |
| 7 | Machine Weight | 7500KG |
| 8 | Material Width | 1800MM |
| 9 | Gluing way | With flat scraper/Dot transfer |
| 10 | Oil Heating Power | 12KW |
| 11 | Power of the Pressure Plate Glue Ieltna Machine | 15KW |

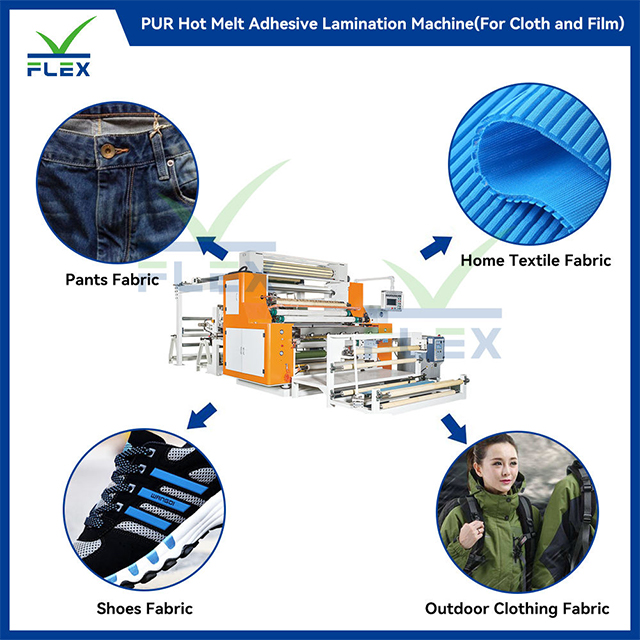

| 12 | Application | Lamination for Garments and underwear Home textiles,Shoe/bag/luggage/Industrial fabrics,Medical,health - care fabrics |
1. Outdoor Functional Apparel Production
Ideal for laminating fabrics with TPU films in (jackets), mountaineering suits, and skiwear. The solvent-free PUR bonding delivers triple functions: waterproof (water pressure ≥5000mm), windproof, and breathable. Resistant to extreme temperatures (-40℃~120℃), it enhances garment durability and comfort, meeting the rigorous demands of outdoor use.
2. Athletic Wear Fabric Processing
Applied in yoga pants and quick-dry sportswear production. Bonds breathable fabrics with moisture-wicking films, boosting elasticity recovery and skin-friendliness. Features wash-and-wear resistance (withstands 50+ industrial washes without delamination), perfectly suited for high-frequency athletic use.
3. Home Textile Upgrading
Suitable for curtains, sunshades, and outdoor awnings. Laminates fabrics with PE/PP films to add light-blocking, waterproof, and UV-resistant properties. Extends product lifespan, remains eco-friendly and odorless, complying with home health standards for residential and commercial spaces.
4. Protective Clothing Manufacturing
Adaptable for medical protective suits and industrial safety wear. Creates a barrier layer with virus-proof, dustproof, and chemical-resistant functions via PUR lamination. Ensures airtight bonding while maintaining wearer comfort, meeting global protective equipment safety certifications.

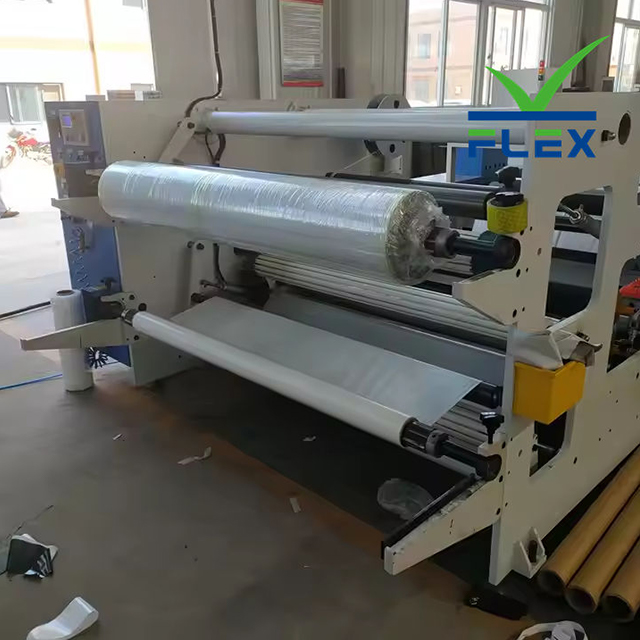

● Pre-Operation Preparation
Check if the machine is powered on and all components (coating roller, heating system, tension device) are intact. Wear protective gloves and goggles. Load fabrics and films onto unwinding shafts, ensuring alignment with edge guides. Pour solvent-free PUR adhesive into the hopper and preheat the system to 120-150℃ (preheating time ≤10 minutes).
● Parameter Setting & Calibration
Via the PLC touchscreen, set lamination speed (5-30m/min), coating thickness (5-30μm), and pressure (0.3-0.8MPa) based on material types. Run a 1-meter test sample to check for alignment, adhesive uniformity, and bonding effect. Adjust parameters if wrinkles or bubbling occur.
● Start Formal Production
Press the "Start" button to initiate automatic lamination. Monitor the operation via the control panel—ensure fabrics/films feed smoothly and the bonded product winds neatly. Avoid overloading the machine; pause immediately if abnormal noises or material jams happen.
● Post-Production Shutdown & Maintenance
Press "Stop" after production. Turn off the heating system and wait for it to cool to ≤60℃. Clean the coating roller with cleaning agent (avoid water) and store unused adhesive in a sealed container. Power off the machine and record operation data for future reference.
1. Q: In addition to equipment supply, does your factory provide other services?
A: FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective machines, but also offers a range of services according to the customer's needs, including adhesive formula technical support, full-process production guidance, as well as overseas machine installation and commissioning services.
2. Q: What materials can the machine laminate?
A: It works with fabrics (cotton, polyester, nylon, spandex) and films (TPU, PE, PP, PVC). Ideal for functional textiles, ensuring stable bonding for both thin and thick materials without damaging textures.
3. Q: How often does the machine require maintenance?
A: Daily: Clean coating rollers and adhesive hoppers after use. Monthly: Check tension systems and lubricate moving parts. Annual: Professional inspection of heating elements—simple maintenance extends service life to ≥10 years.
4. Q: Why do bubbles or delamination occur during lamination?
A: Common causes: insufficient preheating, uneven adhesive coating, or excessive speed. Adjust temperature to 120-150℃, calibrate coating thickness (5-30μm), and reduce speed for thin materials to resolve issues.
5. Q: Is after-sales support available for international clients?
A: Yes. We offer 2-year global warranty, 24/7 online technical support, and on-site service (within 72 hours for major regions). Spare parts are stocked in 5 global warehouses for fast delivery.
6. Q: Can the machine be customized for specific production needs?
A: Absolutely. Customizable options include working width (1.6-3.2m), automatic feeding systems, and online quality inspection modules—tailored to your and material requirements.
 |  |  |  |
 |  |  |  |
