Preparing adhesives for high-speed wood profile and board wrapping demands extreme precision. Flawless thermal management keeps production lines moving seamlessly. Uneven melting triggers severe manufacturing risks immediately. Thermal degradation causes destructive charring inside your equipment. Viscosity fluctuations lead directly to panel delamination, excessive downtime, and ruined substrates.
We provide a transparent, engineering-focused framework here. You will learn how to evaluate and specify the right equipment for your facility. We will explore indirect heating mechanics, critical selection criteria, and operational risk mitigation strategies. By understanding these variables, you can eliminate adhesive bottlenecks and protect your substrate quality.
Jacketed reactors mitigate thermal degradation of EVA granular hot melt adhesive through indirect, uniform heat transfer.
Evaluation must prioritize thermal fluid type (usually diathermic oil for EVA processing temperatures), agitator design, and discharge mechanism compatibility with existing coating heads.
Proper sizing requires calculating not just throughput volume, but the specific melt rate and residency time of the chosen EVA formulation.
Total Cost of Ownership (TCO) relies heavily on maintenance accessibility, specifically the ease of cleaning cured adhesive and replacing mechanical seals.
Direct heating is strictly disqualified for processing granular adhesives. Direct heating elements create intense localized hotspots inside the melting vessel. These hotspots rapidly scorch the polymer chains. Scorched glue loses structural integrity. It forms hard carbon deposits on the vessel walls. These deposits insulate the heat source, reducing efficiency. They also break off and clog your application nozzles. You must avoid direct heating entirely to maintain product quality.

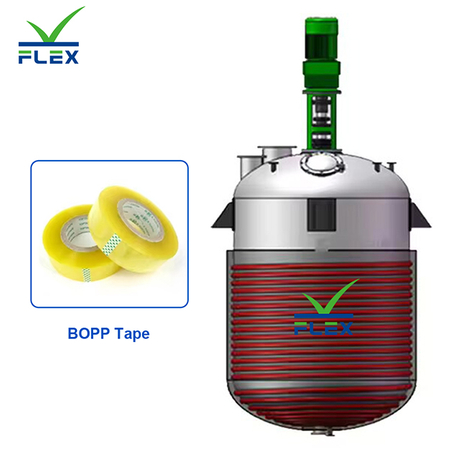

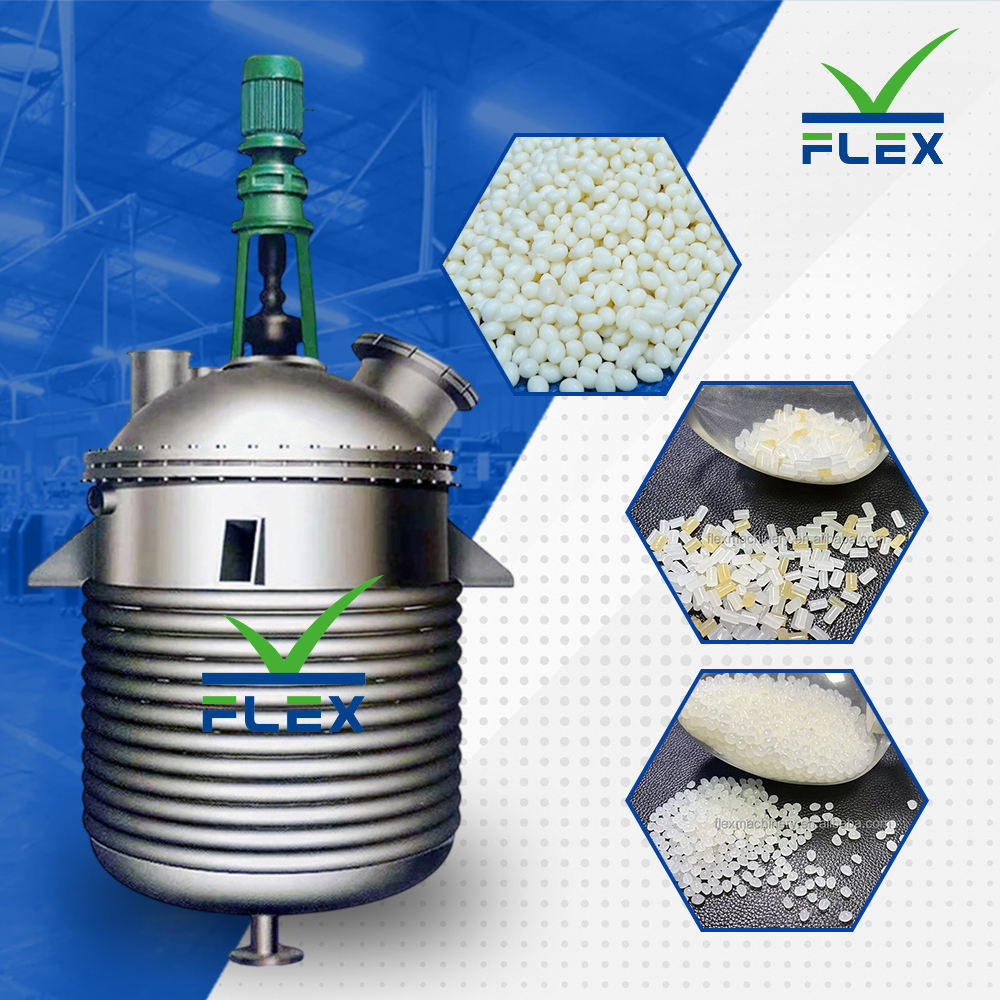

Jacketed reactors solve this problem through indirect heating mechanisms. They use a double-wall construction. Thermal fluid circulates continuously through this jacketed space. Diathermic oil is the most common thermal fluid. It surrounds the inner vessel completely. This design distributes thermal energy uniformly across a massive surface area. It reliably maintains the 180°C–210°C temperature range required for standard wood wrapping glues. Uniform heat transfer prevents degradation completely.
These reactors occupy a critical position in your production workflow. Solid granules enter the top of the reactor. The equipment transitions them smoothly into a homogenous liquid state. It ensures the melt remains completely bubble-free. Any trapped air causes voids in the final wood board lamination. Once melted perfectly, specialized gear pumps push the liquid out. It travels directly to the slot nozzle or roller coater on the wrapping line.
Selecting the right reactor requires careful analysis of its thermal and mechanical specifications.
Diathermic oil excels at transferring heat at high temperatures safely. Alternative mediums like steam or pressurized water often fall short. They struggle to reach 210°C without requiring massive pressure vessel upgrades. You must assess the heater wattage carefully. It must align perfectly with your required heating curve. Insufficient wattage prolongs the startup phase. Excessive wattage wastes electrical energy.
Precision temperature control requires advanced sensor networks. Demand multi-zone PT100 temperature sensors. Place them strategically throughout the jacket and the inner vessel. Pair these sensors with industrial PID controllers. PID controllers anticipate temperature changes. They adjust heater output dynamically. This prevents dangerous temperature overshoots. Overshoots degrade the adhesive instantly.
High-viscosity adhesives require aggressive agitation. Standard propeller mixers fail completely. They merely spin a hole in the thick liquid. You need anchor-style or scraper-blade agitators. Scraper blades physically touch the inner vessel walls. They continuously move material away from the heated surfaces. This physical scraping prevents insulating buildup.
Assess the motor and drive system rigorously. Evaluate the torque ratings carefully. Cold-start agitation requires immense mechanical force. Some facilities prohibit cold-starting entirely to protect the gearbox. Steady-state mixing requires significantly less power. Ensure your drive system handles peak torque demands safely.
You must match reactor volume to your line demand accurately. We calculate optimal reactor volume using several active variables.
Calculation Variable | Unit of Measurement | Impact on Reactor Sizing |
|---|---|---|
Wood Wrapping Line Speed | Meters per minute (m/min) | Determines the baseline volumetric draw rate from the reactor. |
Glue Consumption | Grams per square meter (g/m²) | Defines the exact mass of adhesive leaving the system continuously. |
Substrate Width | Millimeters (mm) | Multiplies the consumption rate to find total hourly output needed. |
Residency Time | Minutes | Dictates how long granules must remain inside to melt completely. |
Oversizing creates massive operational risks. A massive vessel holds liquid glue too long. This causes severe heat aging. Aged glue loses its bonding strength entirely. Undersizing is equally dangerous. An undersized reactor starves the production line. Operators must slow down the wrapping machine. This ruins your daily production targets.
Integrating a new reactor into your factory floor introduces specific logistical challenges. You must prepare your site thoroughly.
Address the physical footprint first. These machines require substantial vertical clearance for loading. Ventilation is absolutely critical. Melting industrial adhesives releases Volatile Organic Compounds (VOCs). You must install dedicated overhead exhaust hoods. Protect your operators from respiratory hazards. Enforce strict thermal insulation standards. The outer skin of the reactor must remain safe to touch. Poor insulation causes severe workplace burns.
Polymer buildup happens eventually. You cannot avoid it entirely. Evaluate the internal polish of the vessel carefully. Demand an electropolished surface finish of Ra < 0.4 µm. Smooth walls resist adhesive sticking naturally. Insist on large, easily accessible access ports. Maintenance teams need physical access for mechanical cleaning. Small access ports extend cleaning times drastically.
Pay close attention to bottom-discharge valves. These valves represent a major vulnerability. They clog constantly if they are not heated. Unheated valves freeze solid when production stops. You must specify independently heated, jacketed discharge valves. This keeps the flow path completely clear.
Facilities often change their adhesive chemistry over time. A reactor optimized for EVA granular hot melt adhesive works perfectly for standard operations. However, it may face limitations later. You might transition to Polyurethane (PUR) hot melt in the future. PUR reacts violently with ambient moisture. It cures irreversibly inside open tanks. Upgrading requires heavy retrofitting. You will need nitrogen blanketing systems. You must install airtight moisture seals. Plan your equipment purchases with future chemistry in mind.
Procuring this equipment requires structured evaluation. Do not rely on basic sales brochures. You need hard engineering data.
Filter your suppliers using a strict vetting matrix. Evaluate them against three primary pillars.
Evaluation Pillar | Minimum Standard Required | Why It Matters |
|---|---|---|
Pressure Vessel Certifications | ASME (USA) or CE (Europe) | Ensures the thermal oil jacket will not rupture under operating pressure. |
Spare Parts Availability | Domestic or regional warehousing | Mechanical seals fail often. Waiting weeks for overseas parts stops production. |
Factory Acceptance Testing | Transparent, documented FAT protocols | Proves the machine hits target temperatures before it leaves the factory. |
Instruct your procurement team to ask for specific engineering files. Gather these before shortlisting any vendor.
Heat Transfer Calculations: Prove the jacket design transfers enough energy to meet your melt rate.
Viscosity-Limit Guarantees: Ensure the agitator motor can handle the thickest glue you process.
Electrical Schematics: Verify compatibility with your facility's power grid and control panels.
Mechanical Seal Specs: Confirm you can buy replacement seals from local industrial suppliers.
We strongly recommend initiating a pilot test. Send your specific granular formulation to the vendor. Ask them to run it through their demonstration equipment. Verify the actual melt rates practically. Confirm the final liquid homogeny yourself. Real-world testing exposes flaws quickly. It prevents costly mistakes before you finalize the equipment specifications.
A jacketed reactor is never a generic commodity. It serves as a highly specified thermal management tool. Its performance directly dictates the bonding quality of your finished wood board. Flawless heating prevents delamination. Proper agitation eliminates voids.
Audit your current production line immediately. Measure your exact melt rates. Track your current rejection rates caused by adhesive failure. Establish a firm quantitative baseline today. Armed with this data, you can confidently contact equipment manufacturers for a detailed technical consultation.
A: The ideal temperature typically ranges between 180°C and 210°C. However, formulations vary significantly between brands. You must always consult the specific adhesive manufacturer's technical data sheet (TDS). Operating outside their recommended parameters causes immediate thermal degradation or inadequate bonding viscosity.
A: Generally, no. A massive technical gap exists between the two. PUR reacts with ambient moisture and cures instantly. Processing PUR requires strictly airtight, moisture-free environments. It demands nitrogen blanketing. Converting an open-top EVA reactor for PUR usually necessitates completely different equipment designs or heavy, expensive modifications.
A: You prevent charring through two critical features. First, you need precise PID thermal fluid regulation to eliminate temperature overshoots. Second, you must install Teflon-tipped scraper blades on the agitator. These blades continuously wipe the heated walls. They physically remove the adhesive before it bakes onto the metal.
A: You should expect a realistic timeframe of 8 to 16 weeks. This varies based on the level of customization required. Highly specialized agitators or custom dimensions push lead times longer. Global supply chain factors concerning specialized gearboxes and PID controllers also affect the final delivery schedule.
