In the high-velocity world of logistics and e-commerce, the race for efficiency never stops. For decades, manufacturers relied on traditional solvent-based or water-based adhesives for courier bag sealing. However, these methods introduce bottlenecks like drying times and environmental concerns. Today, a significant shift is underway, driven by Hot Melt Pressure-Sensitive Adhesives (HMPSA). This technology offers an "instant-grab" capability that is perfectly suited for modern fulfillment centers. The immediate, aggressive tack forms a secure bond the moment pressure is applied. This article explores how integrating HMPSA technology addresses the dual challenges of maximizing production speed and guaranteeing package security, transforming a simple sealing process into a competitive advantage.
Tamper-Evidence: HMPSA provides a fiber-tearing bond on LDPE/PE films, ensuring security.
Operational Efficiency: Integration with an HMPSA Pillow glue machine eliminates drying times and reduces VOC emissions.
Substrate Versatility: Effective across recycled plastics and biodegradable films where water-based adhesives often fail.
TCO Reduction: Lower energy consumption and reduced waste compared to solvent-based systems.
Hot Melt Pressure-Sensitive Adhesives are not just another type of glue; they are engineered materials designed for high performance under specific conditions. Their superiority in courier applications stems from a unique combination of physical properties that older adhesive technologies cannot match, especially on challenging plastic substrates.
The effectiveness of any PSA is governed by the "Performance Triangle," a balance of three critical properties: Tack, Peel, and Shear.
Tack: This is the initial "grab" or stickiness of the adhesive. High tack allows the courier bag flap to seal instantly with minimal pressure, which is essential for high-speed automated lines.
Peel: This measures the force required to pull the adhesive away from the substrate. For permanent seals, high peel strength ensures the bag cannot be opened without destroying the film.
Shear: This is the adhesive's internal strength or ability to resist sliding forces. High shear prevents the sealed flap from creeping open under stress or during temperature changes in transit.
HMPSA is formulated to achieve an optimal balance of these three properties. It behaves like a viscous liquid when applied, allowing it to flow and make intimate contact with the surface. Once pressure is applied and it cools, it acts like an elastic solid, providing durable holding power.
A core scientific principle explaining HMPSA's success is the Dahlquist Criterion. This rule states that for an adhesive to exhibit pressure-sensitive tack, its elastic modulus must be below a certain threshold. In simpler terms, the adhesive must be soft enough to flow and "wet out" the surface it's applied to in a very short time. Courier bags are typically made from low-surface-energy (LSE) plastics like co-extruded polyethylene (PE), which are notoriously difficult to bond. HMPSA formulations are specifically designed to meet the Dahlquist Criterion on these LSE surfaces, achieving superior wetting where water-based adhesives would simply bead up and fail.
The adhesive must be kept at a consistent temperature and viscosity in the melting tank and throughout the application system. Modern formulations, particularly those based on metallocene catalysts, offer exceptional thermal stability. This means they resist charring—the formation of burnt, solid particles—even after prolonged time at high temperatures within the HMPSA Machine Line. Charring is a primary cause of nozzle clogs, inconsistent application, and costly downtime. Superior thermal stability ensures a clean, reliable process shift after shift.
Once a package leaves the fulfillment center, it faces a gauntlet of environmental challenges. These include extreme temperature swings in delivery trucks and the potential for plasticizer migration from the bag's film. Plasticizers are additives that keep plastic flexible, but they can leach into the adhesive over time, weakening the bond. HMPSA formulations are engineered to resist this chemical degradation, maintaining their bond integrity from the warehouse to the customer's doorstep.

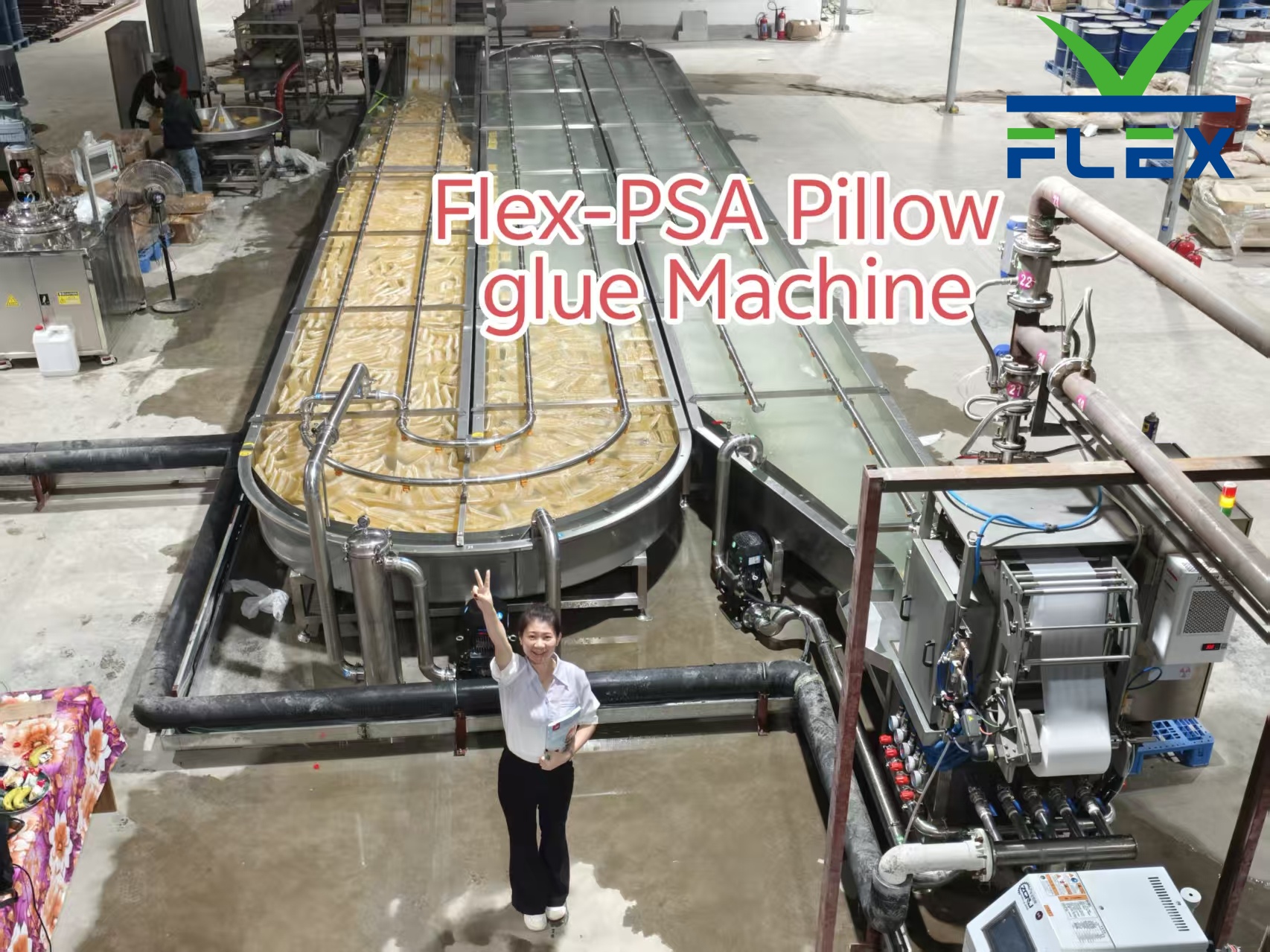

Adopting a superior adhesive is only half the battle; leveraging its full potential requires specialized application equipment. The HMPSA Pillow glue machine is the heart of a modern courier bag production line, designed for precision, speed, and reliability.
An HMPSA machine is not a standalone unit but an integrated part of the bag-making process. It automates the application of the adhesive in one of two common ways:
Liner Application: The machine applies a precise strip of HMPSA onto a continuous roll of siliconized release liner. This adhesive-coated liner is then cut and applied to the bag flap, creating the familiar "peel-and-seal" closure.
Direct Application: In some systems, the adhesive is applied directly to the plastic flap before a release liner is placed over it.
This seamless integration eliminates manual steps, reduces labor costs, and dramatically increases throughput.
Consistent sealing performance depends on applying the exact amount of adhesive every time. HMPSA systems use highly engineered applicators to achieve this.
Slot Die Nozzles: These are ideal for creating a uniform, continuous strip of adhesive with sharp, clean edges. They provide excellent control over the coat weight, measured in grams per square meter (GSM), which is critical for strong seals and label attachment.
-
For applications requiring broader coverage or a patterned application, spray systems can be used. They offer flexibility but may require more careful calibration to avoid overspray.
This precision ensures that every bag meets security standards without wasting expensive adhesive.
Modern bag-making machines can operate at incredible speeds, often producing over 200 bags per minute. The adhesive system must keep pace. HMPSA is perfect for this, as it has a specific "open time"—the window during which the adhesive remains hot and tacky enough to form a bond. The dispensing system is synchronized with the machine's speed to ensure the adhesive is applied and the flap is sealed within this optimal window, guaranteeing a perfect bond even at maximum production rates.
While highly efficient, an HMPSA Machine Line demands proper maintenance to prevent downtime. The "clean-melt" requirement is paramount. Using high-quality, thermally stable HMPSA pillows is the first step. Regular system purges, filter checks, and nozzle cleaning are essential to prevent the buildup of char and contaminants that can lead to clogging. Proactive maintenance ensures the system runs smoothly, minimizing unexpected stops that can cripple production targets.
Choosing the right adhesive system is a strategic decision that impacts everything from material costs to brand reputation. Moving beyond a simple price-per-kilogram comparison reveals why HMPSA offers a superior total value proposition compared to older solvent- or water-based technologies.
| Decision Criterion | HMPSA (Hot Melt Pressure-Sensitive) | Traditional Adhesives (Solvent/Water-Based) |
|---|---|---|
| Material Compatibility | Excellent adhesion to low-surface-energy plastics (LDPE, co-ex PE), recycled content, and many biodegradable films (PLA/PBAT blends). | Poor wetting and adhesion on non-porous plastics. Often requires surface treatment (corona) to work, adding cost and complexity. Ineffective on many recycled materials. |
| Security Requirements | Forms an immediate, aggressive bond. Creates a "fiber-tearing" or "film-tearing" bond that provides clear tamper evidence. Formulations can be permanent or removable. | Requires curing or drying time to build strength, creating a production bottleneck. Bonds can be weaker and more susceptible to temperature fluctuations. |
| Regulatory Compliance | 100% solids, zero Volatile Organic Compounds (VOCs). Specific grades are available that meet strict food-contact standards like FDA and REACH regulations. | Solvent-based systems release high levels of VOCs, creating workplace hazards and environmental compliance issues. Water-based systems are better but can struggle with performance. |
| Total Cost of Ownership (TCO) | Higher initial cost per kilogram but lower overall cost due to higher yield, no waste (100% solids), lower energy use (no drying ovens), and significantly higher production speeds. | Lower cost per kilogram but higher TCO due to energy costs for drying/curing, slower line speeds, higher scrap rates, and costs associated with VOC abatement equipment. |
Not all applications are the same. A courier bag's main seal must be permanent and tamper-evident. However, a return label or a promotional sticker applied to the bag might need to be removable. HMPSA chemistry is versatile, allowing for formulations that cater to both needs. A "permanent" HMPSA will have high peel and shear strength, while a "removable" version will have lower peel strength, allowing it to be removed cleanly without leaving residue.
Transitioning to or optimizing an HMPSA system involves navigating potential challenges. Awareness of these issues and proactive planning can ensure a smooth and successful implementation.
HMPSA performance can be sensitive to the ambient environment of the production facility. High humidity can introduce moisture that affects bond strength, while significant temperature fluctuations can alter the adhesive's open time and tack.
Best Practice: Maintain a climate-controlled production environment where possible. Calibrate machine settings (temperature, pressure) at the start of each shift to account for any changes.
The rise of recycled content in plastic films introduces variability. Different batches of recycled PE can have inconsistent surface energy or contain contaminants. This can lead to "ghosting," where the adhesive transfers to the release liner instead of staying on the bag flap.
Common Mistake: Assuming one adhesive formulation works for all film types.
Best Practice: Work with your adhesive supplier to test and qualify specific formulations for your recycled films. Implement rigorous incoming quality control for your film supply.

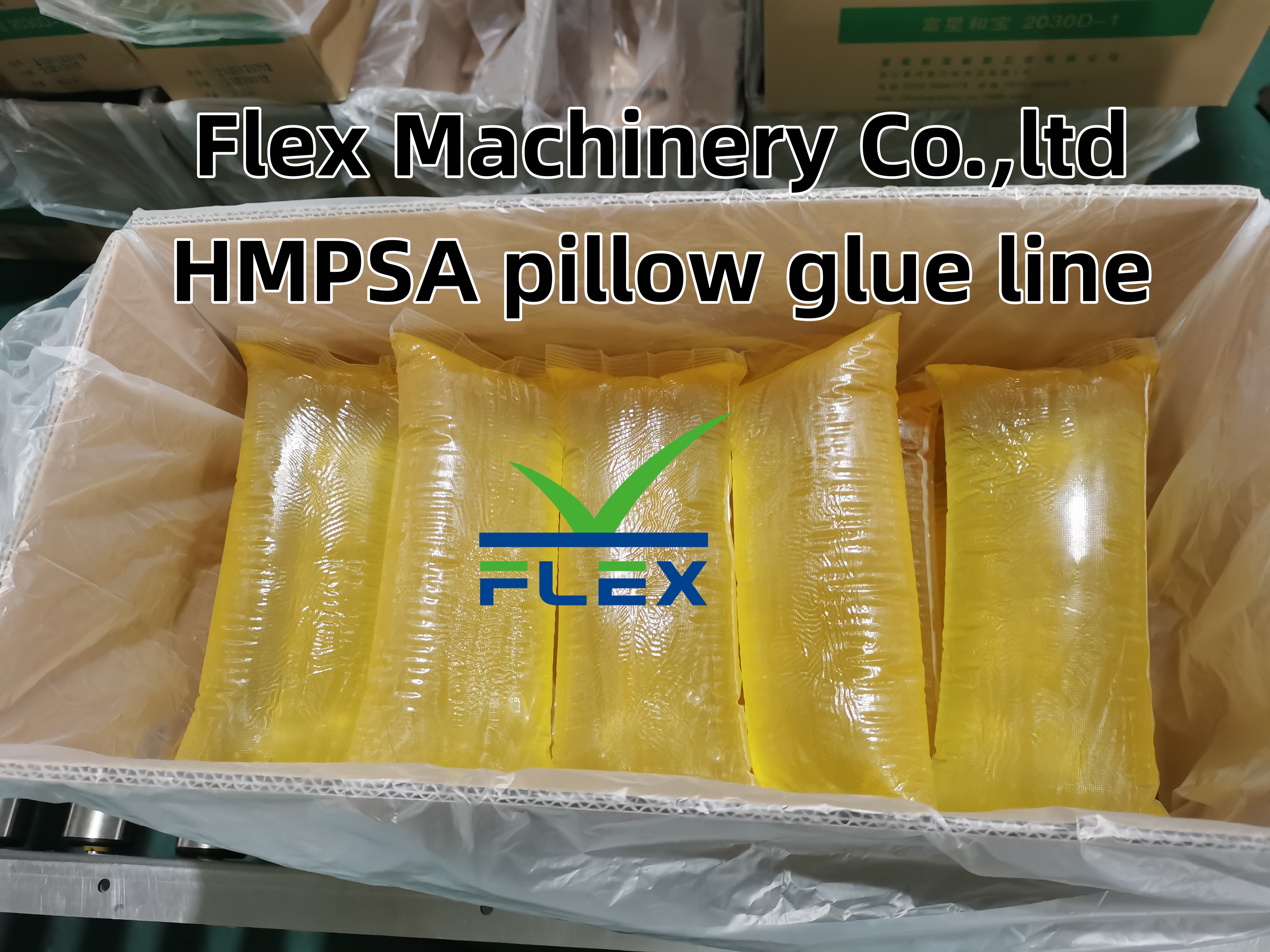

HMPSA pillows are solid at room temperature but can be susceptible to "blocking"—fusing together—if stored improperly. Exposure to high heat or direct sunlight can cause the pillows to soften and stick, making them difficult to handle and feed into the melting tank.
Best Practice: Store HMPSA pillows in a cool, dry place away from direct heat sources. Follow a "first-in, first-out" (FIFO) inventory system to ensure you are always using the freshest material.
Even in a well-run operation, issues can arise. Two of the most common are:
Label Flagging: This occurs when the edge of a label lifts off the surface. It is often caused by insufficient pressure during application or an incorrect adhesive temperature.
Adhesive Bleed: This is when excess adhesive oozes out from under the seal or label edge. It is typically caused by excessive application pressure or a coat weight that is too high.
Solving these requires methodical troubleshooting. Calibrating the application pressure, adjusting the melt tank and nozzle temperatures, and verifying the coat weight are the first steps to resolving these common production headaches.
Investing in an HMPSA Machine Line is a long-term commitment. Selecting the right system and vendor partner is crucial for maximizing ROI and future-proofing your operations.
Your production needs today may not be your needs in five years. Look for modular machine configurations that can grow with your business. Can you add more applicator heads? Can the melt tank capacity be upgraded? A scalable system prevents you from having to make another large capital investment as your volume increases.
HMPSA systems can range from relatively simple setups to fully automated lines. Consider your current labor resources and future goals.
Manual Feeding: Operators manually load HMPSA pillows into the melt tank.
Automatic Feeding: Hopper systems automatically feed the tank, reducing labor and ensuring a constant supply of molten adhesive.
Integrated Robotics: For complex tasks like precise label attachment on multiple package sizes, fully integrated robotic pick-and-place systems offer the highest level of speed and accuracy.
The ideal vendor is more than just an equipment supplier. Look for a partner who offers holistic support. They should have deep expertise in both the mechanical engineering of the dispensing hardware and the chemical science behind the adhesive formulations. A good partner can help you troubleshoot process issues, recommend the right adhesive for a new substrate, and provide timely technical support and spare parts.
Never commit to a full-scale rollout without rigorous testing. The most important test is a "peel-and-seal" evaluation that mimics real-world conditions. Prepare sample bags using the proposed machine and adhesive, then subject them to transit simulations. This includes vibration tests, extreme temperature cycles (hot and cold), and humidity exposure. Only after the seals and labels have proven their integrity in these tests should you proceed with full implementation.
Hot Melt Pressure-Sensitive Adhesive has definitively emerged as the industry standard for high-speed, secure courier packaging. Its ability to form instant, tamper-evident bonds on difficult plastic substrates addresses the core needs of the modern logistics industry. By eliminating drying times, reducing waste, and cutting energy consumption, HMPSA offers a clear path to enhanced operational efficiency. The long-term return on investment from transitioning to an automated HMPSA Pillow glue machine system is compelling, driven by higher throughput and lower total cost of ownership. For manufacturers aiming to balance the demands of sustainability, security, and speed, adopting a well-integrated HMPSA solution is no longer just an option—it is a strategic necessity.
A: The ideal temperature typically falls between 150°C and 180°C (300°F to 355°F). The exact setting depends on the specific adhesive formulation and line speed. Operating above the recommended range risks thermal degradation (charring), which can clog nozzles and reduce performance. Operating too low results in high viscosity, poor wetting, and a weak bond.
A: Yes, but it requires careful selection. Biodegradable films made from PLA/PBAT blends have different surface properties than traditional PE. Specialized HMPSA formulations are designed to achieve aggressive adhesion on these sustainable substrates. It is crucial to conduct thorough testing with your film supplier and adhesive partner to ensure compatibility and bond strength.
A: It reduces waste in two key ways. First, HMPSA is 100% solid material, meaning there are no solvents or water to evaporate, so everything you purchase is used in the final product. Second, the precision "start-stop" capability of modern dispensing nozzles ensures adhesive is only applied exactly where needed, eliminating overspray and edge bleed, which minimizes material consumption.
A: Rubber-based HMPSA is generally more cost-effective and offers very high initial tack, making it excellent for general-purpose indoor labels. Acrylic-based HMPSA, while more expensive, provides superior resistance to UV light, oxidation, and temperature extremes. This makes it the preferred choice for labels that require long-term durability or will be exposed to outdoor conditions.
A: "Stringing," or the formation of fine adhesive filaments, is often caused by the adhesive being too cool or the nozzle cut-off timing being incorrect. To fix it, try slightly increasing the nozzle temperature to lower the adhesive's viscosity. You can also adjust the machine's air pressure and timing for the nozzle's cut-off mechanism to ensure a sharp, clean break in the adhesive stream after each application.
