Manufacturing specialized hair clips and brooches demands more than just basic off-the-shelf glue. These intricate accessories require precise, high-tack adhesive solutions. They must bond diverse substrates like metal, plastic, fabric, and EVA foam. The bond cannot fail under daily mechanical stress. Relying on generic glue sticks often leads to inconsistent bonding. It creates assembly line bottlenecks and frustrating product returns. For high-volume accessory manufacturers, transitioning away from outsourced adhesives remains a strategic game-changer. Formulating and extruding proprietary EVA blends in-house ensures rigorous quality control. It stabilizes your supply chains and significantly reduces long-term unit production expenses.

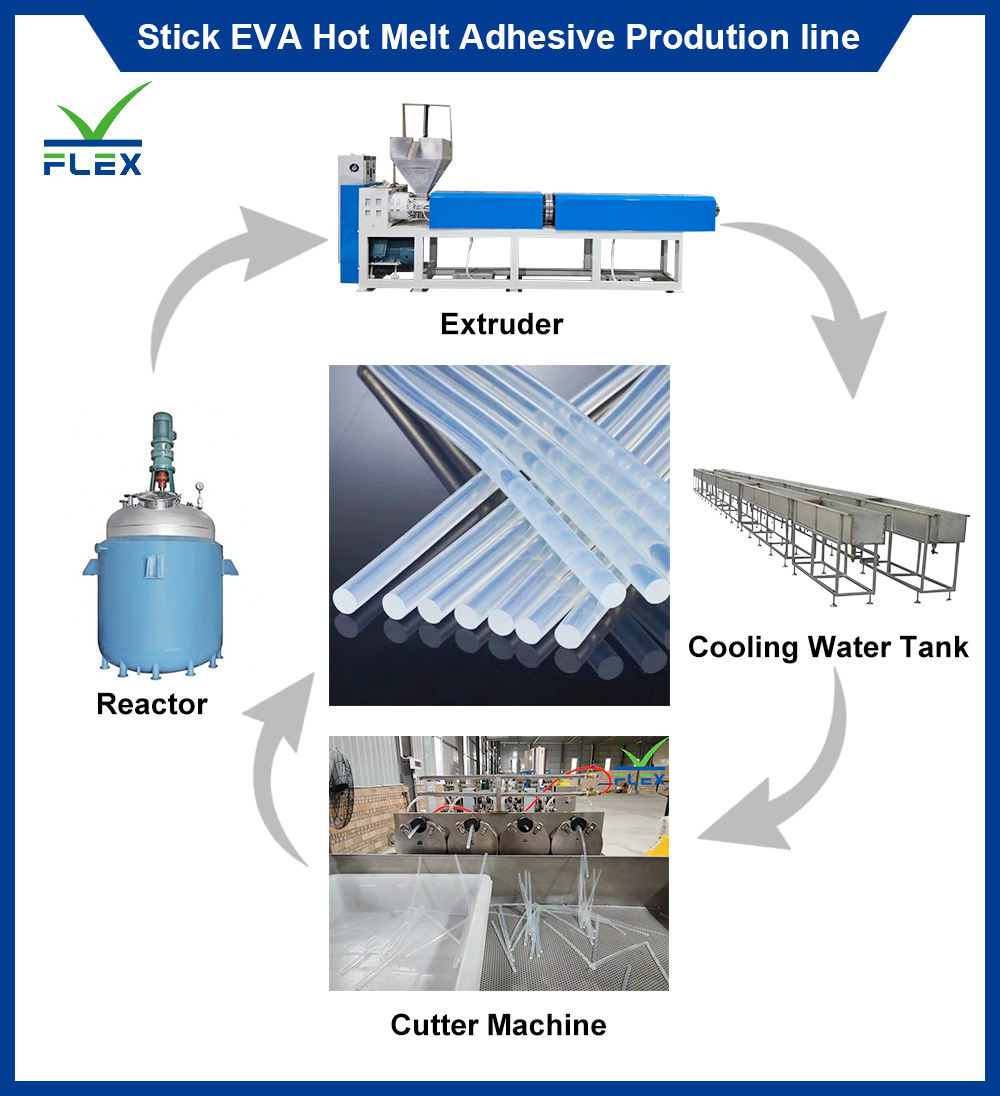

This comprehensive guide breaks down the critical machinery needed for a complete, integrated production line. We evaluate the core systems governing formulation, extrusion, and cutting processes. You will learn exactly how to specify equipment properly. This helps your production managers and procurement teams guarantee consistent, commercial-grade adhesive output every single time.
Achieving the exact tack and open-time required for hair clip assembly begins in the EVA stick hot melt adhesive Reactor, where temperature control prevents polymer degradation.
Extrusion consistency directly impacts assembly line efficiency; variations in stick diameter cause applicator gun jamming and workflow bottlenecks.
High-speed, servo-driven cutters are mandatory to maintain length tolerances (±1mm) at industrial production speeds.
Hair clips and brooches experience constant daily flex. They endure severe shear stress and rapid temperature fluctuations. Generic EVA sticks usually fail to bridge the difficult gap. They struggle to bond smooth metal alloys to highly porous fabrics. They often harden too quickly. Sometimes they simply lack the necessary tack.
Bringing production directly in-house unlocks complete control over your adhesive chemistry. You can customize the exact ratios of your materials. Operators mix Ethylene-Vinyl Acetate (EVA) resins easily. They add specific tackifying resins like rosin or hydrocarbon. They blend in industrial waxes. This process allows you to manipulate melt viscosity perfectly. You also control the setting times for different accessory lines.
You must evaluate a production line based on strict success criteria. We look for three main operational benchmarks:
Homogenous Mixing: The system must maintain consistent blending without any air entrapment.
Dimensional Stability: The line must extrude sticks without causing dimensional fluctuation.
Operational Uptime: The machinery should operate efficiently with minimal downtime during complex material changeovers.

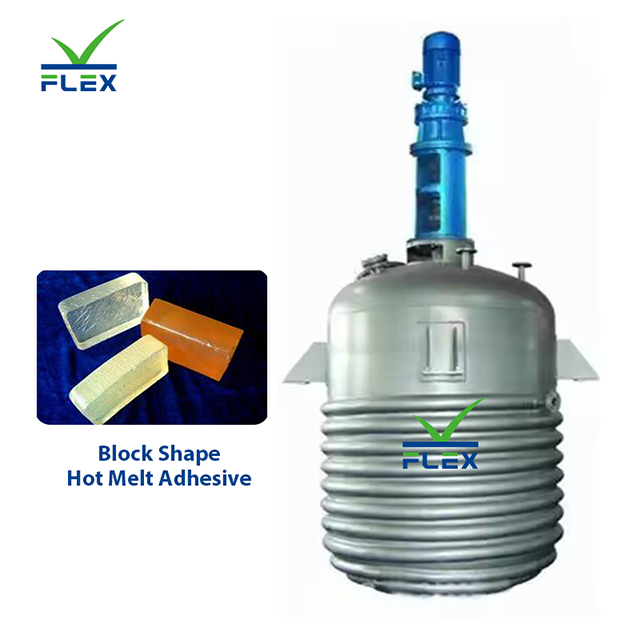

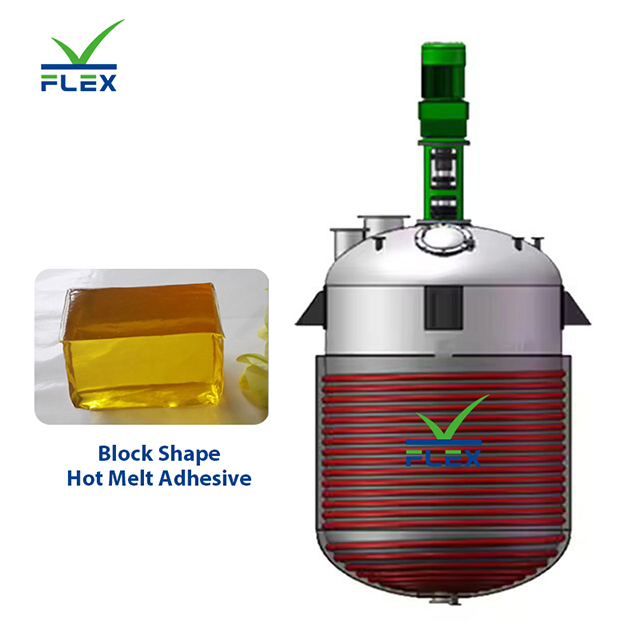

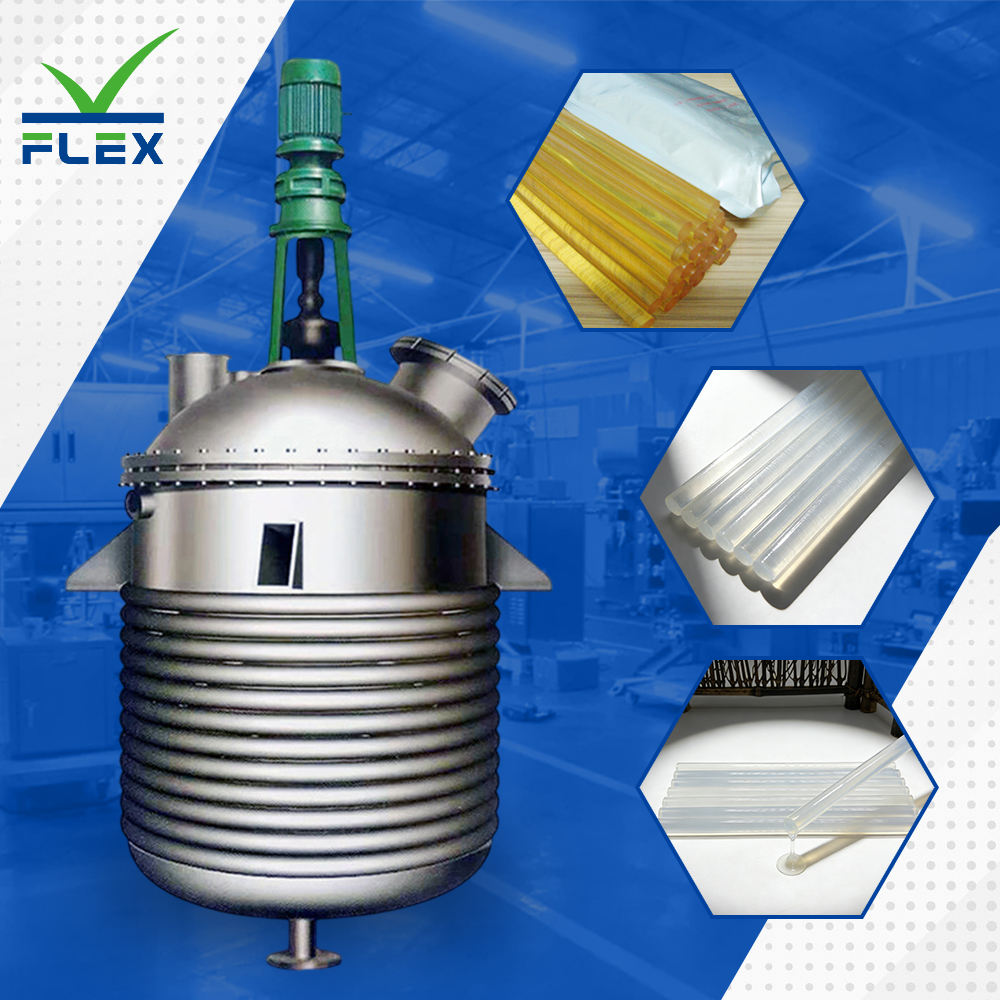

The reactor serves as the absolute beating heart of your compounding process. Here, operators melt solid resins, tackifiers, and waxes. They blend these raw materials into a highly uniform fluid state. Achieving this precision relies heavily on choosing an industrial-grade EVA stick hot melt adhesive Reactor.
You must assess several critical evaluation dimensions when selecting this equipment. The heating mechanism dictates the quality of your final product. You should compare thermal oil jacket heating against direct electric heating. Thermal oil provides highly uniform heat distribution. This prevents localized burning inside the vessel. Burning causes severe discoloration. Clear or transparent accessory glues require pristine color profiles.
Chart: Heating Mechanism Comparison | |||
Heating Method | Heat Distribution | Risk of Discoloration | Best Application |
|---|---|---|---|
Thermal Oil Jacket | Highly uniform across vessel walls | Very low | Clear and transparent glue sticks |
Direct Electric | Prone to localized hot spots | Moderate to High | Opaque or deeply colored glue sticks |
Agitation and mixing capabilities are equally important. Look for variable-speed, heavy-duty anchor agitators. High-viscosity blends easily adhere to reactor walls. Therefore, you need thick Teflon (PTFE) scrapers attached to the agitator blades. These scrapers constantly clean the inner walls. They ensure no dead zones form during the compounding cycle.
Vacuum capabilities represent an essential feature. Mixing generates trapped air rapidly. Vacuum defoaming extracts this trapped air during the blending phase. This step ensures the final glue stick remains completely solid. It prevents internal bubbles from forming. Internal bubbles cause frustrating spitting in applicator guns later.

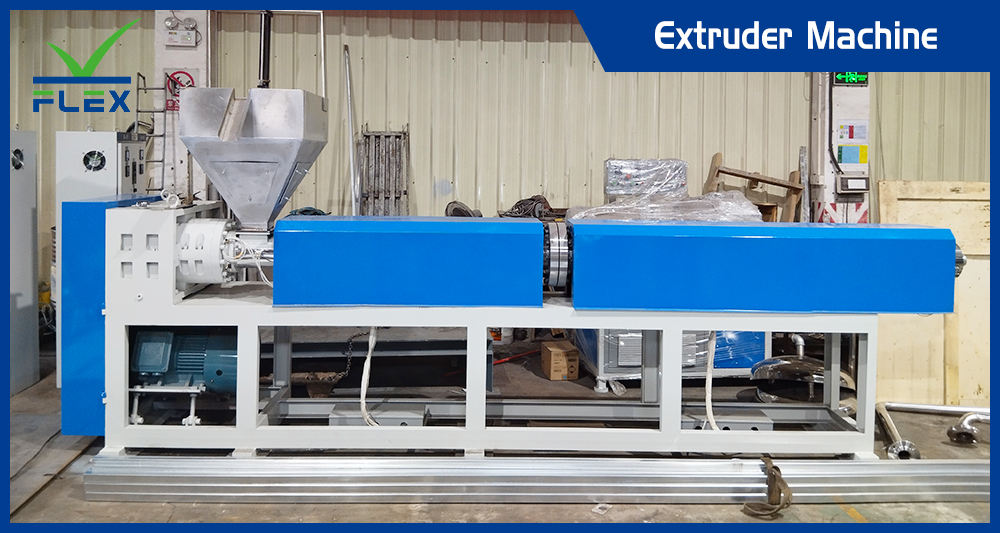

The extruder pushes the melted compound out into its final shape. The extruder screw design and geometry must be highly optimized. Standard plastic screws will not work for hot melt compounds. You need stable pressure during the entire push. Manufacturers rely on single-screw extruders as the industry standard. They typically feature specific L/D (length-to-diameter) ratios. Ratios between 20:1 and 28:1 provide the best results.
Your extruder barrel requires multi-zone temperature control. Ensure the barrel features completely independent heating and cooling zones. These zones precisely control the melt viscosity. They adjust the temperature right before the material enters the die head. This prevents die swell and maintains accurate sizing.
Cooling trough efficiency dictates the final shape of your product. If you fail to cool the stick properly, problems arise. Evaluate the required length of your stainless steel water bath.
Water Bath Length: Match the trough length to your targeted output speeds. Insufficient cooling leads directly to oval-shaped sticks. The pulling phase deforms the soft core.
Chiller Integration: A closed-loop industrial chiller remains completely non-negotiable. It maintains constant water temperatures. Fluctuating ambient factory conditions will ruin your production tolerances without it.
Once the glue stick cools, you must handle it carefully. Traction and haul-off units pull the continuous strand forward. These units must utilize synchronous caterpillar belt systems. Roller grips often pinch and distort the round profile. Caterpillar belts grip the cooled glue stick firmly. They apply even pressure without deforming the fragile surface.
You must evaluate cutter technologies thoroughly. Consider servo-driven rotary cutters against traditional pneumatic cutters. Servo-driven models offer significantly higher RPMs. They deliver precise length control perfectly synchronized with the haul-off speed.
Table: Cutter Technology Evaluation | ||
Feature | Servo-Driven Rotary Cutters | Pneumatic Cutters |
|---|---|---|
Speed Capabilities | Extremely high RPMs for fast lines | Limited by air cylinder reset times |
Length Precision | Exceptional (±1mm tolerance easily met) | Prone to drift at higher line speeds |
Maintenance Needs | Low (requires basic lubrication) | High (air leaks and seal failures) |
Ensure the equipment manufacturer explicitly guarantees strict length tolerances. You need a ±1mm tolerance at maximum line speed. This precision meets strict packaging requirements. It also ensures compatibility with standard industrial applicator guns. Automated packaging integration helps further. Consider shortlisting lines offering optional downstream integration. They handle automatic weighing, bagging, or boxing directly. This massively reduces manual labor requirements on your floor.
Deploying a complete line requires thorough facility planning. Assess your available floor space carefully. Continuous cooling troughs require massive linear footprints. They often span 10 to 20 meters in length. Verify your high-voltage power availability early. Confirm the structural load capacities of your factory floor before ordering heavy machinery.
Safety and compliance demand strict attention. Formulating hot melt adhesives releases specific Volatile Organic Compounds (VOCs). Ensure your reactor and extrusion areas feature robust exhaust hoods. They must comply strictly with local industrial emissions standards. Proper ventilation protects your operators from harmful fume inhalation.
Maintenance overheads can derail production if ignored. Filter blockages at the die head happen often. Reactor seal wear remains another common failure point. Evaluate your machinery vendors based on critical spare part availability. You will need replacement heating elements, thermocouples, and seals regularly. Ensure the equipment allows easy physical access for routine cleaning tasks.
Never purchase a production line based solely on printed spec sheets. You must request a formal proof of concept. Require the vendor to run a physical test batch. Use your specific EVA and tackifier formulation for this test. This proves true mixing homogeneity. It verifies actual extrusion stability under realistic conditions.
Prioritize manufacturers offering comprehensive vendor support. Look for partners who provide on-site commissioning. They should deliver rigorous operator training programs. Focus this training specifically on temperature calibration. Operators must also learn how to troubleshoot common die swell issues independently.
Compile a highly detailed Request for Quotation (RFQ). Make this your actionable next step. Detail your desired hourly output clearly in kg/hr. Specify your required stick diameters precisely. Note whether you need 7mm or 11mm tooling. Clearly outline all physical factory constraints in your RFQ document.
A reliable accessory adhesive production line demands absolute mechanical harmony. Your reactor's mixing capabilities must align perfectly with your extruder's pressure stability. The cutter's precision must match the haul-off speed seamlessly. A failure in one stage compromises the entire glue stick.
Investing in high-quality compounding infrastructure eliminates bonding failures directly. You prevent premature breakage in the final hair clip or brooch product. Quality cooling systems stop dimensional defects entirely. Proper execution protects your brand reputation in the market. It drives long-term manufacturing efficiency and solidifies your production independence.
A: Capacities typically range from 50 kg/hr for entry-level setups to over 300 kg/hr for automated lines. The exact output remains highly dependent on the extruder screw diameter and your total cooling bath length.
A: Yes, but thorough cleaning and purging are required between batches. Many high-volume manufacturers use dedicated reactors for distinct formulas. This prevents accidental color bleeding or particulate contamination across different adhesive lines.
A: This is usually caused by insufficient cooling before the haul-off unit grips the stick. Uneven pulling tension also causes stretching. Extending the water bath or upgrading the chiller unit typically resolves this specific issue.
A: Most commercial assembly lines use standard 11mm (approx. 7/16 inch) or 7mm (approx. 5/16 inch) diameters. Producing these dimensions requires precise die head tooling to ensure compatibility with standard industrial glue guns.
