High Degree of Automation

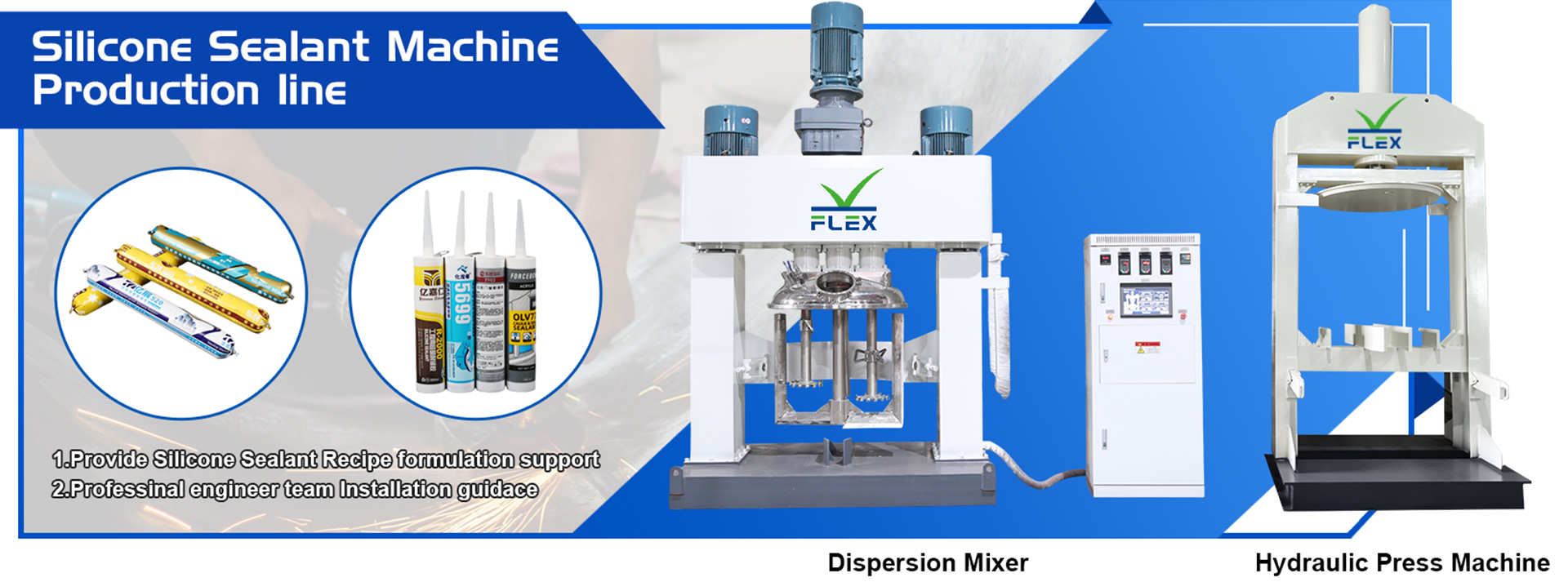

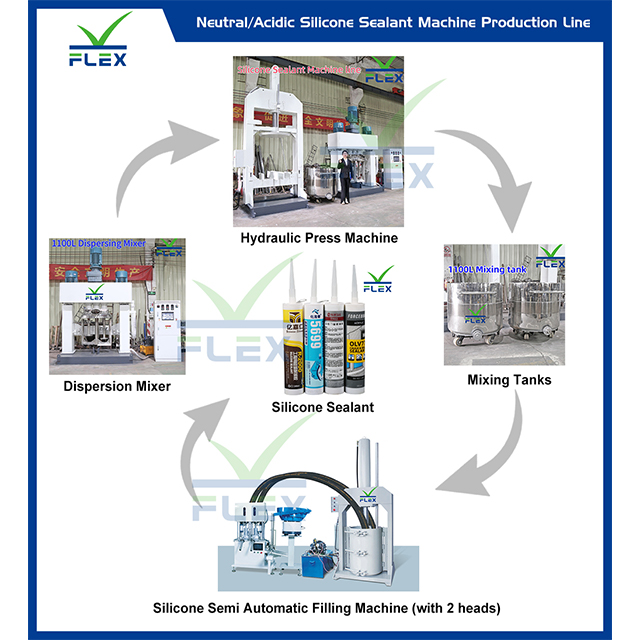

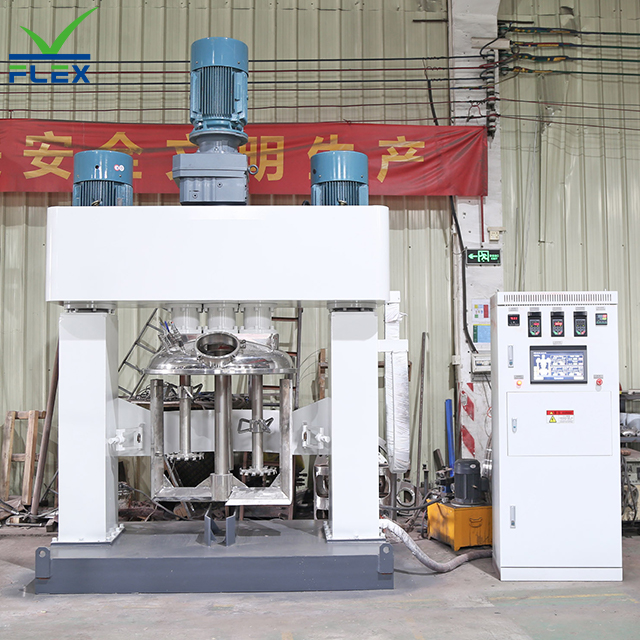

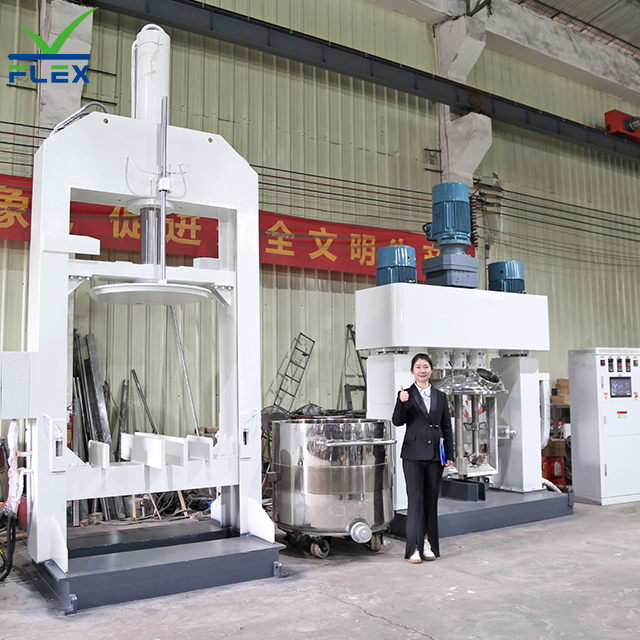

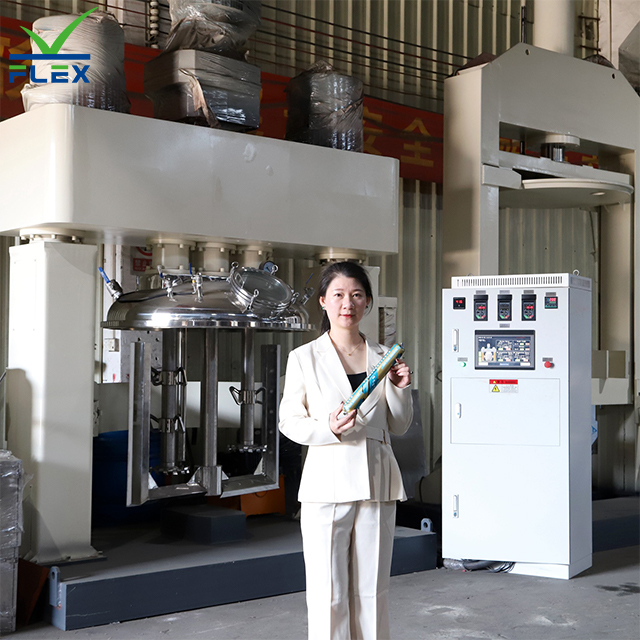

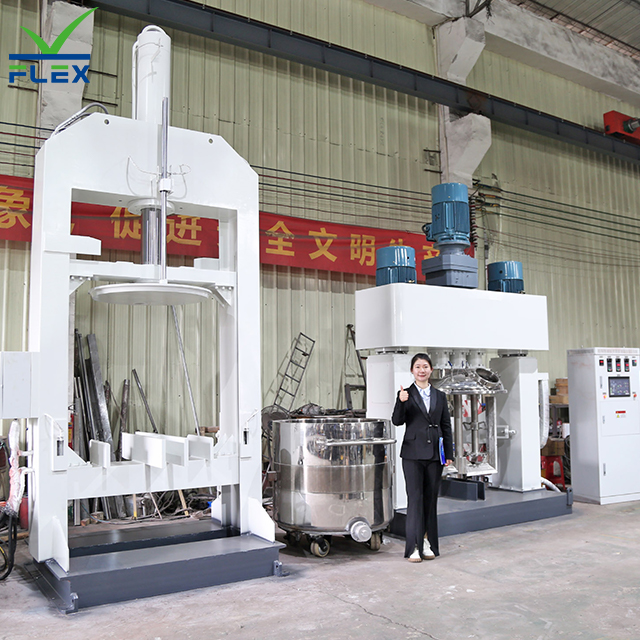

This automatic silicone sealant production line realizes fully automatic operation from raw material feeding, dispersing, vacuum mixing to quantitative filling. Controlled by a PLC system, it minimizes manual intervention, ensures stable production consistency, and significantly reduces labor costs for industrial sealant manufacturing.
Provide Formula Technology Support
FLEX Machinery Co., Ltd. not only supplies customers with high-quality and cost-effective silicone sealant machine lines, but also offers professional formula technology support. We provide tailored formula solutions for various sealant products, such as neutral silicone sealant, acidic silicone sealant, acrylic silicone sealant, etc., helping clients quickly launch stable and competitive products while reducing R&D costs and cycle.
Stable Vacuum Mixing System
Equipped with a professional vacuum system, the line ensures complete defoaming during the mixing process. It effectively eliminates air bubbles inside the sealant, guaranteeing dense texture and excellent bonding performance. This core technology is critical for producing high-quality neutral, acidic and structural silicone sealants.
Precise Cooling & Temperature Control
The dedicated cooling system maintains real-time, stable production temperature. It prevents material deterioration caused by overheating, ensures uniform dispersion of raw materials, and improves product quality consistency. This design also greatly extends the service life of the entire silicone sealant machine line.
High Efficiency & Wide Adaptability

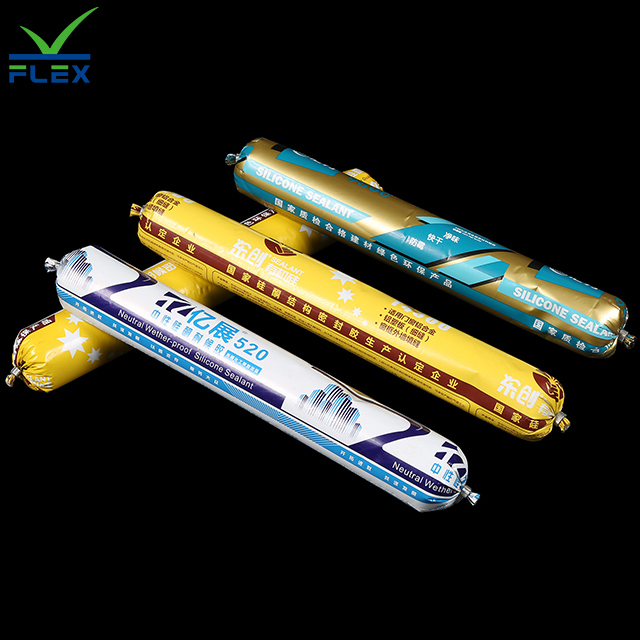

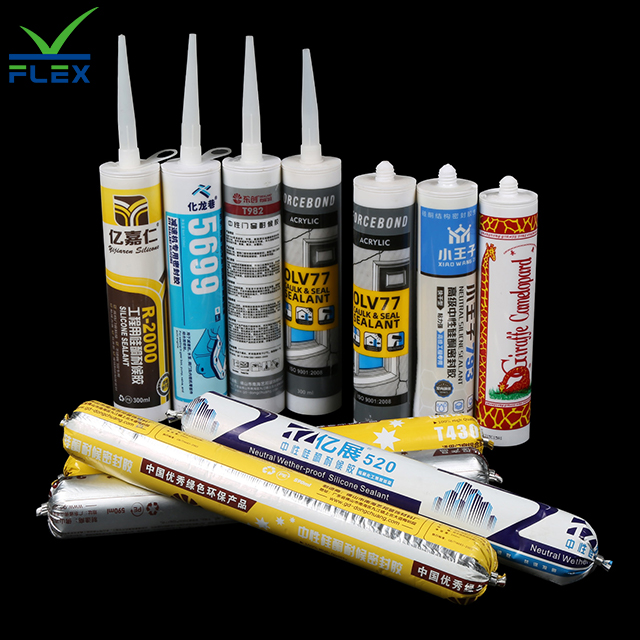

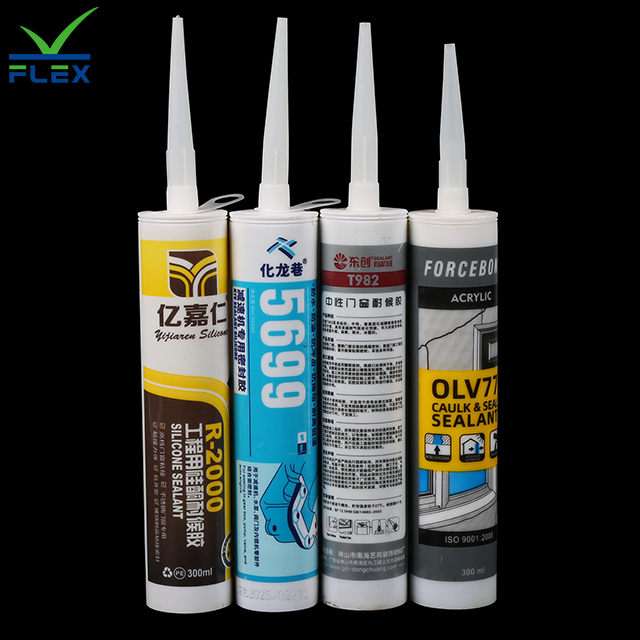

This high-efficiency sealant making line supports multiple production capacities and various packaging types, including cartridges, soft tubes and buckets. It features stable operation, low energy consumption and easy maintenance, making it an ideal solution for large-scale and standardized industrial sealant production.

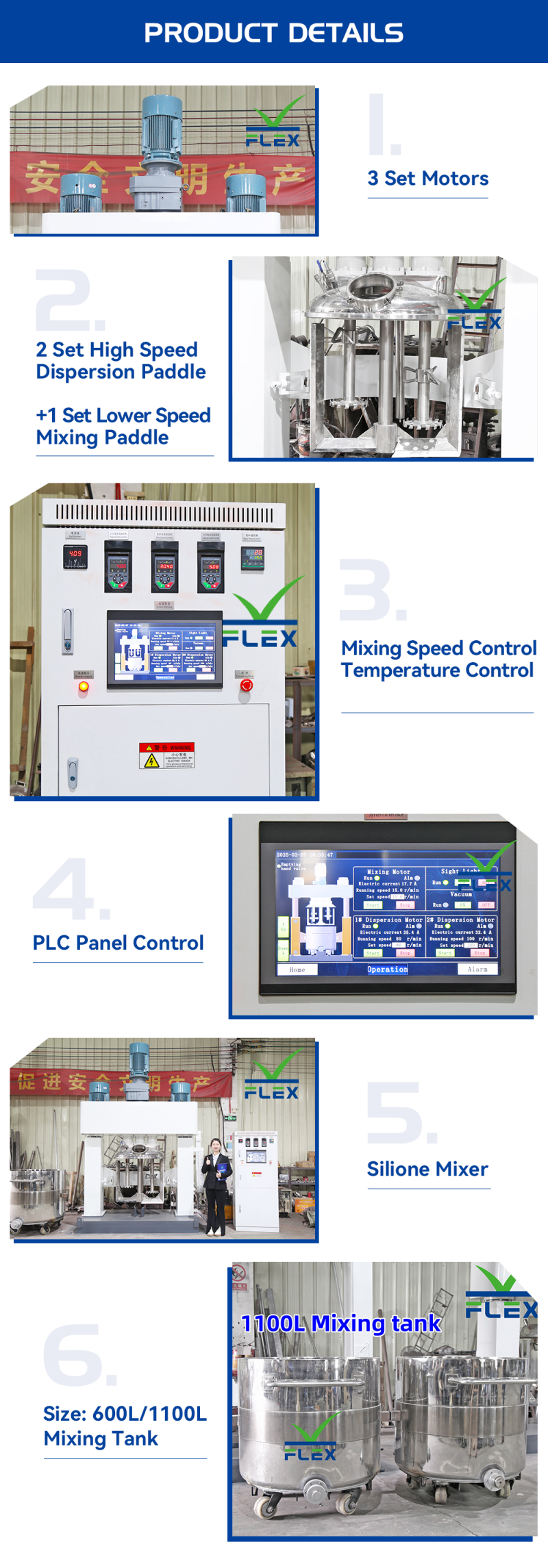

Product Parameter | ||
No. | Parameter | Specification |

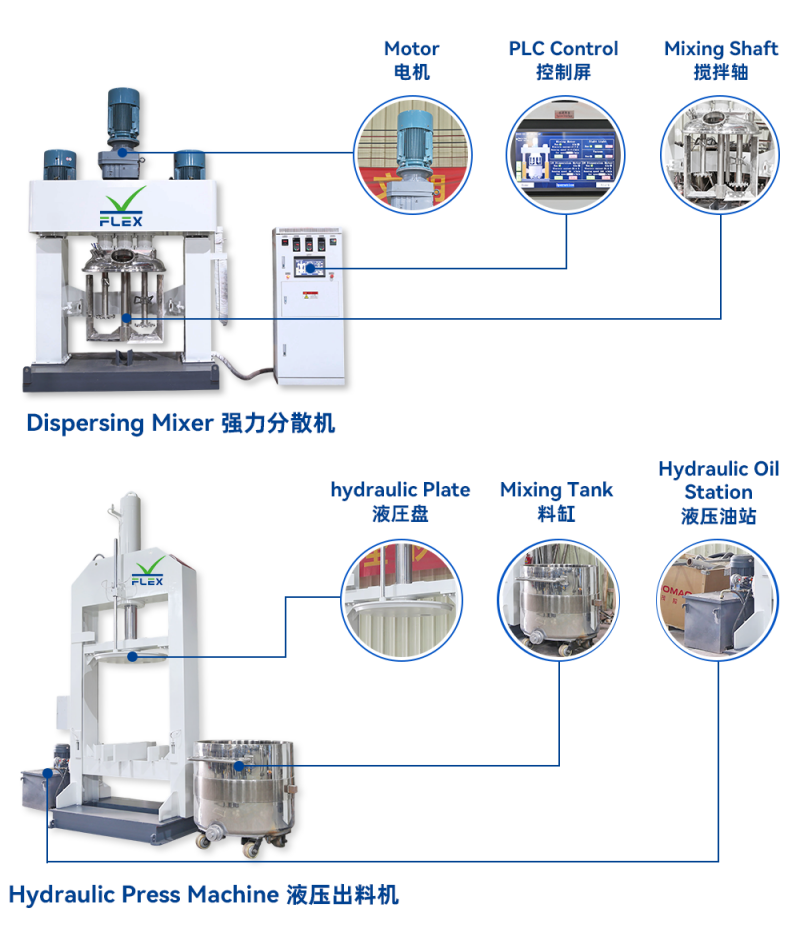

| 1 | Product name | Silicone Sealant Mixer/Strong dispersing Mixer |
| 2 | Production Capacity | 300L/600L/1100L/2100L/3100L |
| 3 | Motor Power | 5.5KW-7.5KW-11KW-15KW-22KW-37KW-45KW-55KW |
| 4 | Motor Brand | Siemens Drive Motor/Wannan Motor/Jiangcheng Motor |
| 5 | Machine Material | SS304 Stainless Steel/Carton Steel |
| 6 | Heating and cooling method | The mixing tank with a jacket,can heating or cooling |
| 7 | Low Speed stirring | 0-30rpm/min |
| 8 | High-speed dispersion | 0-1000rpm/min |
| 9 | Application | Structural bonding and sealing of glass/stone/metal curtain walls; Sealing between doors/windows and walls. |
Building Curtain Wall & Facade
This line produces high-performance structural silicone sealants for curtain wall bonding and facade sealing. These sealants offer excellent weather resistance and adhesion, ensuring long-term stability and safety for high-rise building exterior projects.

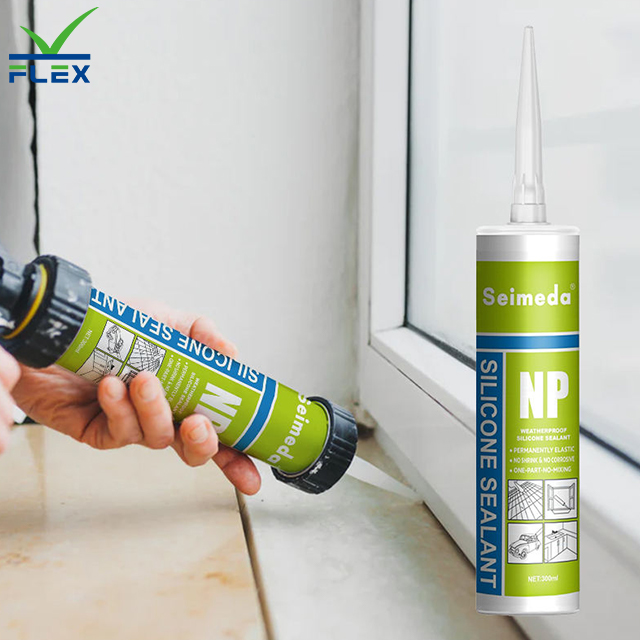

Door & Window Sealing

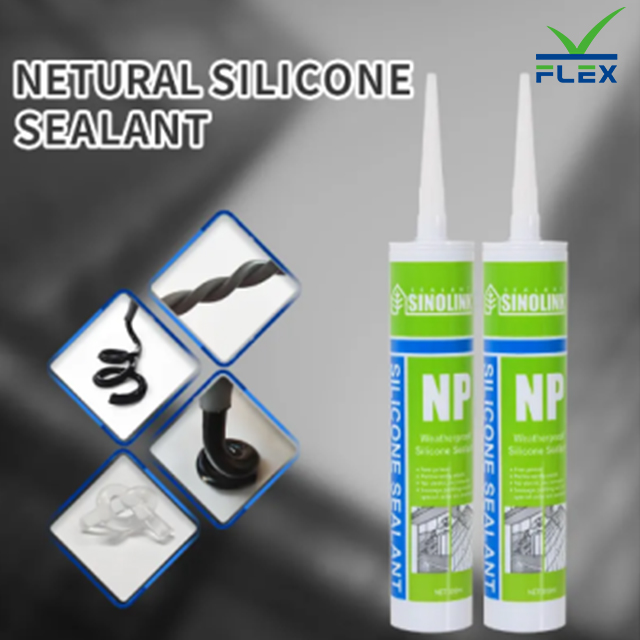

It specializes in manufacturing neutral silicone sealants for door and window frame sealing, gap filling and waterproofing. The sealants provide reliable airtightness, sound insulation and aging resistance, meeting the quality requirements of residential and commercial building door/window systems.
Automotive & Transportation Sector
It supports the production of automotive-grade silicone sealants for vehicle body sealing, windshield bonding, and electrical component insulation. These sealants offer strong vibration resistance and temperature stability, suitable for harsh automotive operating environments.
Industrial & Electronic Manufacturing
The line produces industrial silicone sealants for electronic device potting, pipeline sealing, and mechanical component bonding. With precise formula control, it ensures the sealants have good insulation, moisture-proofing, and chemical resistance for industrial applications.
Home Improvement & Daily Use
It manufactures acrylic and acidic silicone sealants for kitchen and bathroom sealing, tile grouting, and household maintenance. These products are easy to use, non-toxic, and durable, catering to the demands of the home improvement and DIY markets.
Pre-operation Preparation
First, check the electrical connections, vacuum degree, and cooling water circulation. Place raw materials into the feeding hopper according to the formula. Power on the system and set the target temperature and vacuum level via the PLC control panel. Ensure all safety guards are closed to prevent accidents.
Mixing & Processing
Start the dispersing mixer for high-speed dispersion, then switch to low-speed vacuum mixing. The integrated vacuum system will remove air bubbles automatically. Monitor the torque and temperature display closely; adjust parameters promptly if the material becomes too thick to ensure uniform mixing.
Filling & Completion
After mixing is complete, activate the hydraulic press and filling machine. Set the filling volume accurately to match cartridges, tubes, or buckets. Once finished, clean the nozzles and pipelines promptly with solvent to prevent material residue and curing.
FAQ
1. What is the output capacity of your production line?
Our line has multiple models available, with hourly output ranging from 100kg to 1000kg. We can customize capacity according to your factory scale and daily production demand for silicone sealant.
2. Is the machine easy to operate?
Yes. The line adopts PLC touch screen control with simple interface. We provide detailed operation manual, video training and on-site guidance, so workers can master it in 1-2 days.
3. Do you offer formula and technical support?
We provide complete formula support for neutral, acidic, structural and weatherproof silicone sealants. Our engineers offer formula adjustment, production optimization and after-sales service throughout the process.
4. How about delivery time and warranty?
Normal delivery time is 20-30 working days. We offer 12-month whole machine warranty and lifetime maintenance. Core parts are guaranteed for long-term use with fast supply.
5. Can you install and train abroad?
Yes. Our engineers can go to your country for installation, commissioning and on-site operation training. We also provide long-distance remote guidance to solve production problems quickly.
 |  |  |  |
 |  |  |  |
